Description

Price

1

Radiator, left 19

50535007100

$205.13

2

Radiator right

79535008100

$231.22

3

RADIATOR CAP 1,8 BAR

79035016000

$28.51

4

Y-hose cpl.

79135071044

$40.48

5

Hose clip 22-33

79135031000

$2.05

6

HOSE CLAMP NORMA 14/24

42013037400

$2.05

7

CLAMP YDNAC 10096F (9,6MM)

59007017000

$2.05

8

ANGLE PIECE '97

50303089000

$5.23

9

PVC-HOSE 6X9

50335030001

Unavailable

10

Preformed Hose with Y-Adapter

79135025033

$51.70

12

Preformed hose

79335024000

$19.16

13

threaded bushing

79135073000

$13.27

14

radiator protector le/ri black

7913503400030

$17.85

15

COLLAR SCREW M6X12 TX

0024060123

$1.49

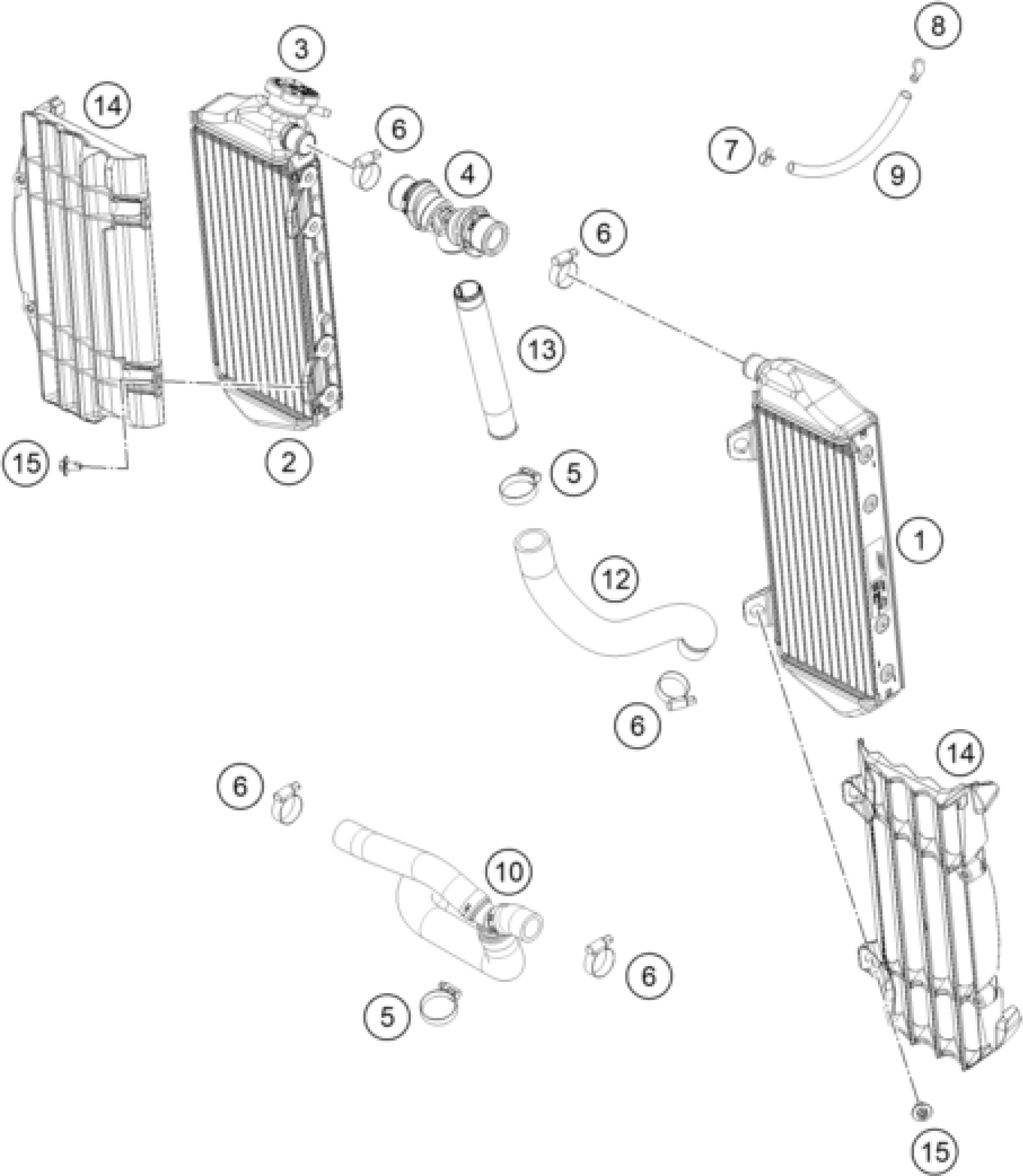

KTM 350 XC-F 2020 COOLING SYSTEM Diagram

Radiator, left 19

Radiator right

RADIATOR CAP 1,8 BAR

Y-hose cpl.

Hose clip 22-33

HOSE CLAMP NORMA 14/24

CLAMP YDNAC 10096F (9,6MM)

ANGLE PIECE '97

PVC-HOSE 6X9

Preformed Hose with Y-Adapter

Preformed hose

threaded bushing

radiator protector le/ri black

COLLAR SCREW M6X12 TX
