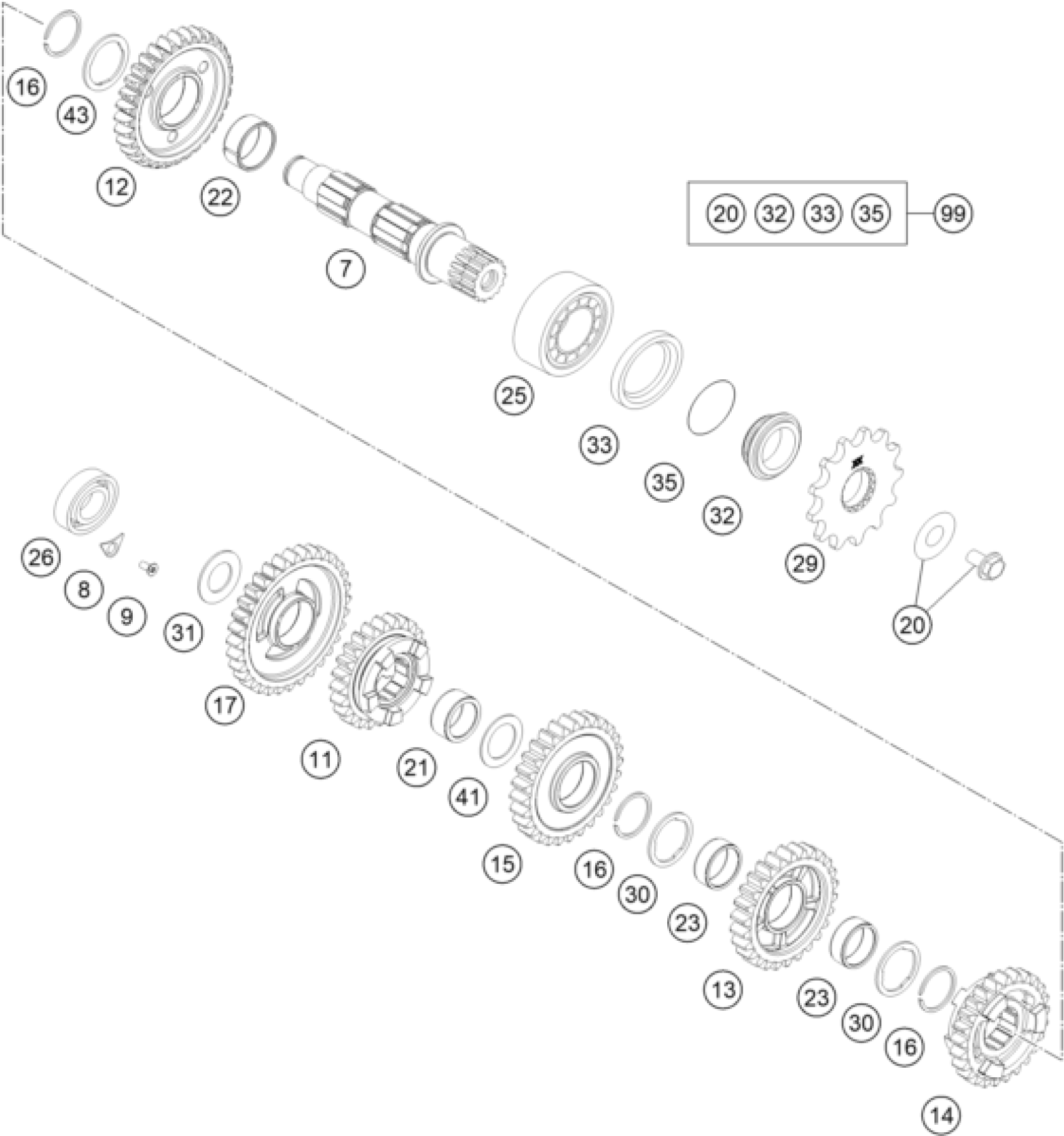

KTM 350 XC-F 2018 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

7

Output shaft

77233110100

$134.44

8

RETAINING PLATE F. CS BEARING

75030085000

$1.49

9

hex lobe countersunc screw M5x

0019050106S

$2.05

11

Sliding gear 6 th, Z=20

54833216100

$271.52

12

idler gear 2, Z=25

54833312100

$84.80

13

Idler gear 4.G, Z=23

54833214100

$116.77

14

Sliding gear 5th Z=22

54833215100

$93.96

15

Idler gear 3th, Z=25

54833213100

$123.22

16

CIRCLIP WS24

0417024000

$2.05

17

Idler Gear 1: Z=31

54833311100

$148.94

20

SCREW 10.9+SPRING WASHER

59033034044

$7.85

21

NEEDLE BEARING K 20X26X12

0405202612

$10.93

22

NEDDLE BEAR. K24X28X11,9 DIV.

0405242812

$7.28

23

NEEDLE BEAR.K 22X26X10 DIVIDED

0405222611

$11.68

25

cylindrical roller bearing NJ2

49030023000

$74.42

26

BALL BEARING 6203 JR2 C3

0625062035

$14.48

29

Sprocket 14-t

79233029014

$30.94

29

Sprocket 13-t

79233029013

Unavailable

30

STOP DISC 25X0,8X30X30X7H

54833043000

$5.23

31

STOP DISK 17,2X30X1,3

77233020000

$4.11

32

SPACER SLEEVE COUNTER

78133014000

$28.42

33

SHAFT SEAL RING 32X45X7 BSLNBR

0760324571

$5.23

41

STOP DISC 20,2X30X1

54833080000

$3.08

35

O-RING 25,12X1,78 NBR70

0770020220

$3.08

43

STOP DISC 25X31X1,5

54833044000

$5.23

99

COUNTER SHAFT REP.KIT 4 STROKE

00050000941

Unavailable
