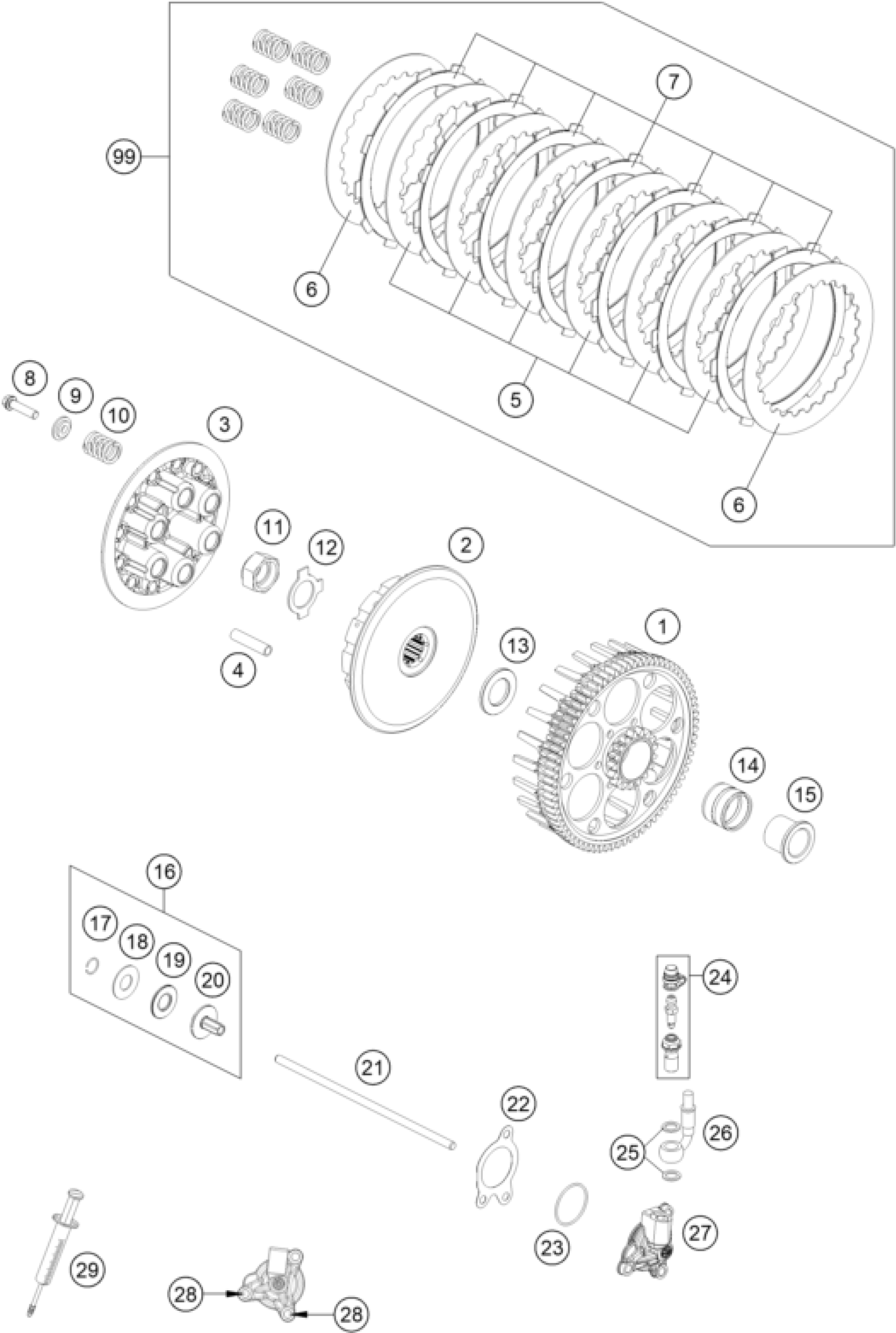

KTM 350 XC-F 2017 CLUTCH Diagram

CLUTCH CAGE SX

79232001073

$246.18

CLUTCH HUB

79232002000

$116.49

PRESSURE CAP

79232003000

$43.10

SLEEVE 7.95X35

79232004000

$3.08

INTERMEDIATE DISC 1,4MM 2002

59032010200

$10.93

INTERMEDIATE DISC 1MM 2002

59032010100

$9.81

LINING DISC 2MM 04

59032011100

$22.43

HH collar screw M6x25 TX30

0025060256

$3.08

SPRING RETAINER 6,2X12X18X3,6

59032006000

$2.05

CLUTCH SPRING

79232005000

$4.11

HEXAGON NUT M18X1,5

77232019000

$12.89

SHEET METAL LOCK

77232018000

$6.54

WASHER 21,8 X 37 X 3

77232009100

$8.59

NEEDLE BEARING K26X30X22ZW.KSE

56532095000

$23.83

INNER RING

77232015000

$20.66

PRESSURE PIECE CPL. 08

78032057044

$26.08

CIRCLIP DIN7993-RW12

0993012000

$3.08

AXIAL WASHER AS1226 12X26X1

54637098200

$5.23

AXIAL NEEDLE BEARING AXK 1226

54637097200

$10.18

PRESSURE PIECE

78032057000

$26.08

PUSH ROD

79232054000

$18.41

GASKET FOR OUTPUT CYLINDER

79232065000

$7.75

O-ring 30x1.5 NBR 70

0770300015

$2.05

BLEEDER SCREW CPL.

79032064000

$30.38

SEAL RING CU DIN7603- 8X12X1

0603082121

$3.08

CLUTCH PIPE

79232063000

$112.38

OUTPUT CYLINDER CPL.

79232061044

$187.65

HH collar screw M6x16 TX30

0025060166

$3.08

VENT INJEKTION HYDR. CLUTCH

50329050000

$75.26

CLUTCH KIT 350 SX-F

79232010010

$210.18
