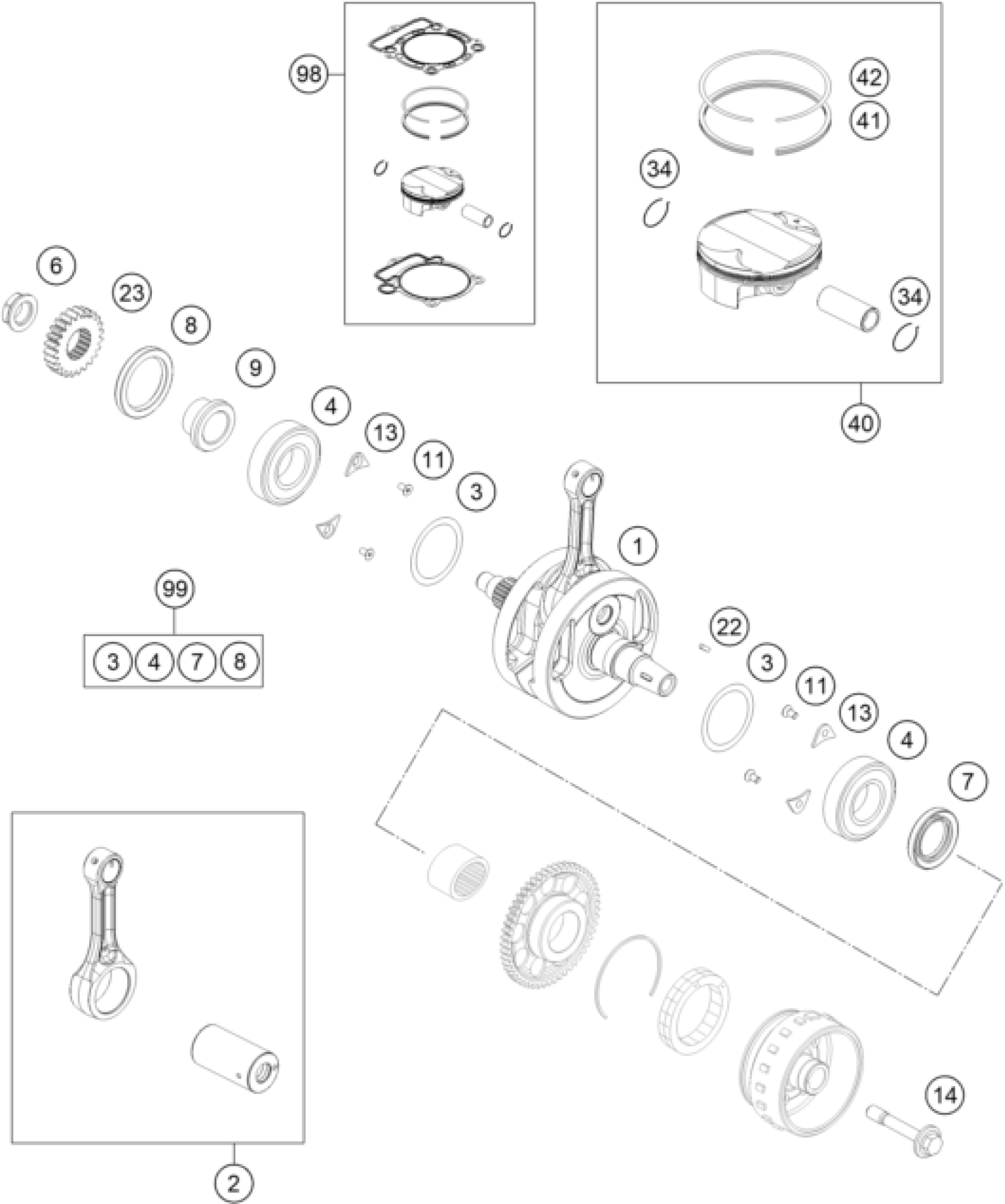

KTM 350 XC-F 2016 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

CRANKSHAFT CPL

79230018000

$1,026.72

2

CONNECTING ROD REPAIR KIT

79230015044

$533.88

3

THRUST WASHER 988ST 32X0,1

0988324510

Unavailable

3

THRUST WASHER 988ST 32X0,15

0988324515

Unavailable

3

THRUST WASHER 988ST 32X0,30

0988324530

Unavailable

4

BEARING NJ 206 ECP/HN3C4HVA624

77330082200

$93.87

6

NUT PRIMARY WHEEL

77230029000

$4.29

7

SHAFT SEAL RING A30X47X6 VITON

0760304760

$15.04

8

SHAFT SEAL RING A 40X55X6 V.

0760405561

$15.61

9

SPACER BUSHING PRIMARY GEAR

77232022000

$11.02

11

hex lobe countersunc screw M5x

0019050106S

$2.05

13

RETAINING PLATE F. CS BEARING

75030085000

$1.49

14

FLYWHEEL SCREW

77339010100

$5.60

22

WOODRUFF KEY DIN6888-3X3,7

0888030037

$2.05

23

PRIMARY GEAR 24T.

79232023024

$101.44

34

CIRCLIP PISTON PIN

79230274000

$19.71

40

PISTON I CPL. 350

79230207100 I

Unavailable

40

PISTON II CPL. 350

79230207100 II

Unavailable

41

SCRAPER RING 350

77230032100

$154.69

42

COMPRESSIONRING 350

77230030000

$42.72

98

PISTON KIT 350 SX-F GR. I

00050000231

Unavailable

98

PISTON KIT 350 SX-F GR. II

00050000232

Unavailable

99

CRANKSHAFT REP. KIT

00050002316

Unavailable
