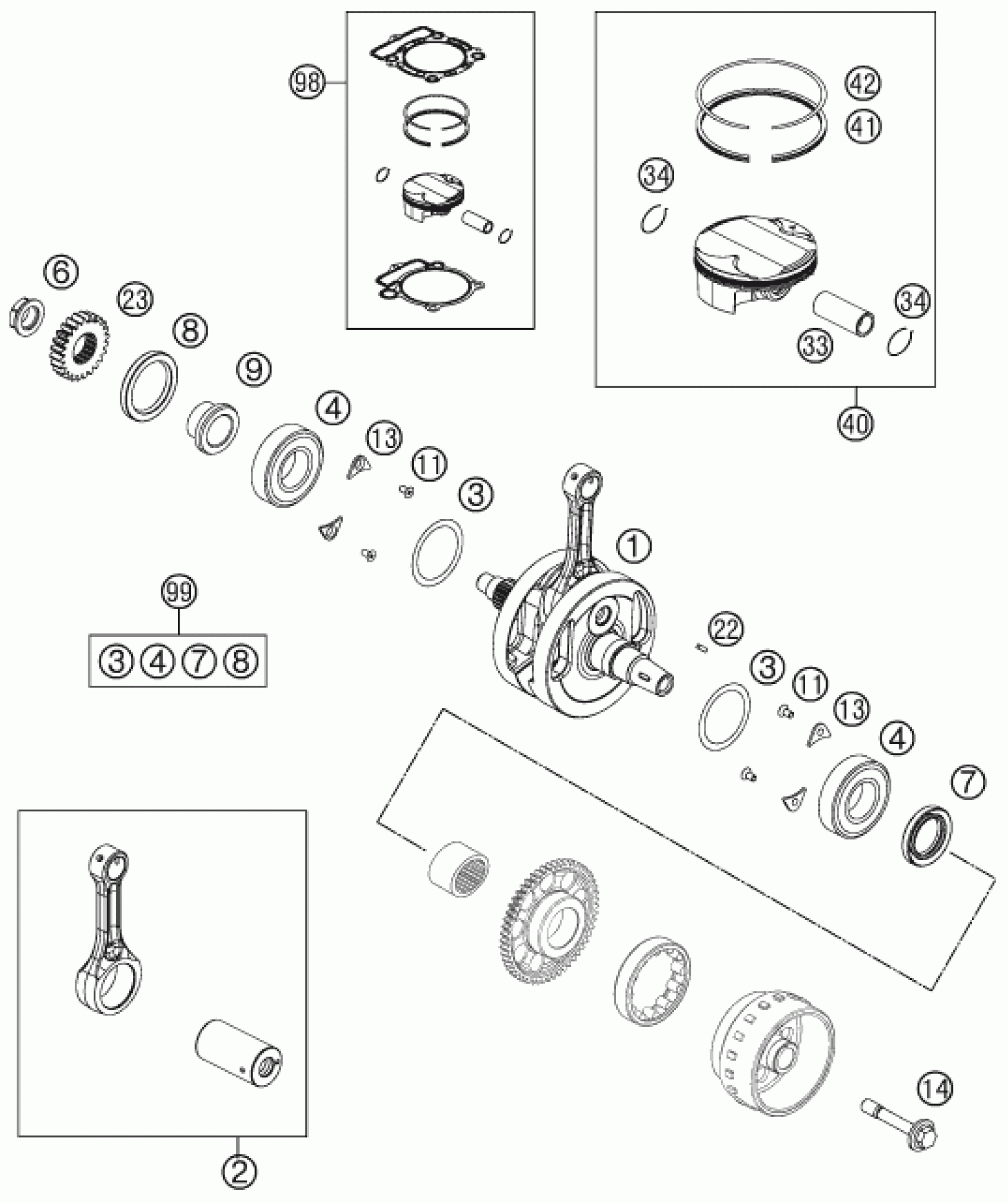

KTM 350 XC-F 2013 CRANKSHAFT, PISTON Diagram

#

Description
Price

98

PISTON KIT GR.I 350 SX-F 13-15

00050000220

Unavailable

98

PISTON KIT GR.II 350 SX-F13-15

00050000221

Unavailable

1

CRANKSHAFT CPL.

77830018100

$1,078.70

2

CONNECTING ROD REPAIR SET

77830015144

$629.90

3

THRUST WASHER 988ST 32X0,1

0988324510

Unavailable

3

THRUST WASHER 988ST 32X0,15

0988324515

Unavailable

3

THRUST WASHER 988ST 32X0,30

0988324530

Unavailable

4

BEARING NJ 206 ECP/HN3C4HVA624

77330082200

$93.87

6

NUT PRIMARY WHEEL

77230029000

$4.29

7

SH.SEAL RING 30X47X7 BSL VITON

0760304772

$20.37

8

SHAFT SEAL RING A40x55x6 VITON

0760405560

$11.87

9

SPACER BUSHING PRIMARY GEAR

77232022000

$11.02

11

INT TORX FLAT HEAD M5X10 10.9

0019050106

$2.05

13

RETAINING PLATE F. CS BEARING

75030085000

$1.49

14

FLYWHEEL SCREW

77339010100

$5.60

22

WOODRUFF KEY DIN6888-3X3,7

0888030037

$2.05

23

PRIMARY GEAR 24T.

77232023024

$94.52

33

PISTON PIN 350

77230233100

$57.54

34

CIRCLIP

77230274000

$19.71

40

PISTON CPL. 350 I

77230207000 I

Unavailable

40

PISTON CPL. 350 II

77230207000 II

Unavailable

41

SCRAPER RING 350

77230032100

$154.69

42

COMPRESSIONRING 350

77230030000

$42.72

99

CRANKSHAFT REP. KIT SX-F 13-15

00050002311

Unavailable
