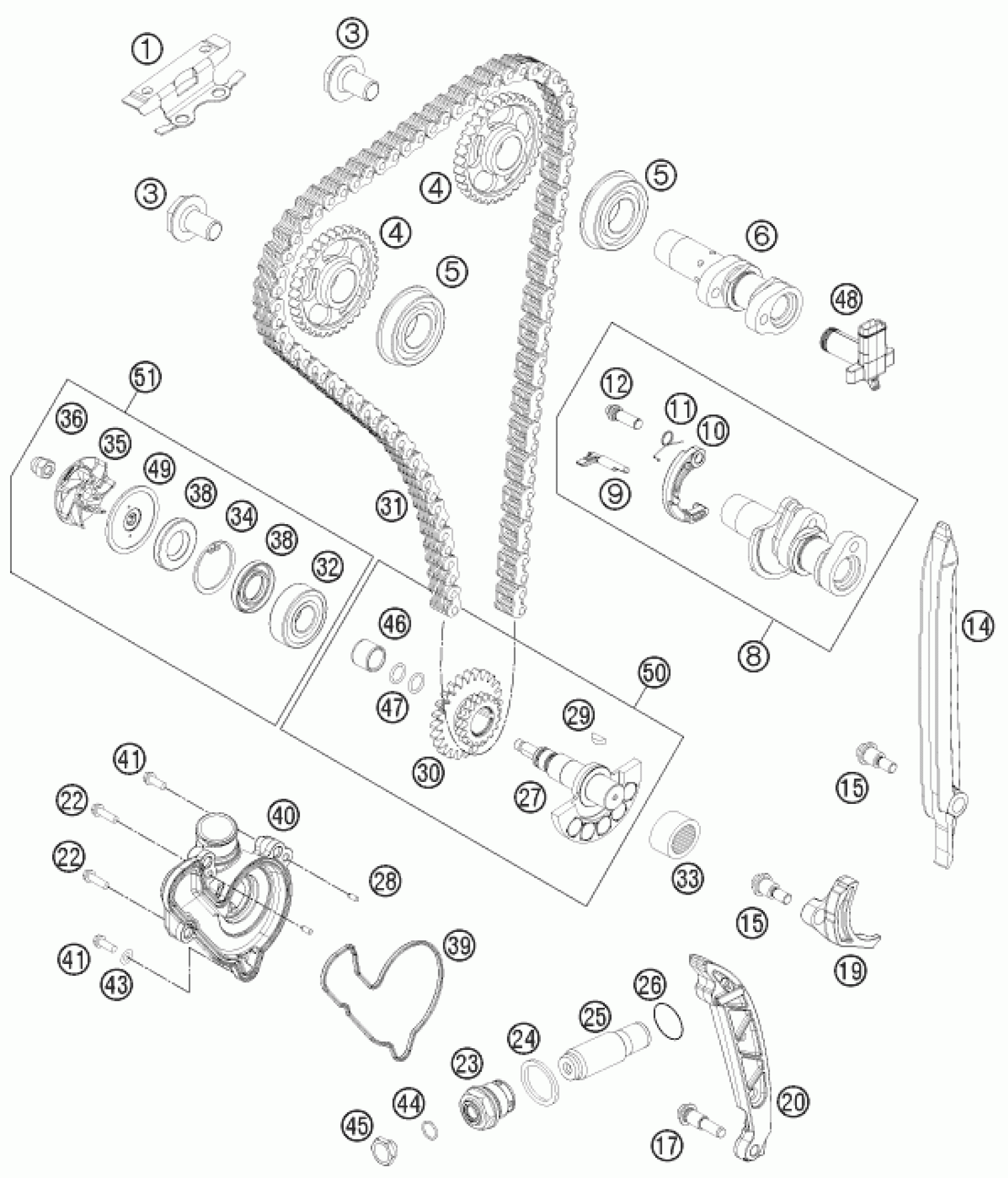

KTM 350 XC-F 2011 TIMING DRIVE Diagram

#

Description
Price

1

TIMING CHAIN GUIDE TOP

77236004000

$33.28

3

CAMSHAFT GEAR SCREW 08

77036012100

$13.36

4

CAMSHAFT GEAR

77236011000

$83.11

5

BALL BEARING 6004 NR C3 ´05

0625060043

$13.92

6

CAMSHAFT INTAKE

77236009000

$170.98

8

CAMSHAFT EXH. WITH DEKO CPL.

77236010044

$263.35

9

AUTO DECOMPRESSION

77236015000

$28.42

10

AUTO DECO WEIGHT

77036016100

$54.50

11

SPRING FOR AUTO DECOMPR.

77236017000

$4.11

12

BUSHING SCREW AUTODEC.

77236019000

$8.03

14

TIMING CHAIN GUIDE

77236001000

$7.56

15

BUSHING SCREW M6

77236001060

$5.23

17

BUSHING SCREW M8

77236002060

$7.85

19

SECURING PROTECTION

77236005000

$3.08

20

TENSIONING RAIL

77236002000

$20.00

22

HH collar screw M6x40 TX30

0025060406

$3.08

23

HOLDING BOLT M24X1,5

77336008000

$20.56

24

CU SEAL-RING DIN7603 A24X29X2

0603242920

$3.08

25

CHAIN ADJUSTER HYD. 05

77036003000

$73.86

26

o-ring 18.00x2.00 NBR70

0770180020

$2.05

27

BALANCER SHAFT

77236072000

$314.90

28

Needle roll.DIN5402 NRB 4X9.8

0402040980

$3.08

29

WOODRUFF KEY DIN6888-3X3,7

0888030037

$2.05

30

TIMING VALVE TWIN WHEEL

77236076000

$119.48

31

TIMING CHAIN

77236013000

$161.84

32

BALL BEARING 6202 C0 2

0625062022

$14.48

33

NEEDLE BEARING NK16/16

77230058000

$18.88

34

CIRCLIP 30X1,2

0472300120

$1.49

35

WATER PUMP ROTOR

81235055020

$10.09

36

CAP NUT M6 STAINLESS STEEL

61230045000

$2.05

38

SHAFT SEAL RING 15/30/4,5BA

0760153045

$6.82

39

GASKET FOR WATER PUMP COVER

77235053000

$9.06

40

WATER PUMP COVER

77235052000

Unavailable

41

HH collar screw M6x25 TX30

0025060256

$3.08

43

CU-SEAL RING DIN7603-6X10X1

0603061001

$2.05

44

o-ring 10.00x1.00 NBR70

0770010010

$2.05

45

HOLDING BOLT

77336008010

$8.31

46

water pump wear bushing

77236072020

$10.56

47

O-RING 9x1,5 V80 SH

07700900151

$2.05

48

ANGLE PIECE F. BREATHER SYSTEM

77236081000

$4.11

49

DISC WATER PUMP

81235055110

$5.23

50

AGW CPL.

77236072033

Unavailable

51

WATER PUMP REP. KIT 11-14

77235055010

Unavailable
