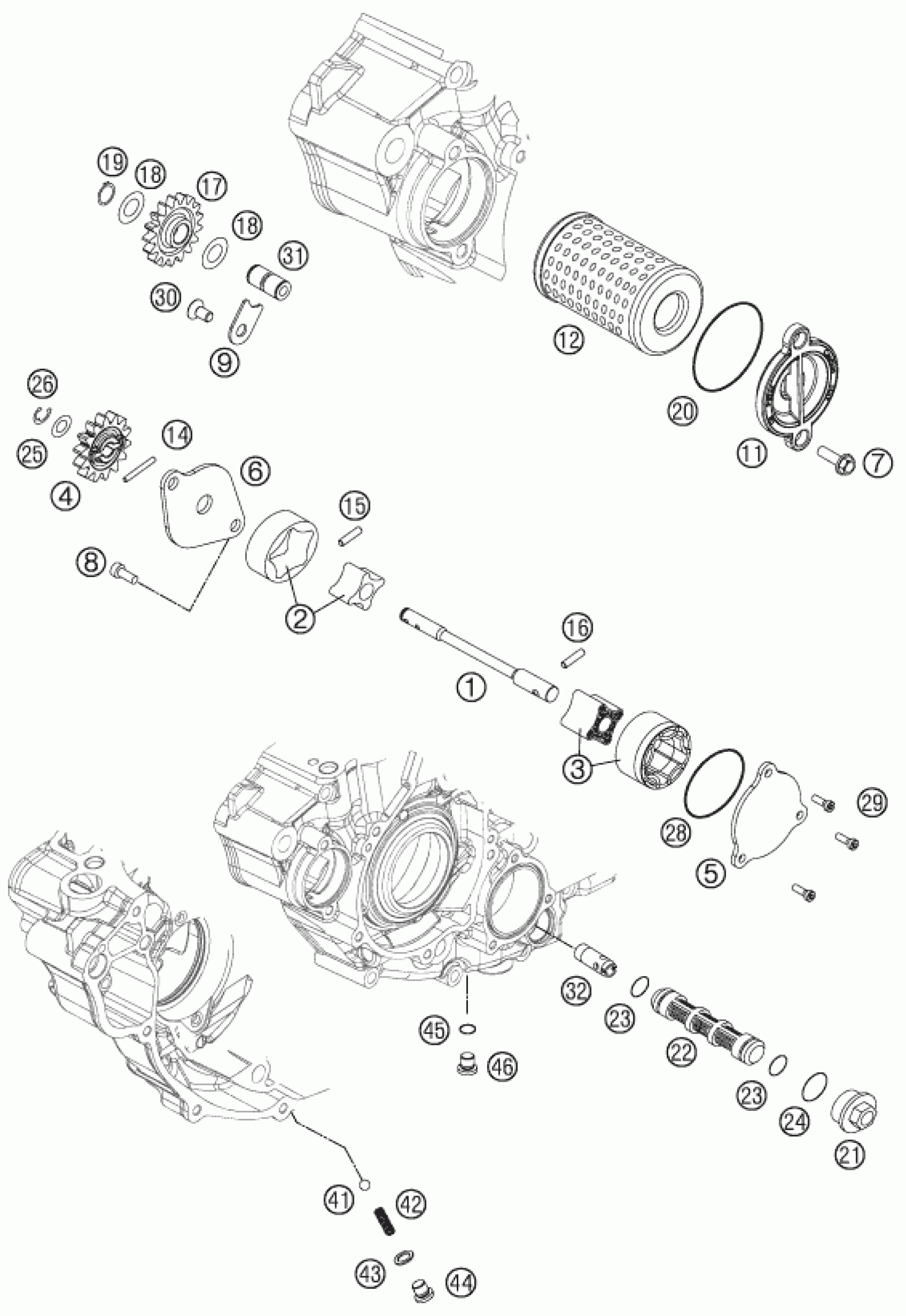

KTM 350 XC-F 2011 LUBRICATING SYSTEM Diagram

#

Description
Price

16

needle roller NRB 4x15.8 G2

0402041580

$2.05

41

BALL DIN5401-9

0401090003

$2.05

42

PRESSURE SPRING L=25MM D=1MM

58038023300

$5.23

43

CU-seal ring DIN7603-12X18X1.5

58038022000

$2.05

44

threaded plug DIN 908 M12x1.5

0908120153

$4.11

9

AXIAL-CIRCLIP

77238061050

$3.08

30

INT. TORX OVAL HEAD M 5X10 8.8

0018050103

$1.49

31

BUSHING PIN

77038013100

$8.41

32

OIL INTAKEPIPE

77038022000

$6.91

45

O-ring 11x1.5 VITON

0770110015

$5.23

46

HOLDING BOLT M14X1,5

78036081000

$3.08

1

OIL PUMP SHAFT

77238102000

$27.01

2

OILPUMP ROTOR 12MM G-95R/003

59038011012

$44.87

3

ROTOR-SET CPL. 22MM

61238111000

$16.63

4

OIL PUMP GEAR 14T 08

77038001100

$7.75

5

OIL PUMP COVER SUCTION PUMP

78038004000

$25.61

6

OIL PUMP COVER R/S

77238003100

$12.15

7

HH collar screw M6x16 TX30

0025060166

$3.08

8

CYLIND. SCR. DIN6912 M5X12 8.8

0984050123S

$2.05

11

OIL FILTER COVER 08

77338041200

$11.68

12

Oil Filter 07

77338005100

$9.34

14

NEEDLEROL.DIN5402 NRA 2,5X19,8

0402251980

$1.49

15

NEEDLE ROLLER DIN5402 2,5X11,8

0402251180

$1.49

17

OILPUMP IDLER GEAR 08

77038006100

$9.90

18

SHIM WASHER DIN0988-12X18X0,50

0988121805

$2.05

19

retaining ring DIN 471 12x1

0471120010

$1.49

20

O-RING 33,05X1,78

07703305178

$3.08

21

PLUG M20X1,5 WS=13

59038017000

$7.85

22

OIL SCREEN

59038016100

$7.00

23

O-RING 12,5X1,5 NBR

0770125015

$2.05

24

O-RING 17,17X1,78 GLO

0770020170

$2.05

25

STOP DISK 8,1 X 15 X 0,5

58038007755

$2.05

26

TAB WASHER DIN6799-RS 6,0

0799060000

$2.05

28

O-RING 44,00X2,00 VITON

0770440020

$3.08

29

CYL. SCREW DIN6912 M5X16 8.8

0984050163S

$2.05
