EXHAUST SYSTEM

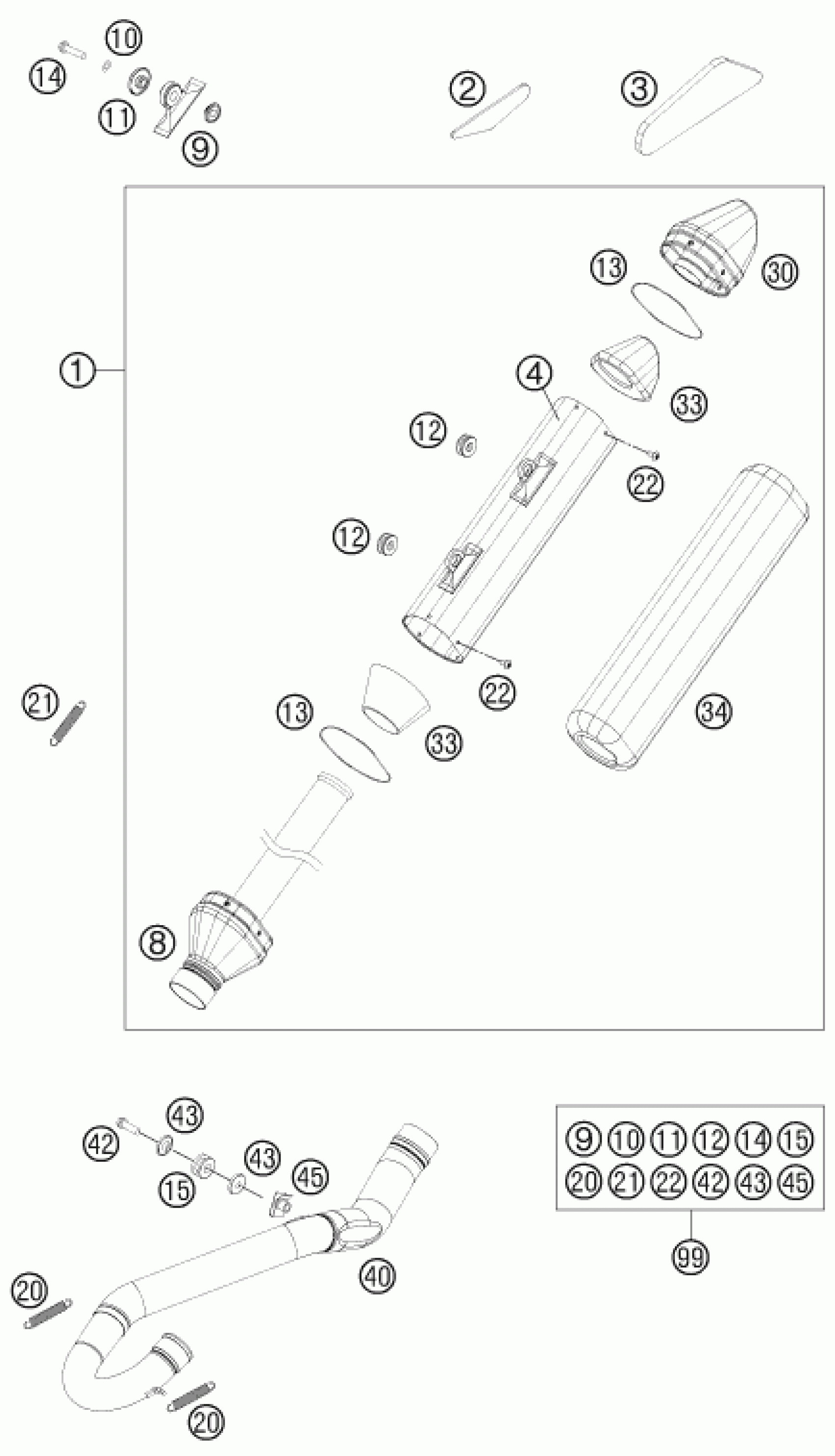

KTM 350 XC-F 2011 EXHAUST SYSTEM Diagram
#
Description
Price
3
THERMAL PROTECTION FOIL
77208013050
$9.53
1
SILENCER
77205079000
$535.84
15
EXHAUST BRACKET RUBBER BLACK
54605068000
$6.54
2
THERMAL PROTECTION FOIL 07
77308013050
$9.62
4
SILENCER HOUSING
77205079056
$109.97
8
CONNECTING CAP CPL.
77205079050
$166.18
9
BUSHING 7.5x12x20x8.2 11
77205069000
$5.98
10
spring washer DIN 137 B - 6
0137060003
$2.05
11
BUSHING 7.5x12x28x8.3 11
77205169000
$6.07
12
DAMP. COMPON. BLACK
77205068000
$6.54
13
O-RING 74,00X1,50 FKM 75SH
0770740015
$4.11
14
HH collar screw M6x30 TX30
0025060306
$3.08
20
TEN.SPRING L=62MM EY.MOVEABLE
50305016000
$4.57
21
TEN.SPRING L=75MM EY.MOVEABLE
50305116000
$7.00
22
SCREW TORX M5X10 05
58605083010
$2.05
30
ENDCAP CPL.
77205079060
$102.21
33
STUFFING YARN 65 GRAM
77005078065
$23.18
34
STUFFING YARN 550 GRAM
77205078550
$91.62
40
EXHAUST MANIFOLD 350 SX-F 11
77205007000
$431.49
42
HH collar screw M8x25
0025080256
$2.05
43
BUSHING FOR EXHAUST SUPPORT 03
59405069000
$6.54
99
EXHAUST PARTS KIT 11-14
00050000814
Unavailable
45
RANGE CHANGE METAL NUT M8
54603048000
$4.11
