Description

Price

1

E-STARTER ENGINE CPL.

77240001100

$286.29

2

O-RING 25,00X3,00 NBR 70

0770250030

$3.08

9

INTERMEDIATE STARTING GEAR

77240022000

$79.00

10

STOP DISK 17,2X25X1

54633090000

$5.23

11

CIRCLIP DIN0471-17X1

0471170010

$2.05

12

NEEDLE BEARING HK 3016 B

0618301617

$10.46

13

FREEWHEEL GEAR

77240020000

$87.37

14

ROLLER FREE WHEEL

77240026000

$201.20

3

HH collar screw M6x25 TX30

0025060256

$3.08

5

NEEDLE BUSH HK 0810 DIN 618

0618081210

$5.23

6

TORQUE LIMITER

77240016000

$165.95

7

BUSHING PIN

59040028000

$10.46

8

HH COLLAR SCREW M 6X16 WS=8

0015060163

$3.08

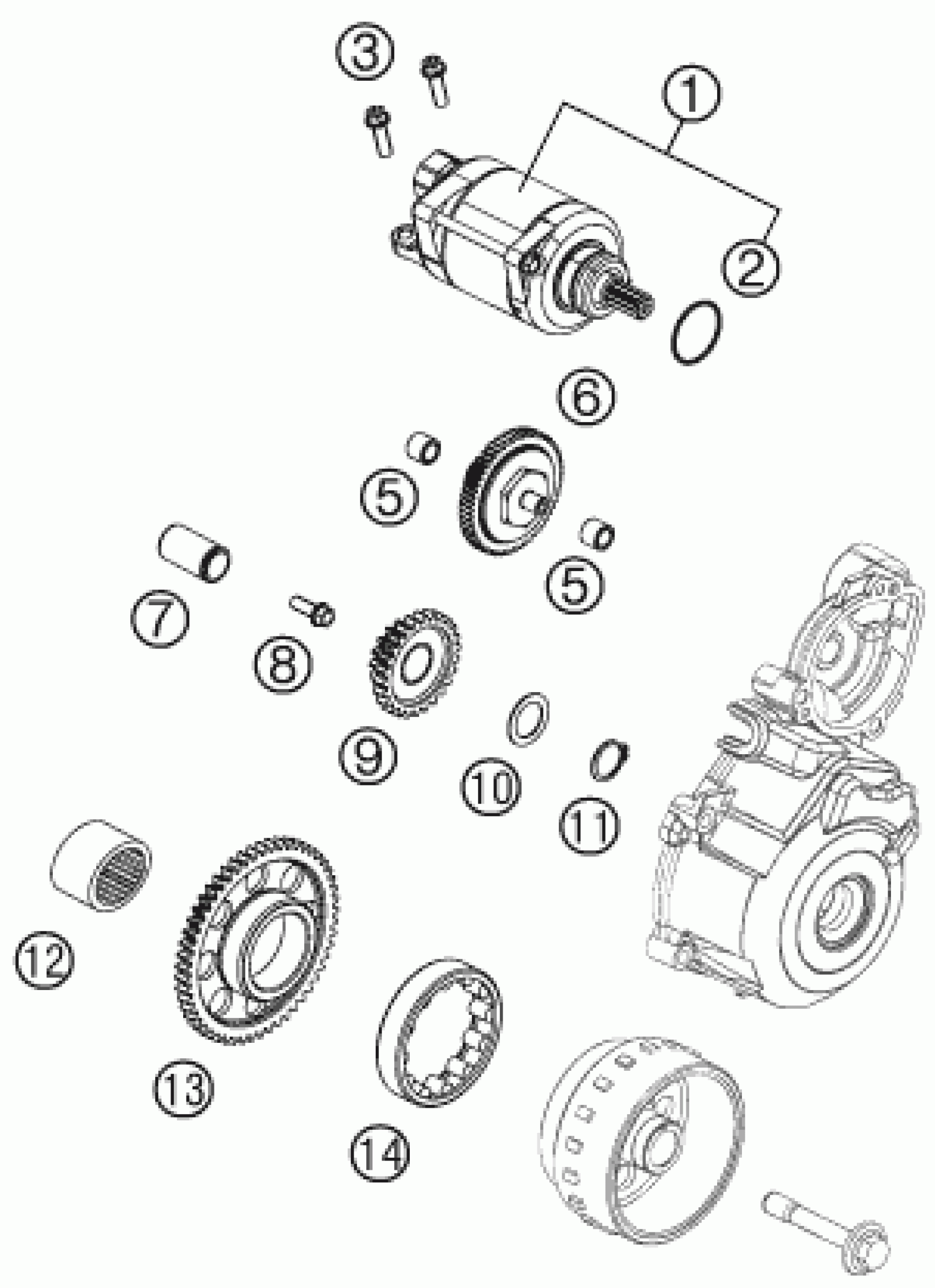

KTM 350 XC-F 2011 ELECTRIC STARTER Diagram

E-STARTER ENGINE CPL.

O-RING 25,00X3,00 NBR 70

INTERMEDIATE STARTING GEAR

STOP DISK 17,2X25X1

CIRCLIP DIN0471-17X1

NEEDLE BEARING HK 3016 B

FREEWHEEL GEAR

ROLLER FREE WHEEL

HH collar screw M6x25 TX30

NEEDLE BUSH HK 0810 DIN 618

TORQUE LIMITER

BUSHING PIN

HH COLLAR SCREW M 6X16 WS=8
