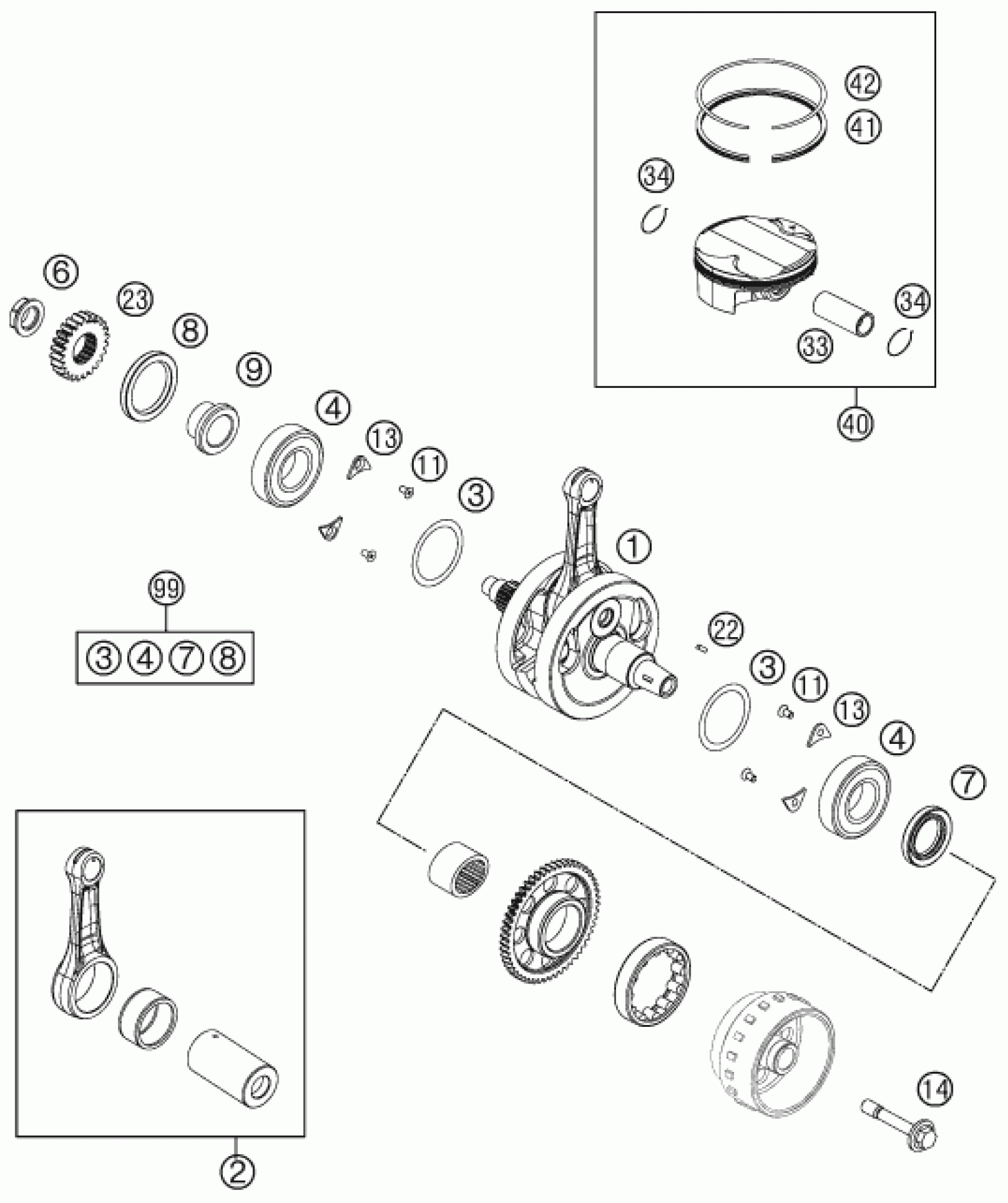

KTM 350 XC-F 2011 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

CRANKSHAFT CPL.

77230118000

$752.35

2

CONNECTING ROD REPAIR SET

77230115044

$423.72

3

THRUST WASHER 30,5X45X0,10

56030081000

Unavailable

3

THRUST WASHER 30,7X47X0,15

56030081100

Unavailable

3

THRUST WASHER 30,5X45X0,30

56030081200

Unavailable

4

CYL. ROLLER BEARING NJ206 ECP

77330082100

$96.58

6

NUT PRIMARY WHEEL

77230029000

$4.29

7

SH.SEAL RING 30X47X7 BSL VITON

0760304772

$20.37

8

SHAFT SEAL RING A40x55x6 VITON

0760405560

$11.87

9

SPACER BUSHING PRIMARY GEAR

77232022000

$11.02

11

INT TORX FLAT HEAD M 5X10 8.8

0019050103

$2.05

13

RETAINING PLATE F. CS BEARING

75030085000

$1.49

14

FLYWHEEL SCREW

77339010100

$5.60

22

WOODRUFF KEY DIN6888-3X3,7

0888030037

$2.05

23

PRIMARY GEAR 24T.

77232023024

$94.52

33

PISTON PIN 350

77230133000

$51.23

34

CIRCLIP

77230174000

$3.08

40

PISTON CPL. 350

77230107000 I

$274.51

40

PISTON CPL. 350

77230107000 II

$453.37

41

SCRAPER RING 350

77230032000

$154.69

42

COMPRESSIONRING 350

77230030000

$42.72

99

CRANKSHAFT REP. KIT 350SX-F

00050002303

Unavailable
