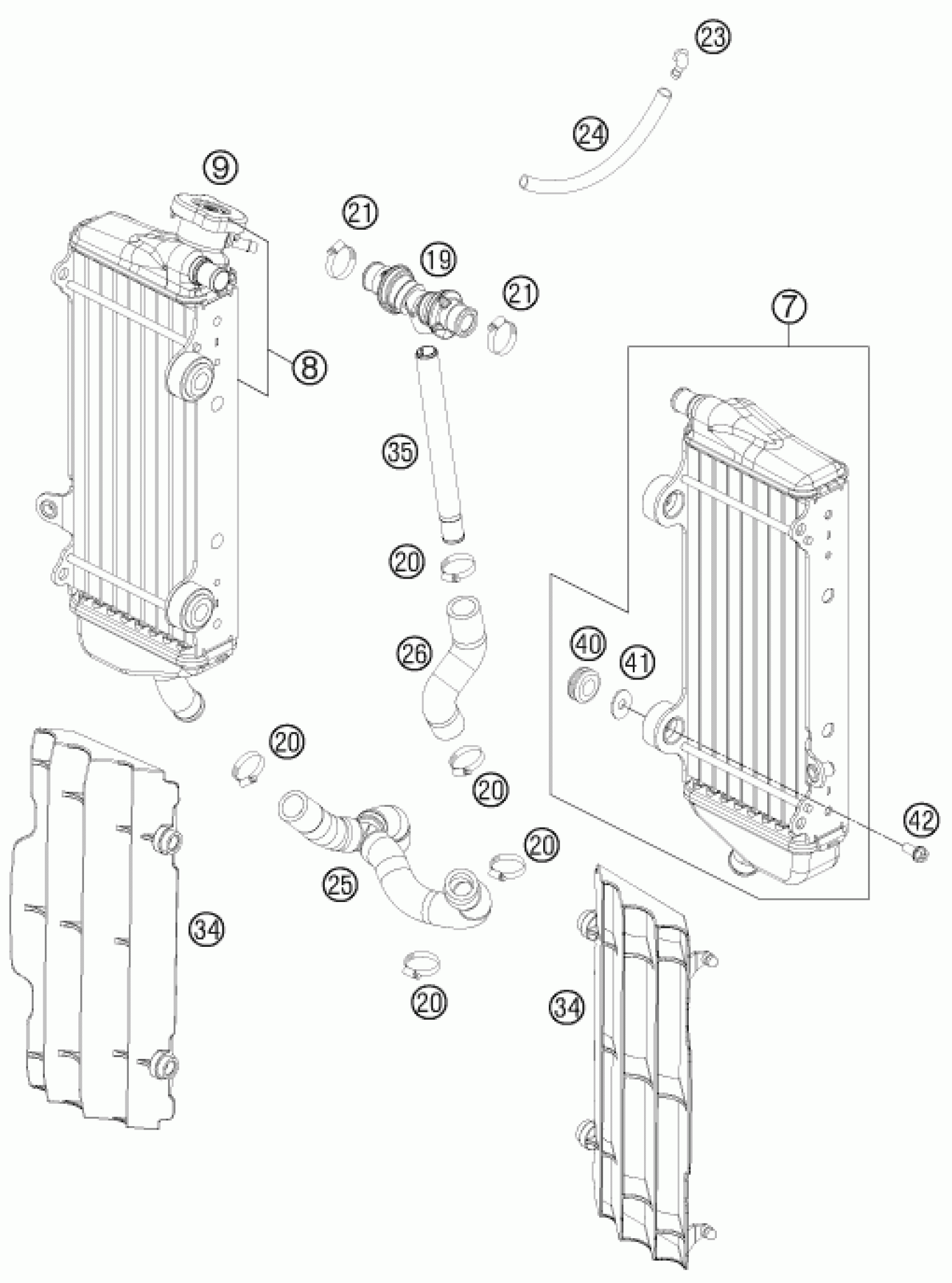

KTM 350 XC-F 2011 COOLING SYSTEM Diagram

RADIATOR L/S 250 SX-F

77035007200

$285.26

RADIATOR R/S ''45637'' 11

77235008000

$225.23

RADIATOR CAP SMALL 1,8 BAR

77335016000

$22.62

Y-CONNECTOR CPL.

77235071044

$53.38

HOSE CLAMP GEMI 18-29

10001020000

$2.05

HOSE CLAMP NORMA 14/24

42013037400

$2.05

ANGLE PIECE '97

50303089000

$5.23

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

RADIATOR HOSE CPL.+Y-CONNECT.

77235025033

$60.77

PREFORMED HOSE ENG. Y-CONNECT.

77235024000

$10.46

RADIATOR PROTECTION BLACK 07

7733503400030

Unavailable

HOSE CONNECTOR L=172,5

77235073000

$23.93

RUBBER SLEEVE D=12MM

41001052000

$4.11

WASHER FOR RADIATOR 08

77335001000

$2.05

COLLAR SCREW M6X12 TX

0023060123

$2.05

RADIATOR PROTECTION orange

7733503400004

Unavailable
