Description

Price

6

INSERT

SXS11350508

Unavailable

1

SILENCER TITAN

SXS12350502

Unavailable

3

THERMAL PROTECTION FOIL

77208013050

$9.53

20

EXHAUST-SPRING SMALL W. RUBBER

57305016100

$8.49

40

SXS FACTORY HEADER TI

SXS11350500

Unavailable

42

HH collar screw M8x25

0025080256

$2.05

43

BUSHING FOR EXHAUST SUPPORT 03

59405069000

$6.54

44

EXHAUST BRACKET RUBBER BLACK

54605068000

$6.54

2

THERMAL PROTECTION FOIL 07

77308013050

$9.62

41

RANGE CHANGE METAL NUT M8

54603048000

$4.11

7

STICKER AKRAP.

SXS12350509

$12.74

8

CLAMP CARBON

SXS11450505

Unavailable

9

CLAMP CARBON

SXS11450506

Unavailable

15

HH collar screw M6x50 TX30

0025060506

$3.08

32

STUFFING YARN-KIT

SXS12350507

Unavailable

5

SILENCER ENDCAP

SXS12350504

Unavailable

10

WASHER DIN0125-A 6,4

0125060003

$1.49

14

HH collar screw M6x25 TX30

0025060256

$3.08

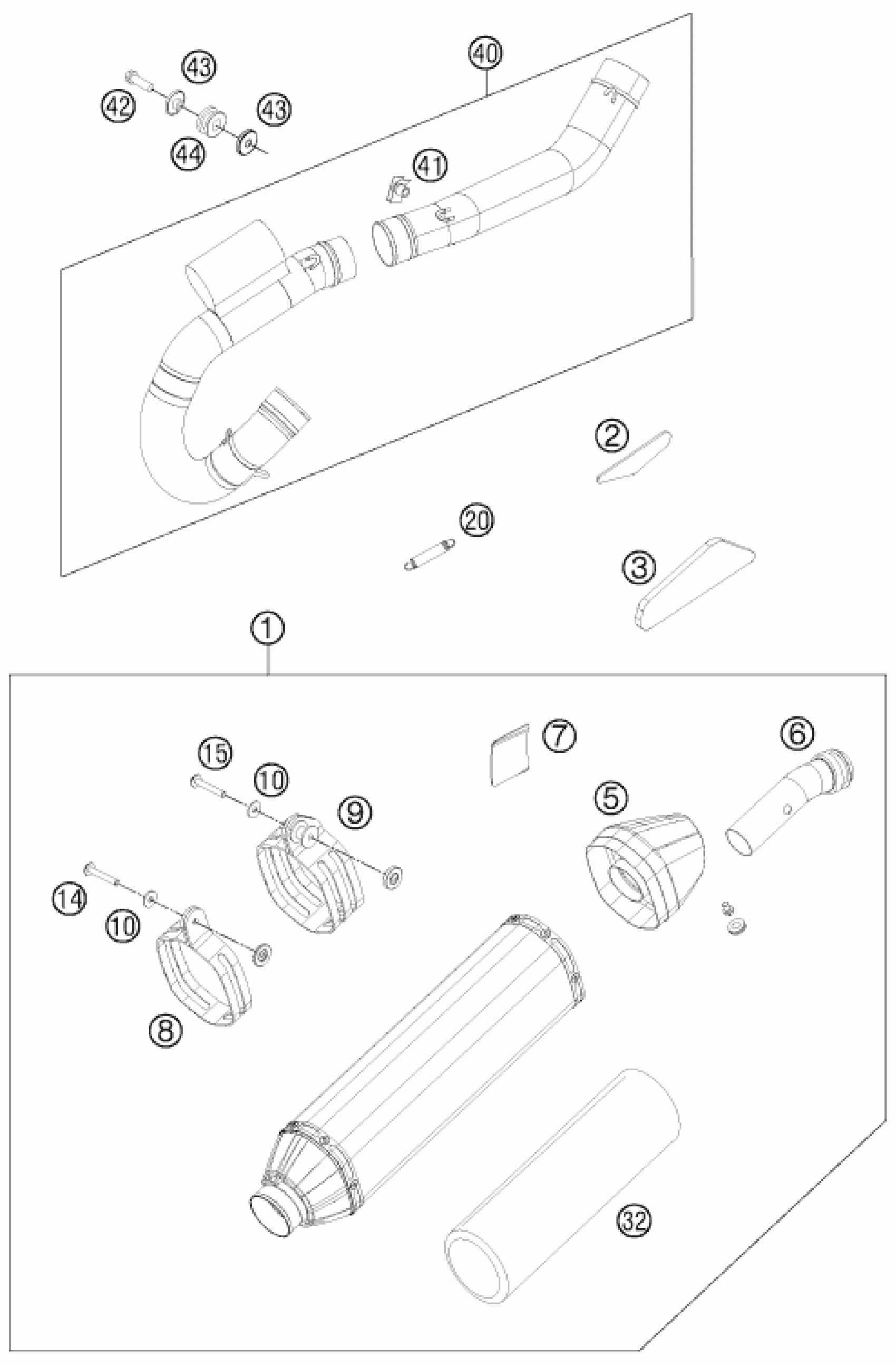

KTM 350 SX-F CAIROLI REPLICA 12 <2012 EXHAUST SYSTEM Diagram

INSERT

SILENCER TITAN

THERMAL PROTECTION FOIL

EXHAUST-SPRING SMALL W. RUBBER

SXS FACTORY HEADER TI

HH collar screw M8x25

BUSHING FOR EXHAUST SUPPORT 03

EXHAUST BRACKET RUBBER BLACK

THERMAL PROTECTION FOIL 07

RANGE CHANGE METAL NUT M8

STICKER AKRAP.

CLAMP CARBON

CLAMP CARBON

HH collar screw M6x50 TX30

STUFFING YARN-KIT

SILENCER ENDCAP

WASHER DIN0125-A 6,4

HH collar screw M6x25 TX30
