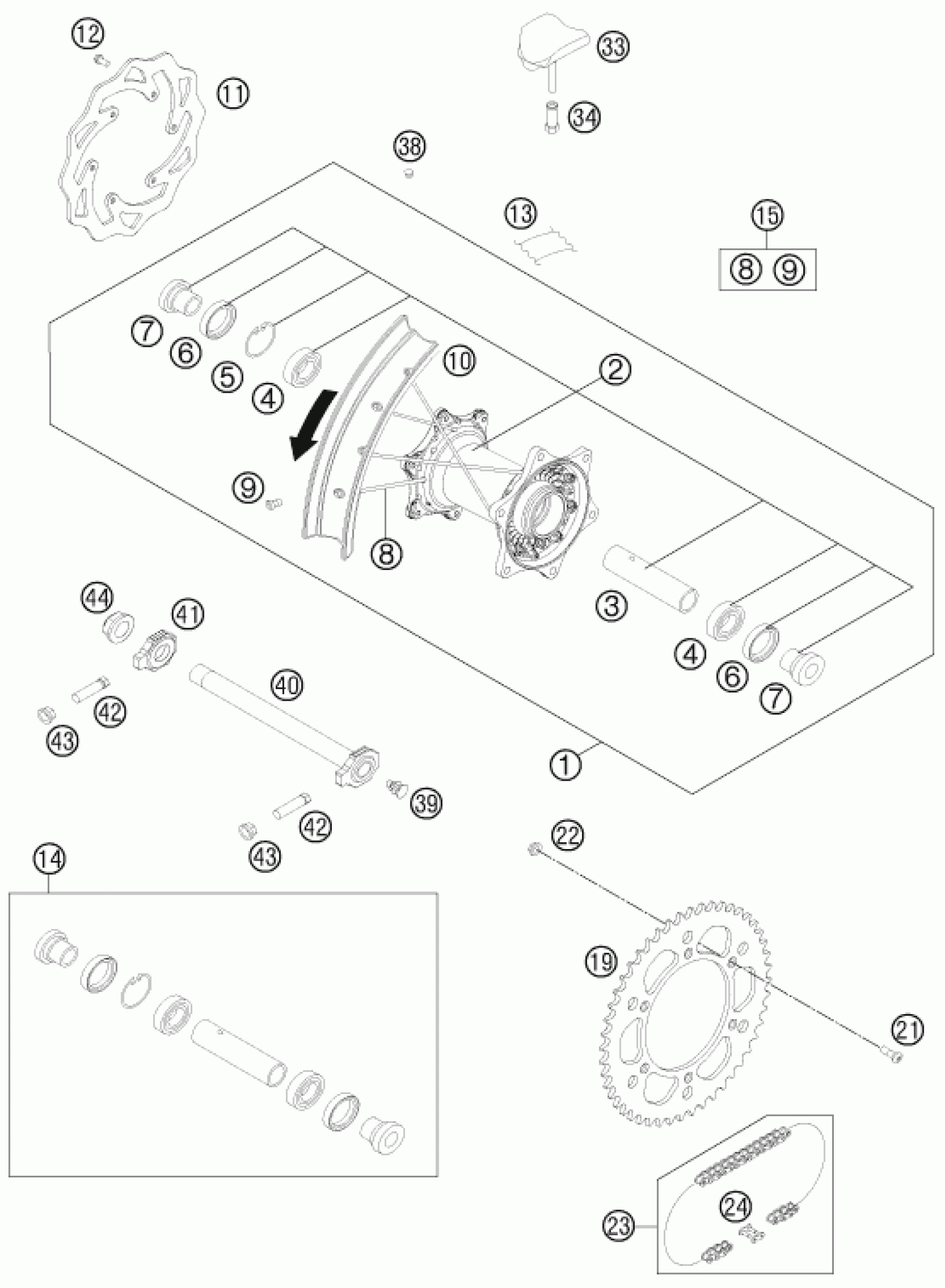

KTM 350 SX-F CAIROLI REPLICA 11 <2011> REAR WHEEL Diagram

#

Description
Price

1

REARWHEEL CPL.2,15X19 EXCEL 11

7711000104430

Unavailable

2

REAR WHEEL HUB CPL.

78010010144

$313.68

3

BUSH. SPACER TUBE 121,5MM 01

59010011000

$22.34

4

Grooved ball bear.6005 DDU2CG2

0625060058

$18.32

5

CIRCLIP DIN0472-47X1,75

0472047175

$3.08

6

Radial shaft seal 32X47X7 BSL

0760324771

$13.36

7

BUSHING FOR HUB 08

78010016000

$32.90

8

SPOKE M4,5x205-19'' 11

77110071205

$5.23

9

Spoke nipple M4.5 AL

77109072000

$3.08

10

RIM 2,15''X19'' EXCEL SXS

7731007000030

$257.30

11

BRAKE DISC REAR 220

77310060000

$127.62

12

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

13

Tube protector 18" and 19"

50310073200

$13.27

14

REAR WHEEL REP. KIT

78010015000

$107.98

15

SPOKE KIT REAR ''19''

00050000917

Unavailable

19

REAR SPROCKET 42T ORANGE

5901005104204

Unavailable

19

REAR SPROCKET 45T ORANGE

5901005104504

Unavailable

19

REAR SPROCKET 48T ORANGE

5901005104804

Unavailable

19

REAR SPROCKET 49T ORANGE

5901005104904

Unavailable

19

REAR SPROCKET 50T ORANGE

5901005105004

$27.37

19

REAR SPROCKET 51T ORANGE

5901005105104

Unavailable

19

REAR SPROCKET 52T ORANGE

5901005105204

Unavailable

21

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

$3.08

22

Hex. nut DIN EN 1661 M8 WS13

06923080003

$2.05

23

CHAIN 5/8X1/4'' MX

50310165118

$84.14

24

Connecting link for 5031016511

50310166000

$6.79

33

RIM LOCK VM3 (2.15'')

54010100100

$20.56

34

NUT FOR WHEEL HOLDER '96

50310090050

$5.23

38

PLUG FOR RIM

55003135000

Unavailable

39

Plug SFL16

50210086000

Unavailable

40

Thru axle rear wheel cmpl. 07

77310085044

$78.91

41

Chain tension adjuster, right

50310084000

$20.66

42

screw M10x1.25x50 WS10

50304040100

$5.23

43

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

44

Hexagon nut M20x1.5

50310099000

$11.30
