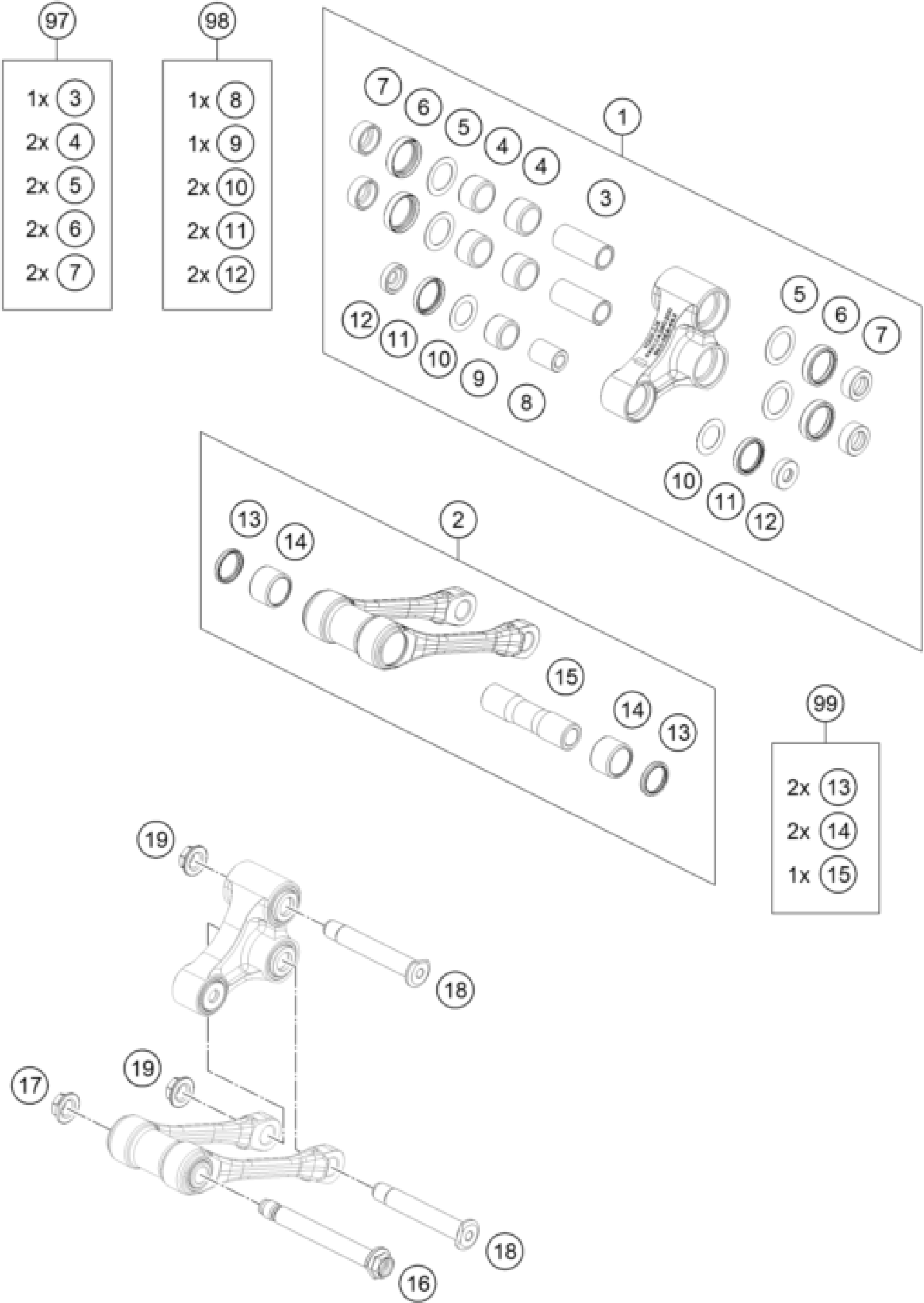

KTM 350 SX-F 2025 PRO LEVER LINKING Diagram

#

Description
Price

1

Triangle cantilever cmpl.

A46004080244

$222.33

2

Pull rod cmpl.

A46004083244

$169.88

3

Bushing sleeve 15x20x48

54603081000

$24.77

4

Needle bushing HK 2016 / 20x26

54603097000

$15.04

5

STOP DISK 22,2X31,7X1

54603036000

$3.08

6

Radial shaft seal 25x32x7

0760253271

$1.86

7

Bucket f. shaft seal ring 25X1

77204080130

$10.93

8

Bearing sleeve 10x18x25.5

77204080010

$8.41

9

NEEDLE BUSH HN1816 RS 18/24/16

0618182416

$12.89

10

Shim 29.75x19x0.4

50180604

$2.05

11

Radial shaft seal 24x30x5

0760243051

$2.89

12

Bucket f. shaft seal ring 24x6

77204080020

$9.90

13

Radial shaft seal G22x28x4

0760222842

$3.64

14

NEEDLE BEARING HK2220 22X28X20

0618222820

$11.30

15

Bearing sleeve for pull rod 16

79004084010

$22.15

16

Pin pull rod M14x1.5

A48004084000

$50.01

17

Hex. nut M14x1.5 WS17

77404084120

$19.35

18

Triangle cantilever pin M14x1.

A48004085000

$37.67

19

hex nut M14x1.5 WS17

77204087000

$2.05

97

Repair kit triangle lever

A46004180020

Unavailable

98

Repair kit triangle lever

A46004180010

Unavailable

99

Repair kit pull rod

A46004183010

Unavailable
