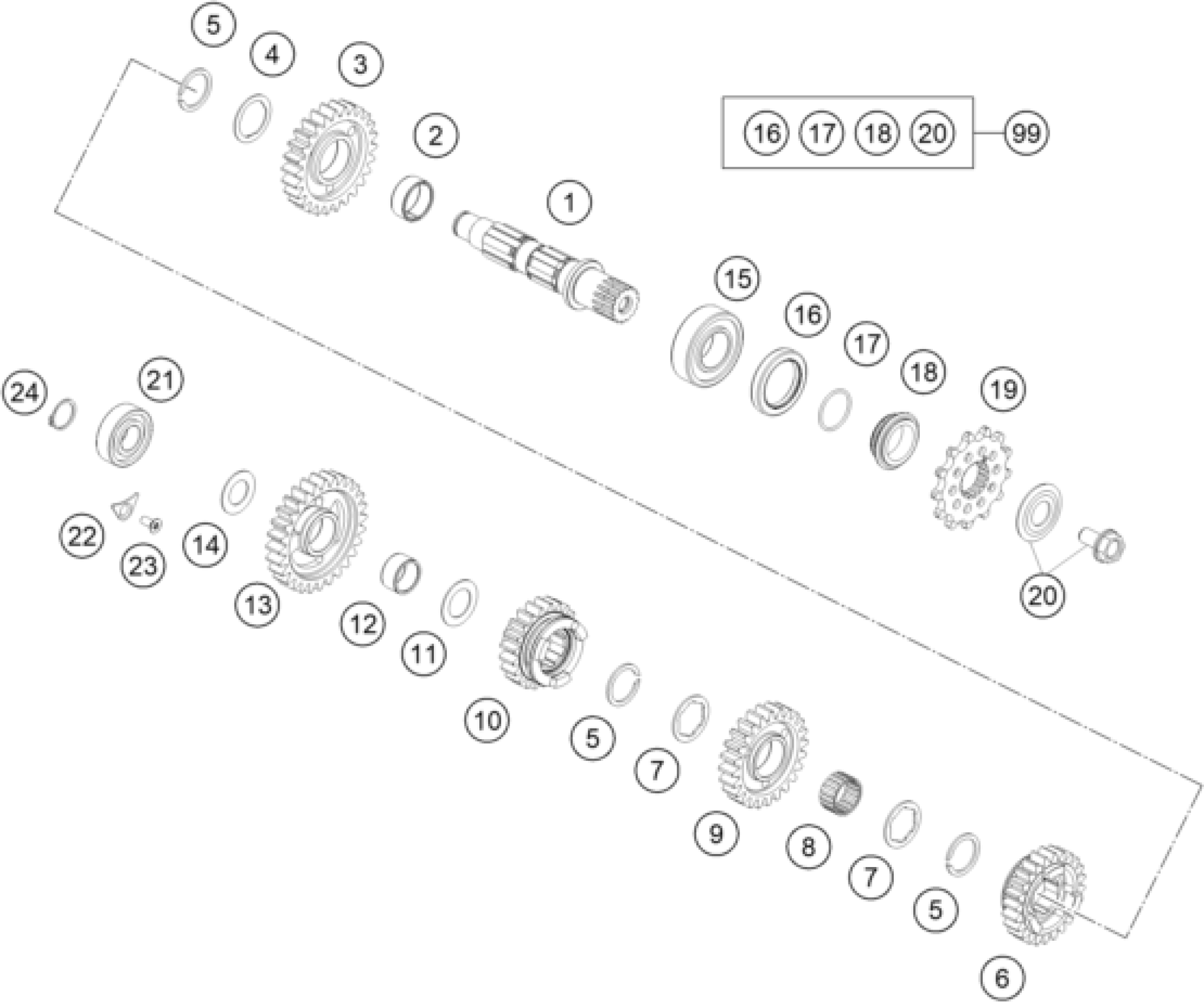

KTM 350 SX-F 2021 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

1

Countershaft

79333010000

$204.48

2

NEDDLE BEAR. K24X28X11,9 DIV.

0405242812

$7.28

3

Idler gear 2nd.

79333512000

$146.04

4

Stop disk

79333043000

$3.08

5

AXIAL-CIRCLIP 25X1,64

54633096000

$2.05

6

Sliding gear 4th

79333514000

$182.50

7

STOP DISC 25,2X32X1,5

59033030000

$3.08

8

NEEDLE BEAR. K 22X26X13 TN

0405222613

$9.15

9

Idler gear 3rd

79333513000

$132.20

10

Sliding gear 5th

79333515000

$154.83

11

Shim 20x31.9x1

59033080000

$2.05

12

NEEDLE BEAR. K20X24X13

0405202413

$10.84

13

Idler gear 1 st.

79333511000

$145.57

14

STOP DISC 17,2X30X1

56033030000

$4.11

15

cylindrical roller bearing NJ2

49030023000

$74.42

16

SHAFT SEAL RING 32X45X7 BSLNBR

0760324571

$5.23

17

O-RING 25,12X1,78 NBR70

0770020220

$3.08

18

SPACER SLEEVE COUNTER

78133014000

$28.42

19

Sprocket 14-t

79233029014

$30.94

19

Sprocket 13-t

79233029013

Unavailable

20

SCREW 10.9+SPRING WASHER

59033034044

$7.85

21

BALL BEARING 6203 JR2 C3

0625062035

$14.48

22

RETAINING PLATE F. CS BEARING

75030085000

$1.49

23

INT. TORX FLAT HEAD M5X12 T25

0019050121S

$2.05

24

CIRCLIP DIN 0471-17X1, 5

0471170015

$1.49

99

COUNTER SHAFT REP.KIT 4 STROKE

00050000941

Unavailable
