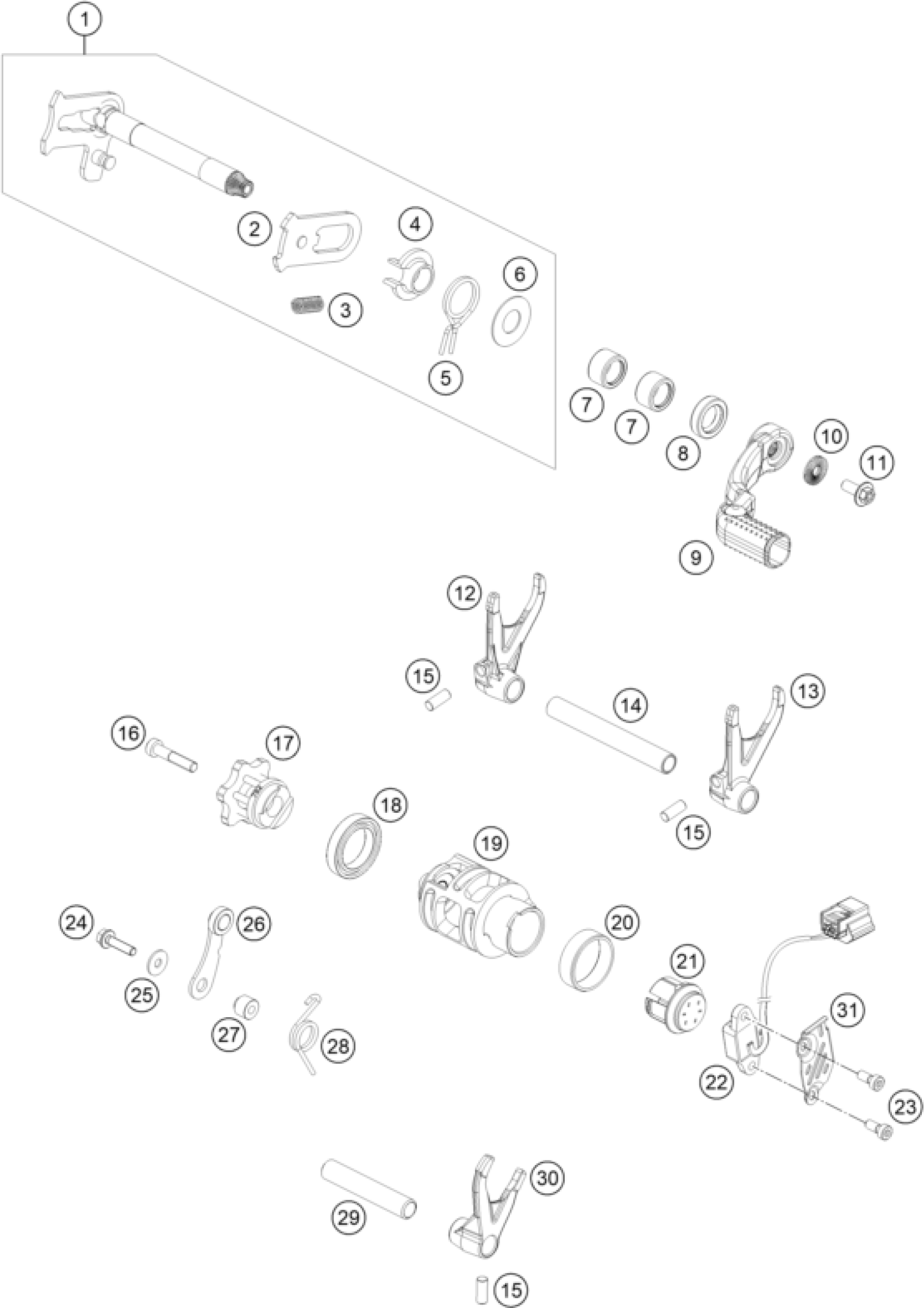

KTM 350 SX-F 2021 SHIFTING MECHANISM Diagram

SHIFT SHAFT CPL.

79234005133

$84.05

SLIDING PLATE CPL.

79234008144

$35.52

TENSIONING SPRING 0,8MM

56534013100

$1.49

SPRING GUIDE

54634020000

$6.44

RETURN SPRING 03

54834014000

$4.11

STOP DISK 14X30X1

54634050000

$2.05

needle sleeve HK 1412 14x20x12

54632095000

$7.00

radial shaft seal 14x24x6 B

0760142460

$9.25

Shift lever cmpl.

79234031100

$102.56

PAIR NORDLOCK WASHER M6

50233041500

$4.11

HH collar screw M6x15 TX30

0024060156S

$2.05

SHIFTING FORK 1ST/3RD GEAR

79234003000

$77.78

SHIFTING FORK 2ND GEAR

79234002000

$77.78

SHIFTING MAIN L=93MM 05

77034019000

$14.02

NEEDLE ROLLER DIN5402 6X14,8

0402061480

$4.11

Cap head screw M6x30-8.8

0012060303S

$1.49

Shift star cmpl

79234015100

$25.80

BALL BEARING 61805 C3

0625618050

$43.94

SHIFT ROLLER 5G

79234012000

$77.04

FRICTION BEARING CONTROLLER

79234012010

$22.99

Magnet bracket cmpl.

79234012020

$58.71

gear position sensor

79211023000

$121.35

CYL. SCREW DIN6912 M5X14 8.8

0984050143S

$2.05

HH collar screw M5x25 TX30

0025050256S

$1.49

washer DIN 9021 A - 5.3

0021050003

$1.49

LOCKING LEVER CPL.

79234024044

$11.59

SLEEVE FOR LOCKING LEVER

54634052300

$3.08

LOCKING LEVER SPRING 03

54834023000

$3.08

SHIFT. RAIL MAIN SHAFT 250/300

54834019000

$12.80

SHIFTING FORK 4TH/5TH GEAR

79234001000

$77.69

GUARD PLATE MOTION SENSOR

79211024000

$4.11
