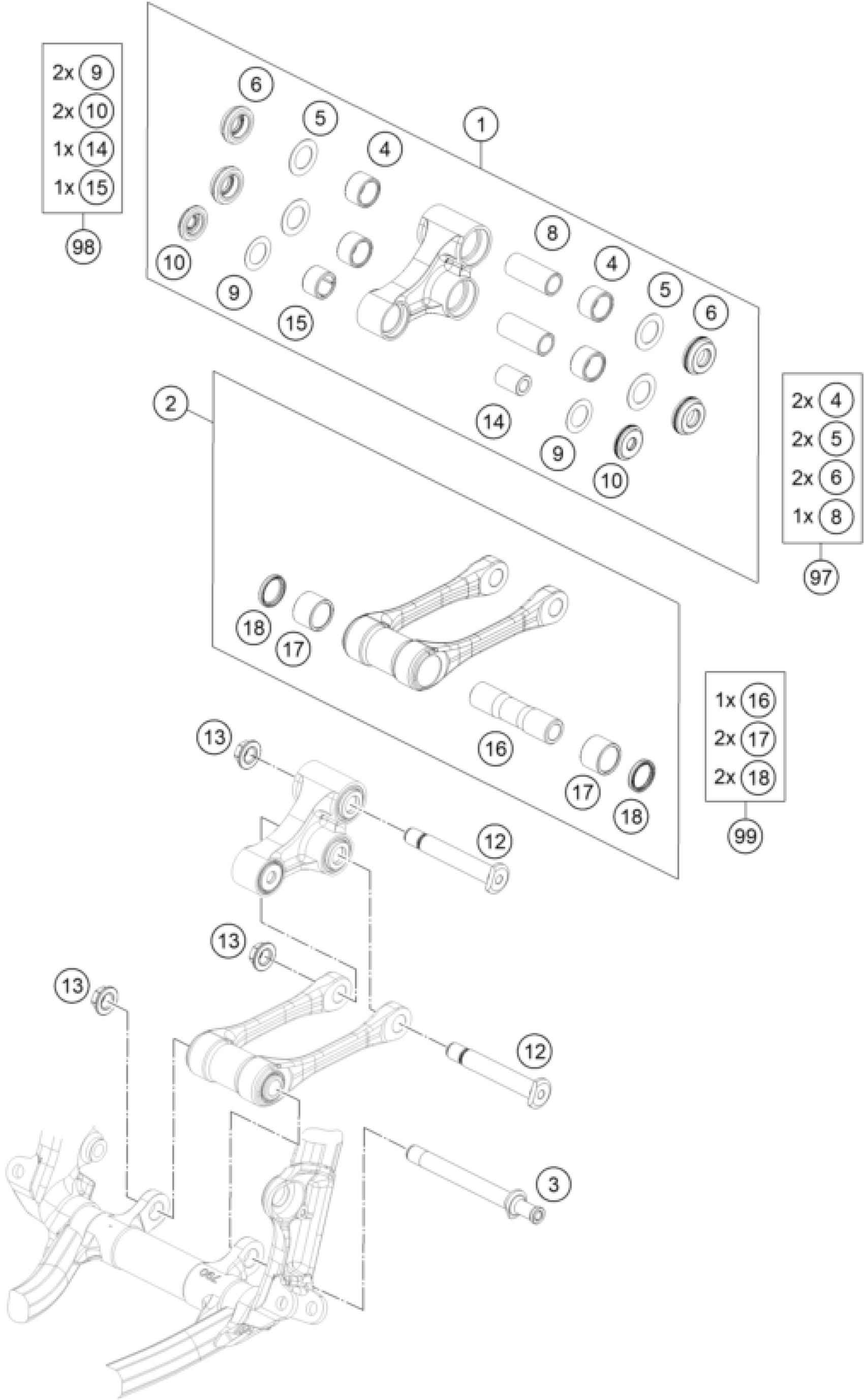

KTM 350 SX-F 2021 PRO LEVER LINKING Diagram

#

Description
Price

1

Triangular centilever SX cmpl.

7910408004401

$280.87

2

PULLROD CPL. SX 2016

7900408304401

$186.62

3

BOLT TIE-ROD BEARING M14X1,5

79004084000

$48.70

4

Needle bushing HK 2016 / 20x26

54603097000

$15.04

5

Shim 20x31.9x1

59033080000

$2.05

6

Seal triangular centilever

79104082032

$10.18

8

Bushing sleeve 15x20x48

54603081000

$24.77

9

Shim 29.75x19x0.4

50180604

$2.05

10

Seal triangular centilever

79104082030

$10.18

12

Bolt triangle lever arm M14x1.

77204085000

$48.99

13

hex nut M14x1.5 WS17

77204087000

$2.05

14

Bearing sleeve 10x18x25.5

77204080010

$8.41

15

NEEDLE BUSH HN1816 RS 18/24/16

0618182416

$12.89

16

Bearing sleeve for pull rod 16

79004084010

$22.15

17

NEEDLE BEARING HK2220 22X28X20

0618222820

$11.30

18

Radial shaft seal G22x28x4

0760222841

$4.11

97

repair kit triangular cenitlev

00050002113

Unavailable

98

repair kit triangular cenitlev

00050002112

Unavailable

99

PULL ROD REP. KIT SX-F

79004083010

Unavailable
