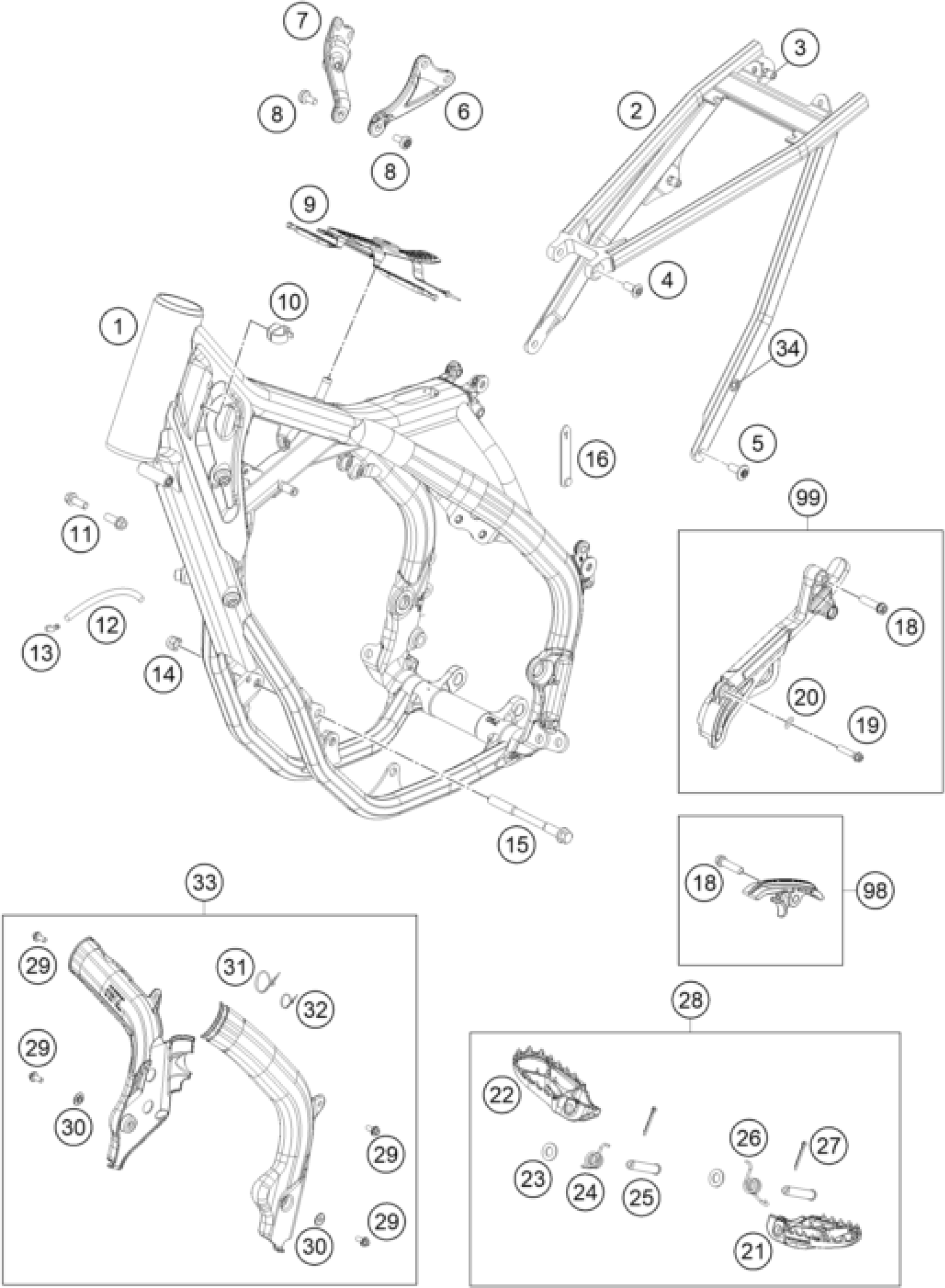

KTM 350 SX-F 2017 FRAME Diagram

TANK REST RUBBER

79007012000

$9.90

BLIND RIVET NUT EM6-60LF/HX

77303139000

$4.11

FLAT HEAD SCREW M. ISA45 M8X20

0019080206S

$2.05

FRAME ''790Q3'' BLACK

7900300120033

$1,810.06

SUBFRAME 2016

79003002000

$267.78

Special screw M8X18 TORX45 SL

79003003000

$3.08

ENGINE BRACE LEFT

79003013100

$48.14

ENGINE BRACE R/S

79003014100

$57.40

SHCS M8x20 TX45

0035080206S

$5.32

CABLE SUPPORT KHS NR.150-47610

58111076000

$4.11

HH collar screw M8x16 TX40 SL

0025080166S

$3.08

PVC-HOSE 7X10 PER METER

55007016001

Unavailable

ANGLE PIECE '97

50303089000

$5.23

SELF LOCKING NUT M10 CU WS=14

54310086100

$2.05

engine brac.scr. M10x115

77203014000

$8.97

RUBBER CABLE TIE 75MM 03

60011093075

$5.23

HH collar screw M8x30

0025080306

$3.08

HH collar screw M6x40 TX30

0025060406

$3.08

WASHER DIN0125-A 6,4

0125060003

$1.49

FOOTREST L/S 2016

79003040000

$41.51

FOOTREST R/S 2016

79003041000

$41.51

washer DIN 125 A 10.5

0125100003

$2.05

FOOTREST SPRING R/S 2016

79003044000

$2.05

PIN FOR FOOT PED 51.5X9.8 MM

54803044000

$12.43

FOOTREST SPRING L/S 2016

79003045000

$2.05

PIN DIN0094-3,2X25 STEEL

0094032253

$1.49

FOOT PEGS SET CPL. 2016

79003040033

$101.16

HH COLLAR SCREW M 5X12 WS=6

0014050123

$2.05

Bush f. frame protection 03

54803092060

$4.11

CABLE TIE 300/4,8MM BLACK

44011076305

$2.05

CABLE TIE 140/2,5MM BLACK

44011076140

$1.49

FRAME PROTECTION SET BLACK

7900309400033

$35.24

BLIND RIVET NUT M6 KNURLED

79003002080

$3.08

CHAIN SLIDING KIT BELOW CPL.16

79003053010

$17.85

SPROCKET COVER KIT

79003096010

$24.77
