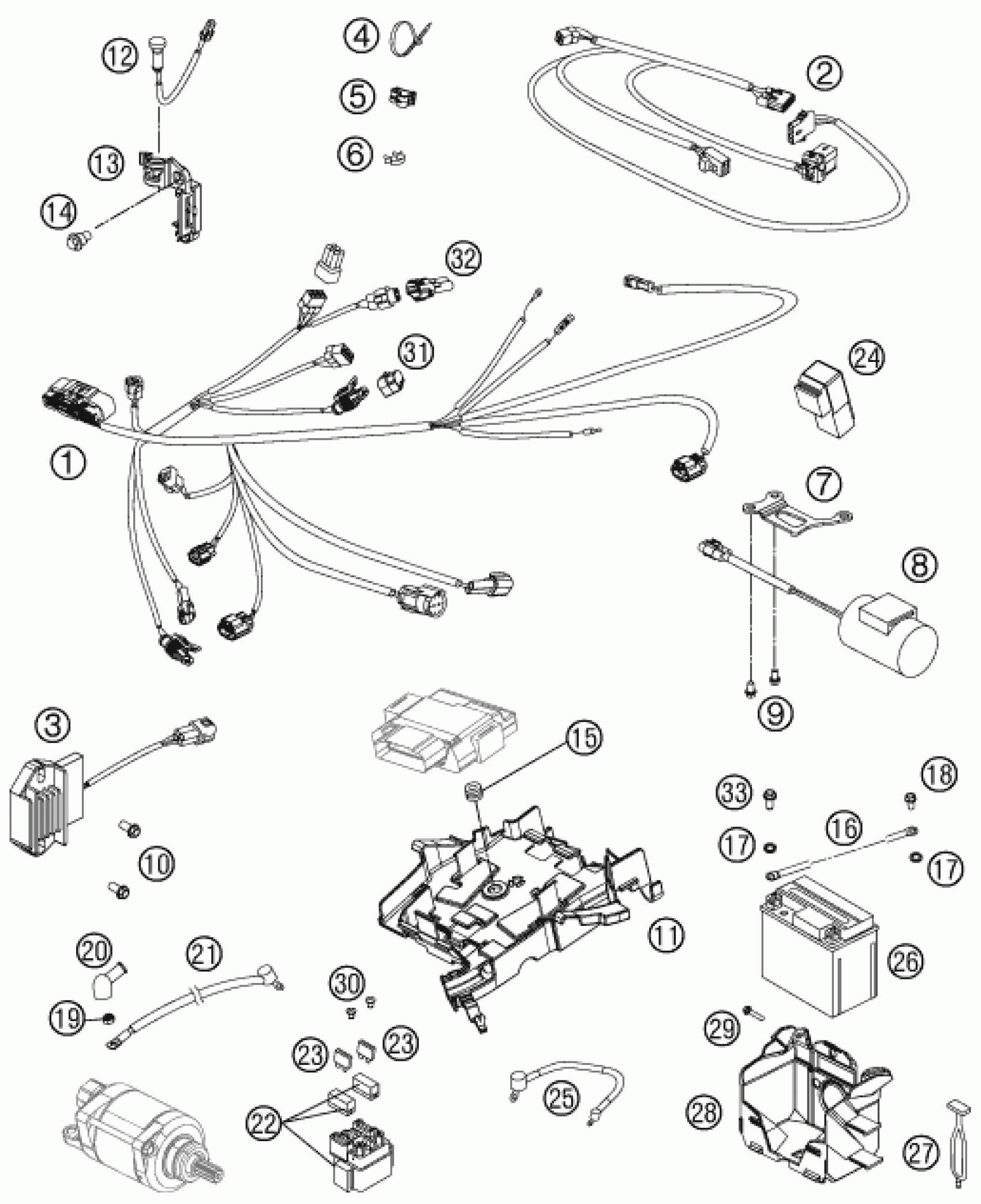

KTM 350 SX-F 2012 WIRING HARNESS Diagram

#

Description
Price

33

HH collar screw M5x12 TX30

0025050126

$3.08

1

WIRING HARNESS EFI

77111075100

$297.08

2

WIRING HARNESS E-START

77111085000

$56.65

3

Voltage regulator

77211034000

$188.39

4

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

4

Cable tie 200/4.6mm black

44011076200

Unavailable

4

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

5

Line guide

83013026000

$3.08

6

WIRING HOLDER 16MM

57013072100

Unavailable

7

RETAINING PLATE CONDENSATOR

77211036000

$7.66

8

CONDENSATOR

77111035000

$87.32

9

HH collar screw M6x10 TX30

0025060106

$3.08

10

HH collar screw M6x20 TX30

0025060206

$3.08

11

ELECTRIC BOX

77211094000

$7.38

12

INDICATOR LIGHT LED YELLOW FI

81214083000

$31.13

13

HOLDER INDICATOR LIGHT SX

77214098000

$4.11

14

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

15

PLUG SFL13

55009086000

$2.05

16

GROUND CABLE D=6MM L=140MM '97

58411097100

$8.97

17

CONTACT WASHER M6 VSV-K6

58411098100

$2.05

18

EJOT SPIRAL SCREW SF M5X10-K

0009050106

$2.05

19

Self lock. nut DIN985-M6-A2

0985060003

$2.05

20

Protection cap for starter eng

77240099000

$6.35

21

STARTERCABLE 700 MM '97

58411059100

$23.65

22

Starter reley 12V 99

58211058000

$72.64

23

Plug-in fuse, big 10A

58011109110

$2.05

24

RELAY CM1A-R-12V-H80 07

61111057000

$16.82

25

WIRING HARNESS BATTERY DUKE'99

58711086000

$15.42

26

BATTERY 12V 3AH YTX4L-BS

77311053000

$166.05

27

RUBBER L=145MM

50303018000

$6.44

28

BATTERY BOX

77211055000

$14.67

29

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

30

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

31

DUMMY PLUG MAPSELECTSWITCH

77211010050

$5.23

32

END PLUG CAN-BUS 08

69011040000

$20.00
