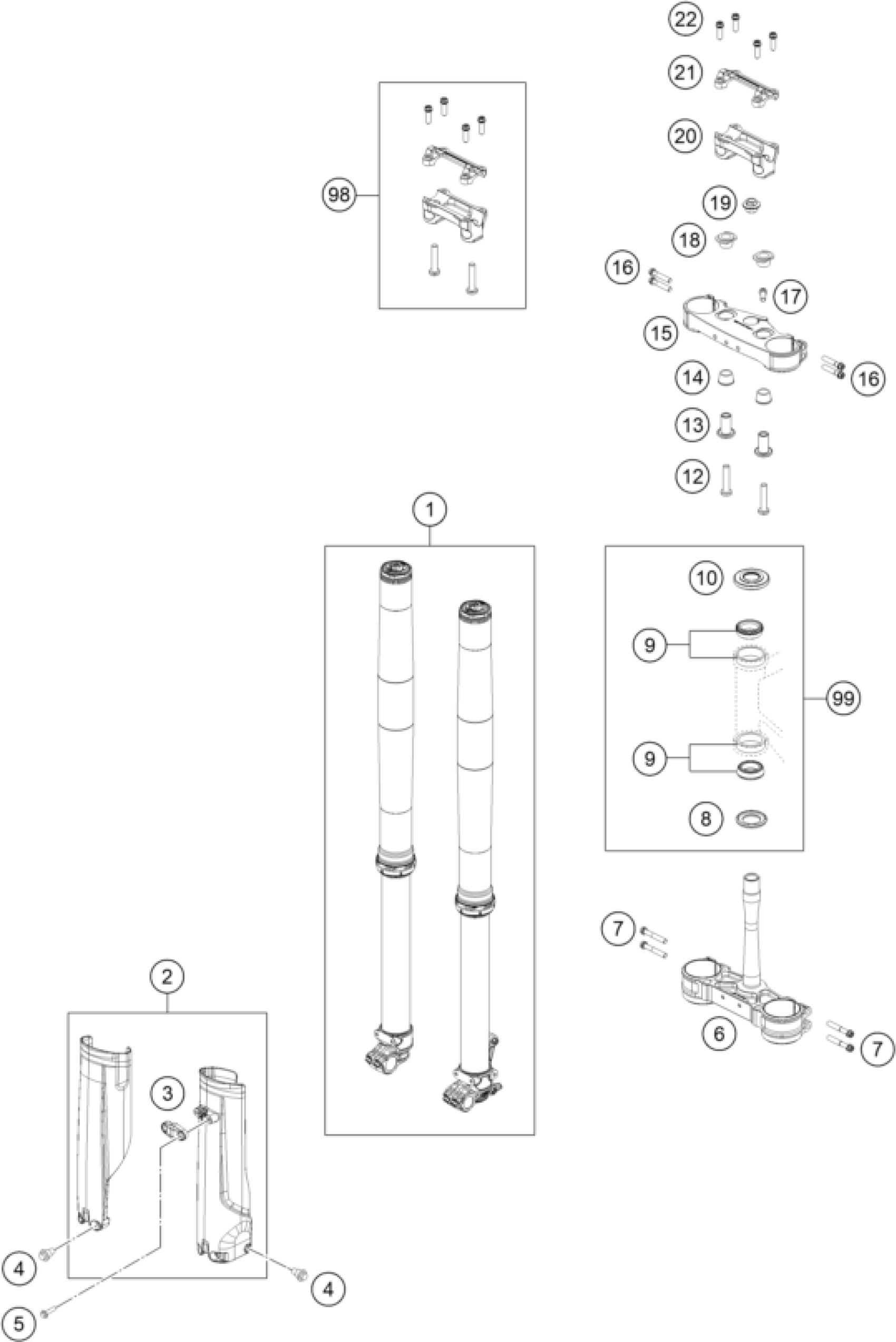

KTM 350 EXC-F SIX DAYS CKD 2024 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

fork KTM 350 EXC-F 24

A490C167X402000

$1,904.85

2

Fork protection kit Six Days 2

A46001094000ABE

Unavailable

3

Clamp for brake hose

77701085100AB

$2.05

4

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

5

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

6

Triple clamp bottom, preass.,

A4600113202204

Unavailable

7

HH collar screw M8x50 TX40

0025080506

$3.08

8

O-RING SUPPORT W. SEALING LIP

77701084000

$19.35

9

TAPERED ROLLER BEARING CPL. 06

54201081100

$51.04

10

Steering head seal

A46001086000

$22.43

12

AH collar screw M10x50 ISA45

0035100509S

$7.10

13

Handlebar mount, bottom part

A46001139034

$26.55

14

RUBBER BUSH

83001040000

$5.23

15

Upper Triple Clamp X=22MM

A4600113402204

Unavailable

16

HH COLLAR SCREW M8X40 TX40

0025080406

$4.11

17

HH COLLAR SCREW M8X25 WS=10

0015080256S

$3.08

18

Rubber bushing

A46001035001

$1.49

19

Collar screw M20x1.5 SW17 Al

A46009082000

$3.08

20

Handlebar mount D28 mm-H36 mm

A48001139036

$58.43

21

HANDLEBAR CLAMP 28MM

79001038000

$69.37

22

HH collar screw M8x25

0025080256

$2.05

98

handlebar mount kit D28mm-H36m

A48001039010

Unavailable

99

Repair Kit steering head beari

A46001081044

Unavailable
