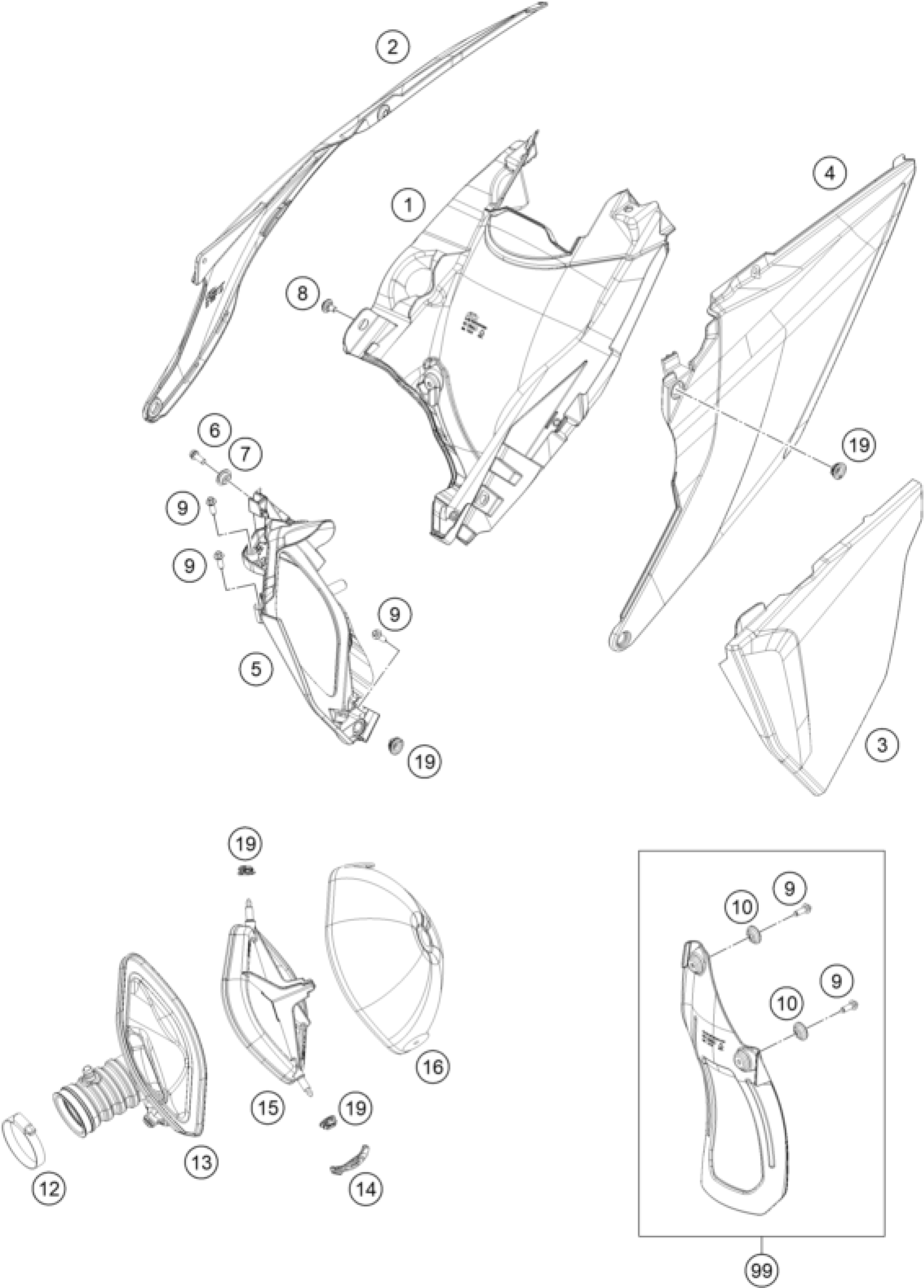

KTM 350 EXC-F SIX DAYS CKD 2023 AIR FILTER Diagram

#

Description
Price

1

Air filter box

79106001000AB

$29.91

2

Air filter cover right

79106104000HDA

$48.27

3

Air filter box cover left

79106103000HDA

$38.67

4

Air filter cover left

79106105000HDA

$48.27

5

Air filter box front part

79106001010AB

$17.57

6

HH collar screw M6x16 TX30

0025060166

$3.08

7

COLLAR BUSH. F.REAR FENDER 07

77308013010

$5.23

8

SPECIAL SCREW M6X15X3

83008000015

$3.08

9

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

10

Chain slider bushing

77304066150

$1.49

12

HOSE CLAMP 45-65MM

78006027000

$5.23

13

INTAKE BELLOWS

79206026000

Unavailable

14

FILTER MOUNTING BRACKET

79006017000

$2.05

15

AIR FILTER SUPPORT

79006016000

$24.77

16

AIR FILTER

79006015000

$32.12

19

quick release rubber grommet

47106003160

$4.11

99

SPLASH PROTECTOR KIT

79006010010

$24.49
