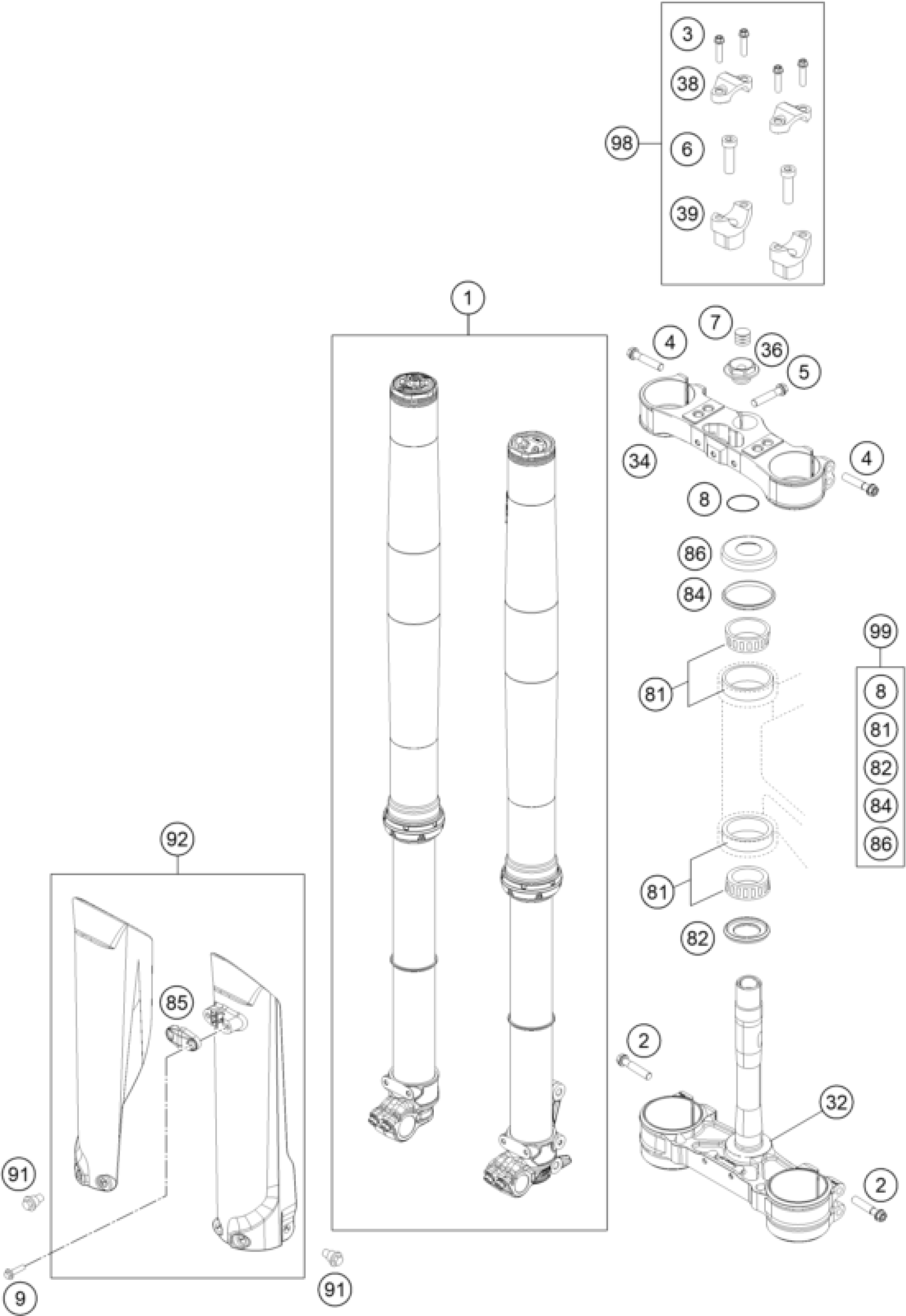

KTM 350 EXC-F FACTORY EDITION 2022 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

Fork 350 EXC-F Wess Edition 20

34158U6701

Unavailable

2

HH collar screw M8x50 TX40

0025080506

$3.08

3

HH collar screw M8x25

0025080256

$2.05

4

HH COLLAR SCREW M8X40 TX40

0025080406

$4.11

5

HH COLLAR SCREW M8X25 WS=10

0015080256S

$3.08

6

AH-COLLAR SCREW M10X35 ISA45

0032100356S

$4.11

8

O-RING 25X3,55 NBR70 05

0770025035

$1.49

9

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08

32

Triple clamp bottom cmpl.

7770123202204

$350.43

34

Triple clamp X=22mm

7720113402204

$271.80

36

COLLAR SCREW M20X1,5 WS17 AL

72001036000

$11.49

38

HANDLEBAR CLAMP 28MM

77201038000

$25.05

39

Handlebar mount D28mm-H32mm

59401039032

Unavailable

39

Handlebar mount D28mm-H37mm

59401039037

$34.12

39

Handlebar mount D28mm-H42mm

59401039042

Unavailable

81

TAPERED ROLLER BEARING CPL. 06

54201081100

$51.04

82

O-RING SUPPORT W. SEALING LIP

77701084000

$19.35

84

STEARING HEAD GASKET TOP

54601184000

$7.10

85

Clamp for brake line

77701085100EB

$5.23

86

STEERING HEAD COVER

78101086000

$6.07

91

SPECIAL SCREW M6X12,5 WS=8

59001092050

$2.05

92

Fork protector kit EXC Factory

77701094100EBP

Unavailable

98

HANDLEBAR SUPPORT KIT D28/H37

00050000921

Unavailable

99

STEARING HEAD REP. KIT 06-15

00050000930

Unavailable

7

PLUG SFL13

55009086000

$2.05
