Description

Price

1

silencer

A49005081000

Unavailable

2

Endcap cpl.

79105081160

Unavailable

3

SCREW TORX M5X10

78105081010

$2.05

4

O-RING 80,00X2,00 VITON

0770800021

$6.91

5

DUMMY RIVET 4,8X 8 NIRO

0011480800

$3.08

6

Rockwool preformed

A46005078080

$16.63

7

insulating material formed par

79105081085

$64.23

8

DAMP. COMPON. BLACK

77205068000

$6.54

9

BUSHING 7.5x12x28x8.3 11

77205169000

$6.07

10

Pair of washers M6 NORDLOCK

50233041000

$4.11

11

HH collar screw M6x30 TX30

0025060306

$3.08

12

exhaust manifold rear

A49005010000

$144.08

13

exhaust spacer

79105098000

$5.51

14

Tension spring L=62mm

A46005016000

$4.57

15

Manifold EXC / FE 350

A47005009000

$271.70

16

LAMBDA SENSOR

75041090200

$327.34

17

Damper gray

79105068000

$8.03

18

BUSHING 8.5x12x28x8.3

77805069000

$5.98

19

Catalytic converter

A49005091000

Unavailable

20

HH collar screw M8x20

0025080206

$2.05

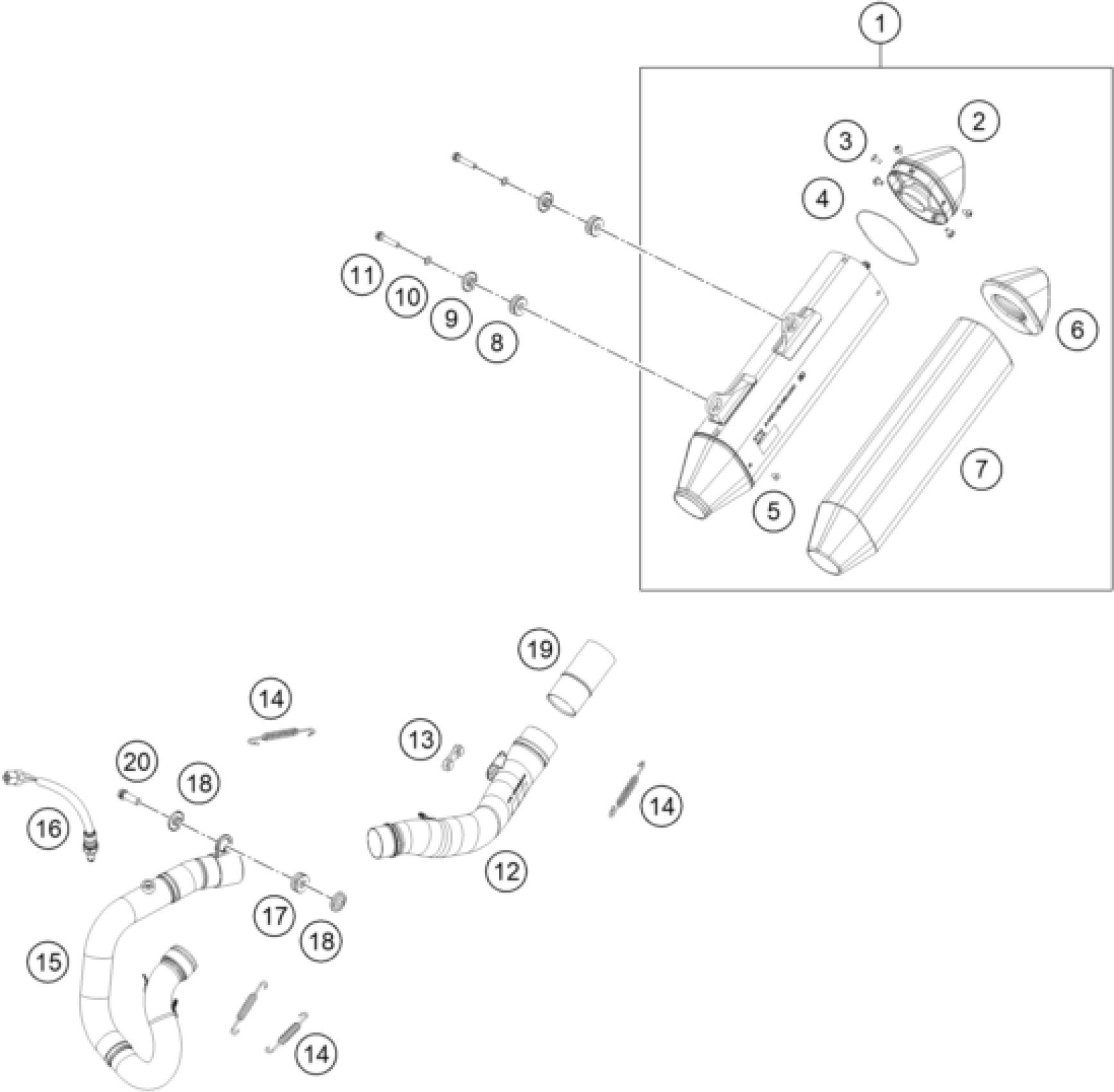

KTM 350 EXC-F 2024 EXHAUST SYSTEM Diagram

silencer

Endcap cpl.

SCREW TORX M5X10

O-RING 80,00X2,00 VITON

DUMMY RIVET 4,8X 8 NIRO

Rockwool preformed

insulating material formed par

DAMP. COMPON. BLACK

BUSHING 7.5x12x28x8.3 11

Pair of washers M6 NORDLOCK

HH collar screw M6x30 TX30

exhaust manifold rear

exhaust spacer

Tension spring L=62mm

Manifold EXC / FE 350

LAMBDA SENSOR

Damper gray

BUSHING 8.5x12x28x8.3

Catalytic converter

HH collar screw M8x20
