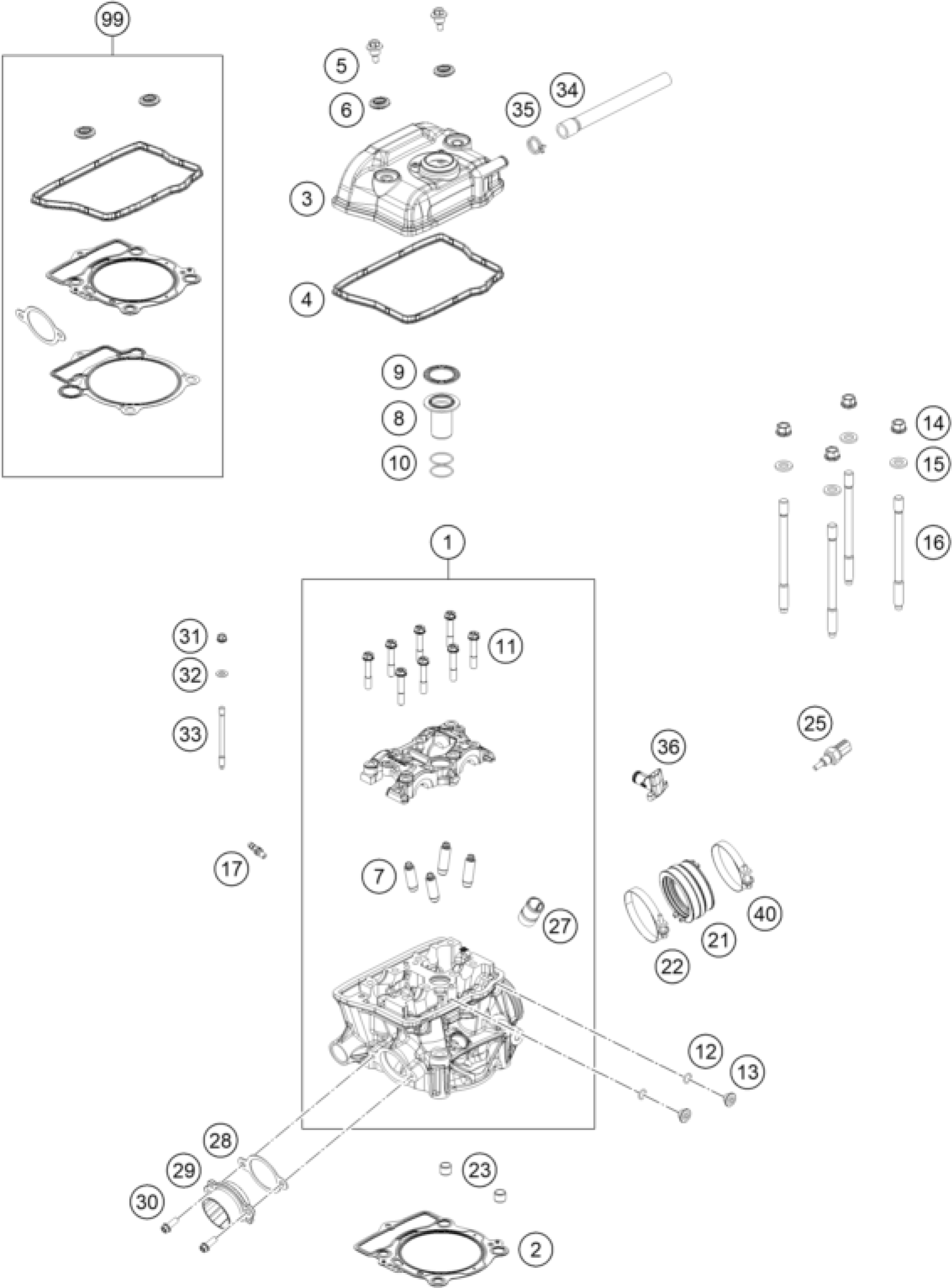

KTM 350 EXC-F 2024 CYLINDER HEAD Diagram

Cylinder Head cpl.

A47036520144

$644.77

Cylinder head gasket

79330036086

$52.26

valve cover

A47036052000C1

$44.03

Valve cover seal

A46036053000

$4.11

VALVE COVER SCREW

77336054150

$5.23

RUBBER GASKET FOR SCREW

77036054150

$4.11

VALVE GUIDE OUTLET

77136026001

$27.85

Spark plug shaft insert

A46036075000

$10.65

GASKET SPARK-PLUG SHAFT

77336053050

$5.88

O-ring 23x1.5 Viton

07702300151

$5.23

Collar screw M7x1x38

0000150703800

$1.49

O-RING 9X1,5 NBR

0770090015

$2.05

threaded plug

77236080100

$6.63

COLLAR NUT M10X1,25 SW13

77336088210

$2.05

washer 19x10.5x2.5

77336089010

$4.11

Stud M10x1,25

0900000814500

$4.11

Vacuum fitting M6

60036123000

$9.53

rubber sleeve

79536044000

$28.60

Hose clamp GEMI 63mm 05

61036047000

$7.56

dowl sleeve 10.2x12.5x10

58530014100

$4.11

water temperature sensor

79435047000

$23.74

SCREW IN NOZZLE M20X1,5

58030010200

$8.87

Exhaust pipe flange gasket

A46036041000

$6.07

Engine flange

A46036039000

$20.56

HH collar screw M6x16 TX30 SL

0025060166S

$2.05

COLLAR NUT M6X1 SW8

77336088106

$12.61

WASHER DIN0125-A 6,4

0125060003

$1.49

Stud M6

0900000607900

$2.05

Engine vent hose

A49030087000

$14.86

CLAMP YDNAC 10173 (18MM)

58431082300

$2.05

Angle piece, engine breather

A47036081000

$5.23

Hose clip GEMI 58

77236048000

$12.05

Gasketkit cylinder

A47030097000

Unavailable
