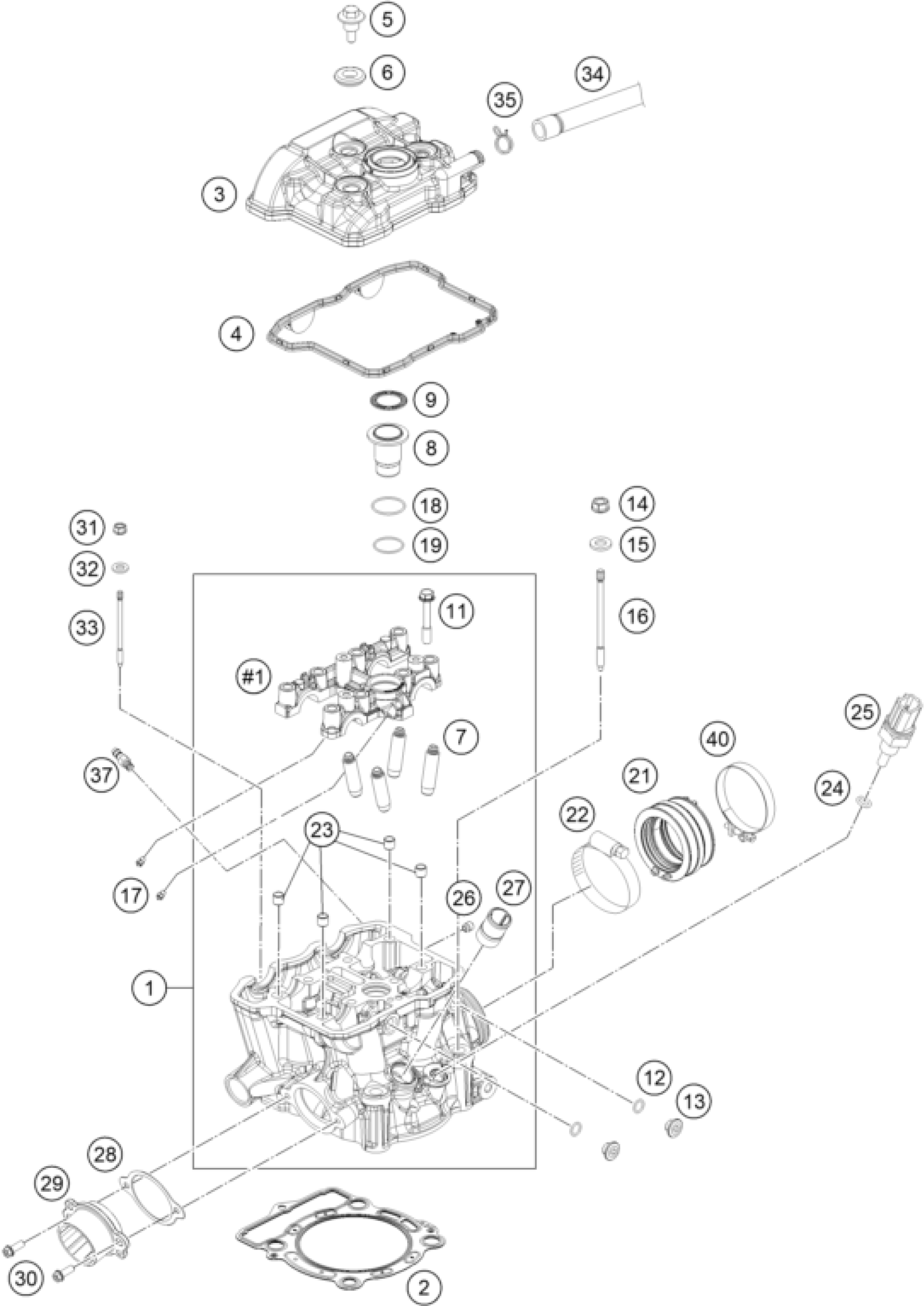

KTM 350 EXC-F 2022 CYLINDER HEAD Diagram

#

Description
Price

1

Cylinder head cmpl.

79336120144

$837.28

2

Cylinder head gasket

79330036086

$52.26

3

Valve cover

7933605200033

$45.99

4

Valve Cover Gasket

79336053000

$7.00

5

VALVE COVER SCREW

77336054150

$5.23

6

RUBBER GASKET FOR SCREW

77036054150

$4.11

7

VALVE GUIDE INTAKT

77236025001

$29.07

8

Spark plug shaft insert

79336075000

$12.80

9

GASKET SPARK-PLUG SHAFT

77336053050

$5.88

11

Collar screw M7x1x42

77330067242

$1.49

12

O-RING 9x1,5 V80 SH

07700900151

$2.05

13

SCREW PLUG

77236080000

$6.63

14

COLLAR NUT M10X1,25 SW13

77336088210

$2.05

15

washer 19x10.5x2.5

77336089010

$4.11

16

STUD BOLT M10X1,25

79230044000

$10.46

17

oil jet 50 M5

60030063050

$9.44

18

O-RING 26X1.5 VITON

07702600151

$1.49

19

O-ring 23x1.5 Viton

07702300151

$5.23

21

RUBBER CUP

79236044100

$38.70

22

Hose clamp GEMI 63mm 05

61036047000

$7.56

23

DOWEL(BUSH BRIDGE)7/9/8 05

77036090000

$5.23

24

o-ring 10.00x2.00 silicone

0770100020

$2.05

25

water temperature sensor

79435047000

$23.74

26

SCREW PLUG

59030296000

$6.26

27

SCREW IN NOZZLE M20X1,5

58030010200

$8.87

28

GASKET EXHAUST FLANGE

77236041000

$10.93

29

ENGINEFLANGE

77236139000

$49.73

30

HH collar screw M6x16 TX30 SL

0025060166S

$2.05

31

COLLAR NUT M6X1 SW8

77336088106

$12.61

32

WASHER DIN0125-A 6,4

0125060003

$1.49

33

STUD BOLT M6

79230043000

$7.66

34

ENGINE BREATHER TUBE

77538087000

$11.02

35

YDNAC-clamp 10173 (16MM)

58431082100

$1.49

37

VACUUM CONECTION M6/0,5MM

60036023100

$28.23

40

Hose clip GEMI 58

77236048000

$12.05
