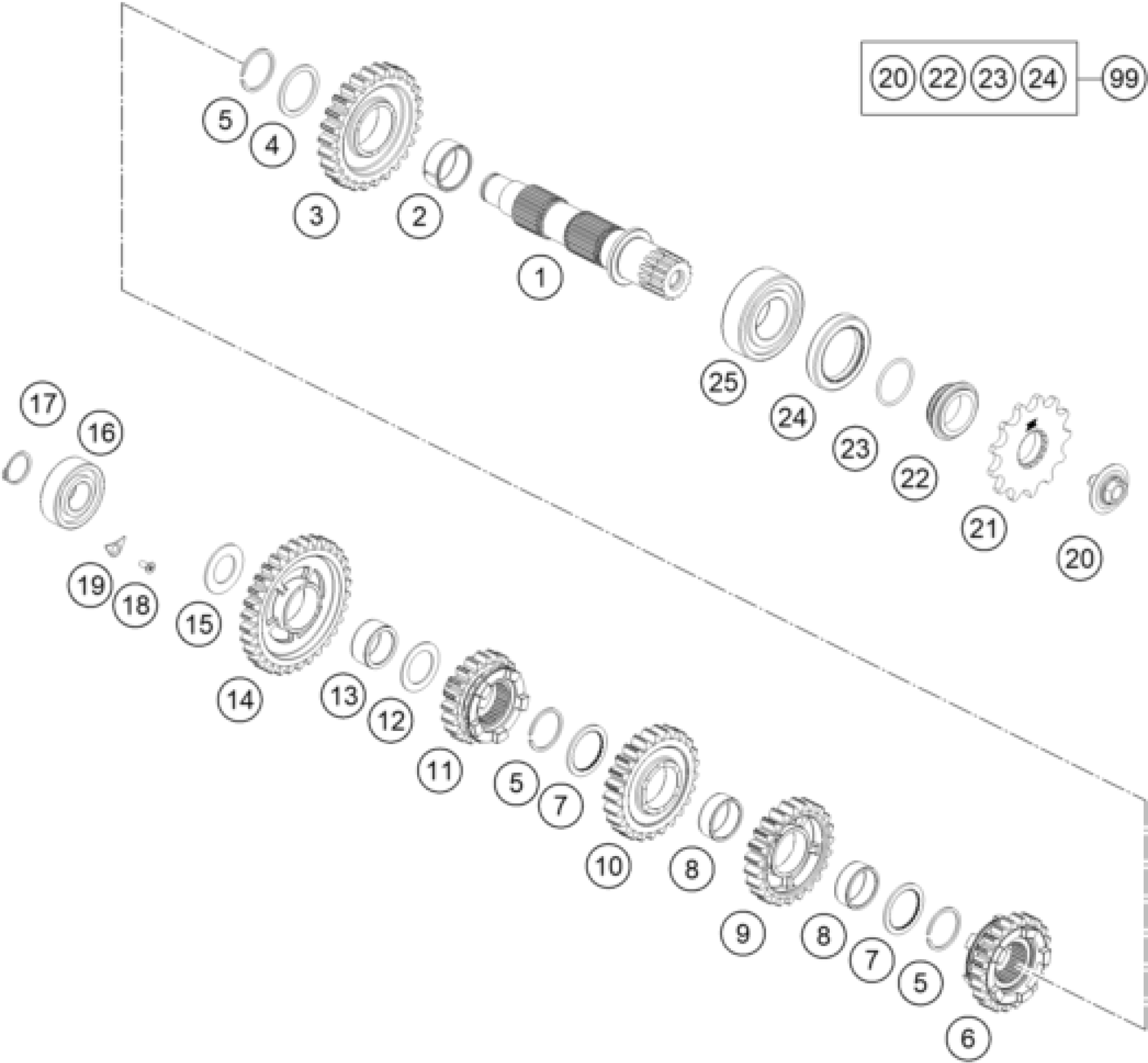

KTM 350 EXC-F 2019 TRANSMISSION II - COUNTERSHAFT Diagram

#

Description
Price

1

Output shaft

79333110000

$176.32

2

NEDDLE BEAR. K24X28X11,9 DIV.

0405242812

$7.28

3

Idler gear, 2nd gear, teeth=26

79333112000

Unavailable

4

STOP DISC 25X31X1,5

54833044000

$5.23

5

CIRCLIP WS24

0417024000

$2.05

6

Sliding gear, 5th gear, teeth=

79333115000

$83.67

7

STOP DISC 25X0,8X30X30X7H

54833043000

$5.23

8

NEEDLE BEAR.K 22X26X10 DIVIDED

0405222611

$11.68

9

Idler gear, 4th gear, teeth=23

79333114000

$116.77

10

Idler gear, 3rd gear, teeth=25

79333113000

$123.22

11

Sliding gear, 6th gear, teeth=

79333116000

$123.13

12

STOP DISC 20,2X30X1

54833080000

$3.08

13

NEEDLE BEARING K 20X26X12

0405202612

$10.93

14

Idler gear, 1st gear, teeth=32

79333111000

Unavailable

15

STOP DISK 17,2X30X1,3

77233020000

$4.11

16

BALL BEARING 6203 JR2 C3

0625062035

$14.48

17

CIRCLIP DIN 0471-17X1, 5

0471170015

$1.49

18

INT. TORX FLAT HEAD M5X12 T25

0019050121S

$2.05

19

RETAINING PLATE F. CS BEARING

75030085000

$1.49

20

SCREW 10.9+SPRING WASHER

59033034044

$7.85

21

Sprocket 13-t

79233029013

Unavailable

21

Sprocket 14-t

79233029014

$30.94

23

O-RING 25,12X1,78 NBR70

0770020220

$3.08

24

SHAFT SEAL RING 32X45X7 BSLNBR

0760324571

$5.23

25

cylindrical roller bearing NJ2

49030023000

$74.42

99

COUNTER SHAFT REP.KIT 4 STROKE

00050000941

Unavailable

22

SPACER SLEEVE COUNTER

78133014000

$28.42
