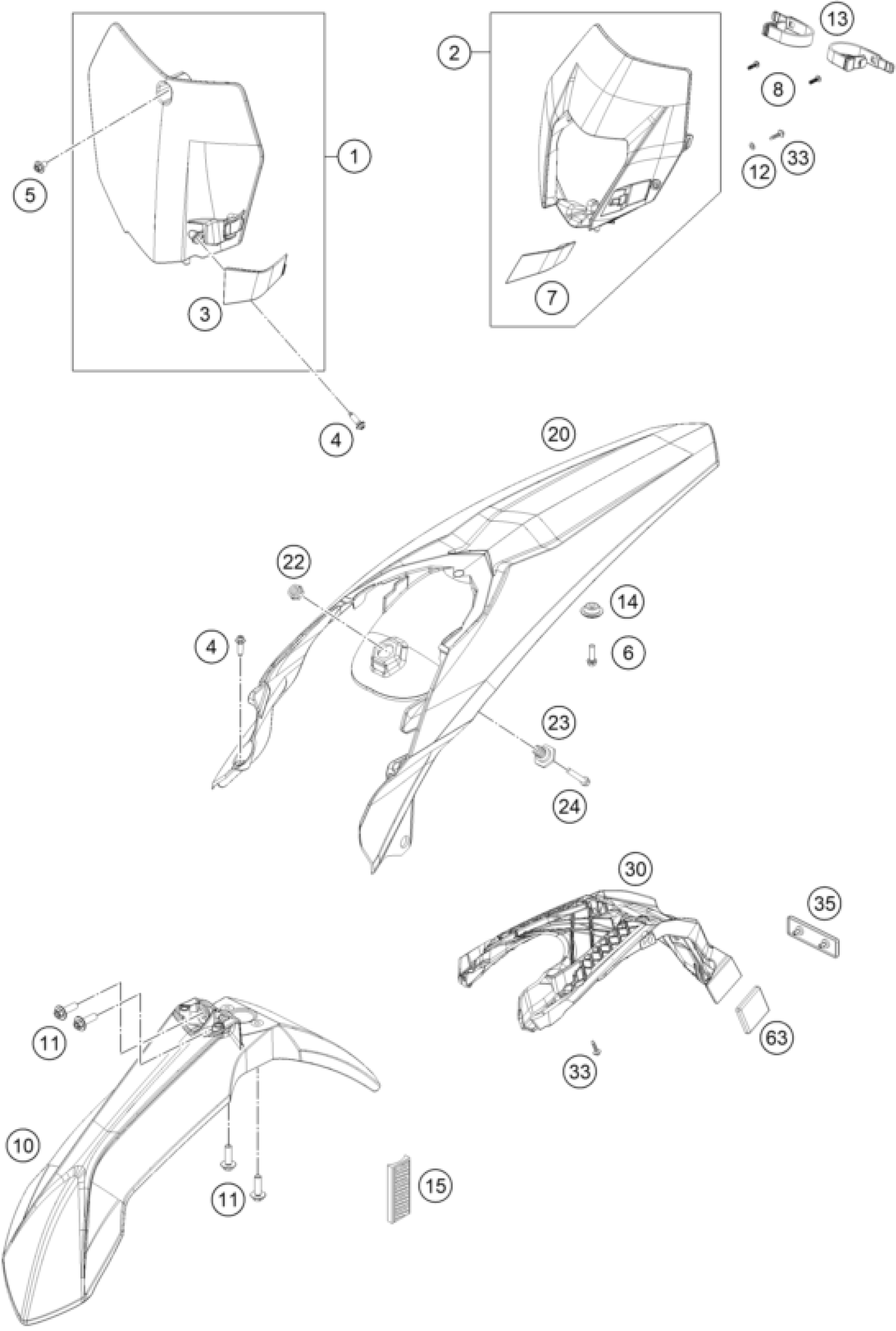

KTM 350 EXC-F 2016 MASK, FENDERS Diagram

#

Description
Price

5

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

6

HH collar screw M6x20 TX30

0025060206

$3.08

7

BRAKE HOSE GUIDE

7810802200004

$9.06

8

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

10

FRONT FENDER ORANGE 13

7770801000004

$30.94

11

HH collar screw M6x16 TX30

0025060166

$3.08

12

WASHER DIN0125-A 6,4

0125060003

$1.49

13

MASK RUBBER

78108003000

$11.96

14

COLLAR BUSH. F.REAR FENDER 07

77308013010

$5.23

15

REFLECTOR YELLOW '99

58412080100

$7.75

20

REAR PART ORANGE

7810801300004

$72.17

22

COLLAR NUT M12X1/WS17 H=5MM

50314057050

$6.63

23

BUSHING FOR SEAT FASTENING 03

54807048000

$10.65

24

HH collar screw M6x25 TX30

0025060256

$3.08

30

NUMBER PLATE CARRIER USA

78108116000

$29.72

33

SCREW FOR PLASTIC K60X20 SW6

0017060205

$2.05

35

REFLECTOR RED

58412080000

$5.23

63

SIDE REFLECTOR RED REAR

16512180100

$7.10

1

STARTNUMBER PLATE CPL. ORANGE

7770800704404

$23.23

2

HEAD LIGHT MASK ORANGE

7810800100004

$26.64

3

BRAKE HOSE GUIDE BLACK 13

7770802200030

$3.08

4

SCREW F. PLASTIC K60X20AL SW6

0017060206

$3.08
