Description

Price

23

ANGLE PIECE '97

50303089000

$5.23

24

PVC-HOSE 6X9

50335030001

Unavailable

25

RADIATOR HOSE CPL.+Y-CONNECT.

77235025033

$60.77

26

RAD.HOSE CPL. W. THERM. '12

77535026033

$101.35

27

O-RING 32,00X2,00

0770320020

$2.05

28

THERMOSTAT 70 DEGREE 04

59435017000

$42.25

29

SCREW FOR PLASTIC D=4X18

0016040183

$2.05

34

RADIATOR PROTECTION BLACK 07

7733503400030

Unavailable

35

HOSE CONNECTOR L=172,5

77235073000

$23.93

40

RUBBER SLEEVE D=12MM

41001052000

$4.11

41

WASHER FOR RADIATOR 08

77335001000

$2.05

42

COLLAR SCREW M6X12 TX

0023060123

$2.05

45

CLAMP YDNAC 10096F (9,6MM)

59007017000

$2.05

7

RADIATOR L/S ''55623U'' 12

77035007300

$285.26

8

RADIATOR R/S ''55556U'' 12

78035008100

$269.27

9

RADIATOR CAP SMALL 1,8 BAR

77335016000

$22.62

19

Y-CONNECTOR CPL.

77235071044

$53.38

20

HOSE CLAMP GEMI 18-29

10001020000

$2.05

21

HOSE CLAMP NORMA 14/24

42013037400

$2.05

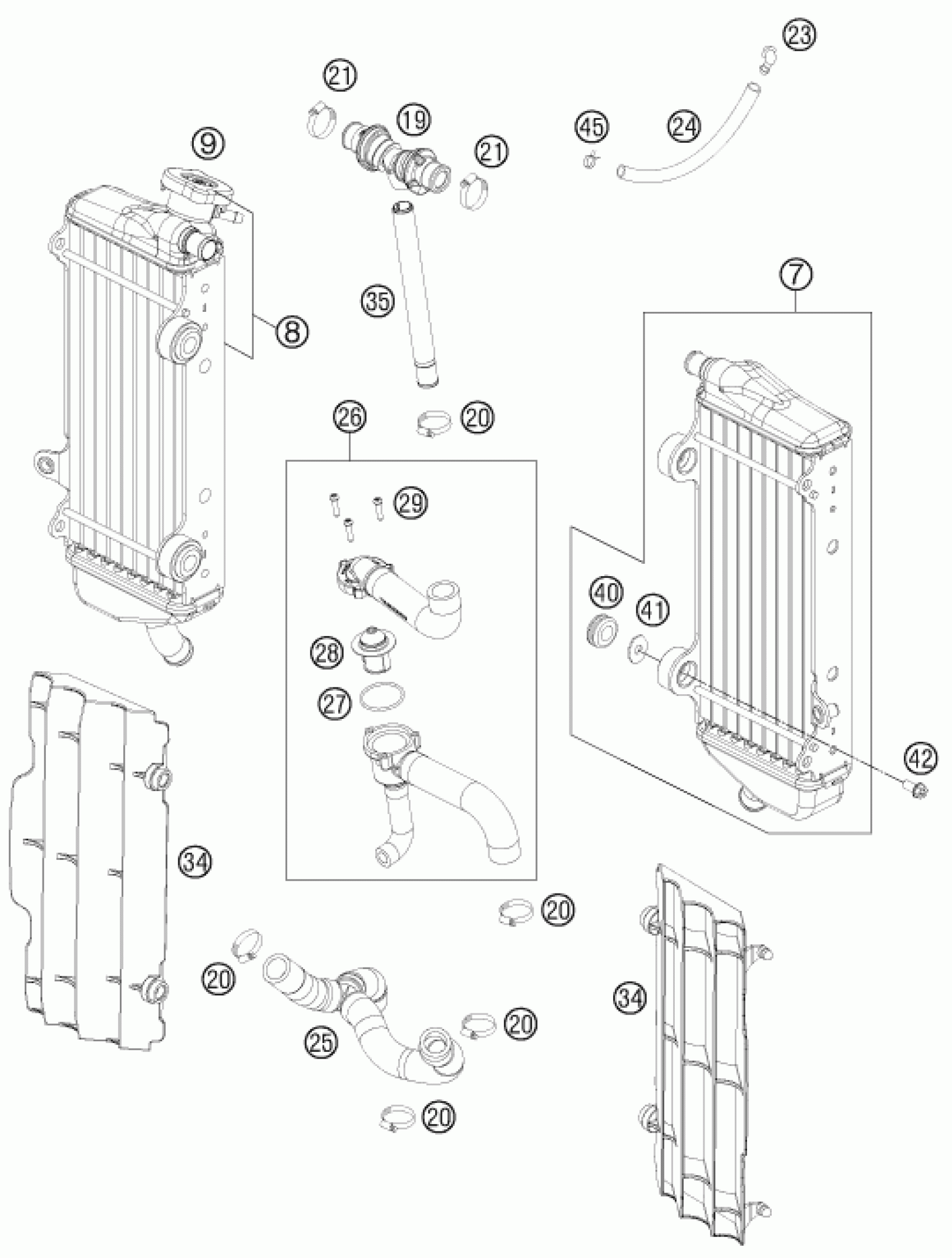

KTM 350 EXC-F 2013 COOLING SYSTEM Diagram

ANGLE PIECE '97

PVC-HOSE 6X9

RADIATOR HOSE CPL.+Y-CONNECT.

RAD.HOSE CPL. W. THERM. '12

O-RING 32,00X2,00

THERMOSTAT 70 DEGREE 04

SCREW FOR PLASTIC D=4X18

RADIATOR PROTECTION BLACK 07

HOSE CONNECTOR L=172,5

RUBBER SLEEVE D=12MM

WASHER FOR RADIATOR 08

COLLAR SCREW M6X12 TX

CLAMP YDNAC 10096F (9,6MM)

RADIATOR L/S ''55623U'' 12

RADIATOR R/S ''55556U'' 12

RADIATOR CAP SMALL 1,8 BAR

Y-CONNECTOR CPL.

HOSE CLAMP GEMI 18-29

HOSE CLAMP NORMA 14/24
