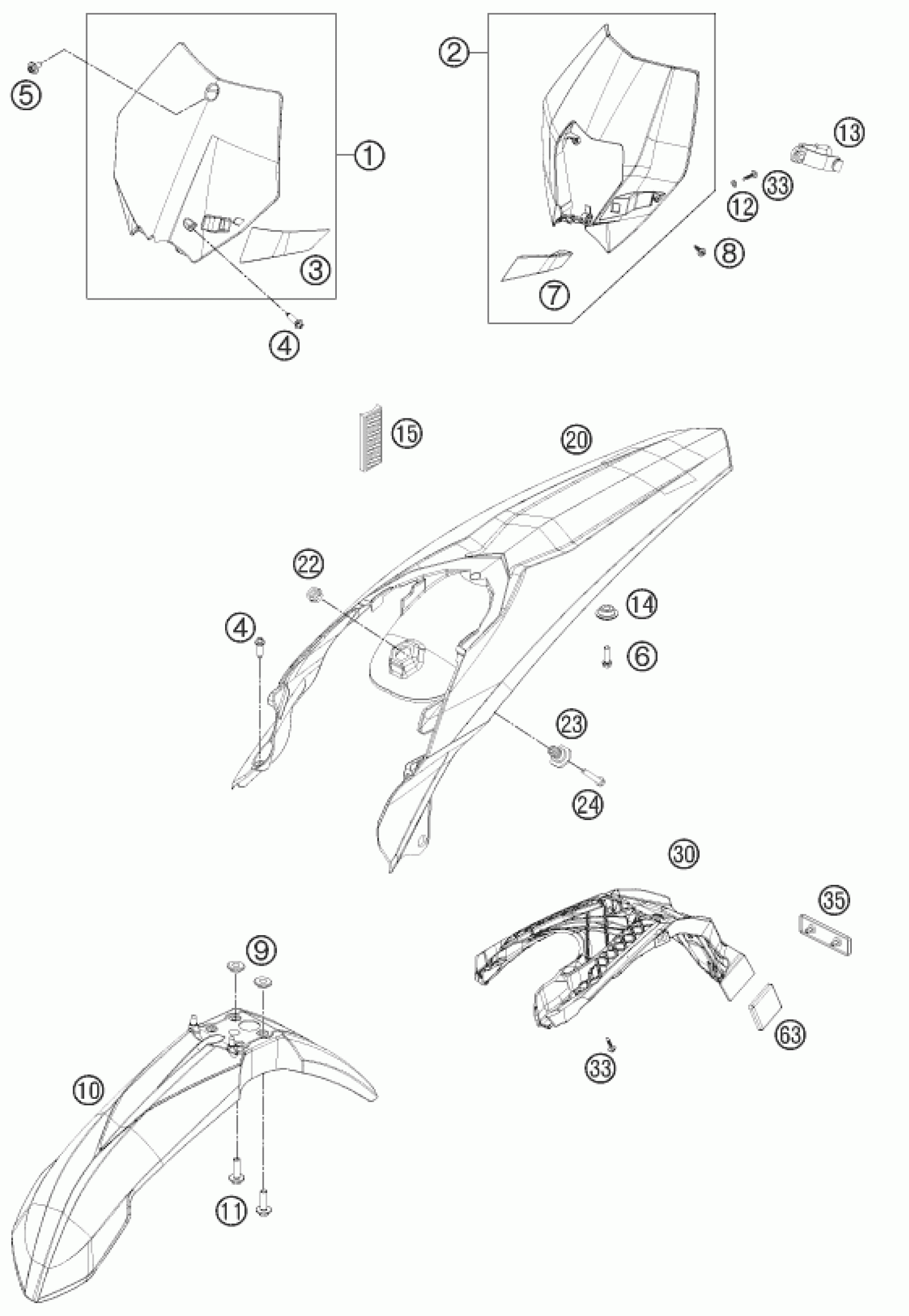

KTM 350 EXC-F 2012 MASK, FENDERS Diagram

#

Description
Price

63

SIDE REFLECTOR RED REAR

16512180100

$7.10

15

REFLECTOR YELLOW '99

58412080100

$7.75

1

START NUMBER PLATE CPL. WHITE

7730800704428

$26.64

2

HEAD LIGHT MASK WHITE 2011

7800800100028

$25.80

3

BRAKE HOSE GUIDE BLACK 08

7730802200030

$7.47

4

EJOT PT SCREW K60X20 ALU WS=6

0017060204

$3.08

5

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

6

HH collar screw M5x20 TX30

0025050206

$2.05

7

BRAKE HOSE GUIDE WHITE

7800802200028

$5.23

8

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

9

SPACER BUSHING 03

54808020000

$4.11

10

FRONT FENDER 07

7730801000004

$30.94

11

HH collar screw M6x20 TX30

0024060206

$3.08

12

WASHER DIN0125-A 6,4

0125060003

$1.49

13

MASK RUBBER UFO WP '95

50211086000

$8.03

14

COLLAR BUSH. F.REAR FENDER 07

77308013010

$5.23

20

REAR PART ORANGE

7810801300004

$72.17

22

COLLAR NUT M12X1/WS17 H=5MM

50314057050

$6.63

23

BUSHING FOR SEAT FASTENING 03

54807048000

$10.65

24

HH collar screw M6x25 TX30

0025060256

$3.08

30

NUMBER PLATE CARRIER USA

78108116000

$29.72

33

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

35

REFLECTOR RED

58412080000

$5.23
