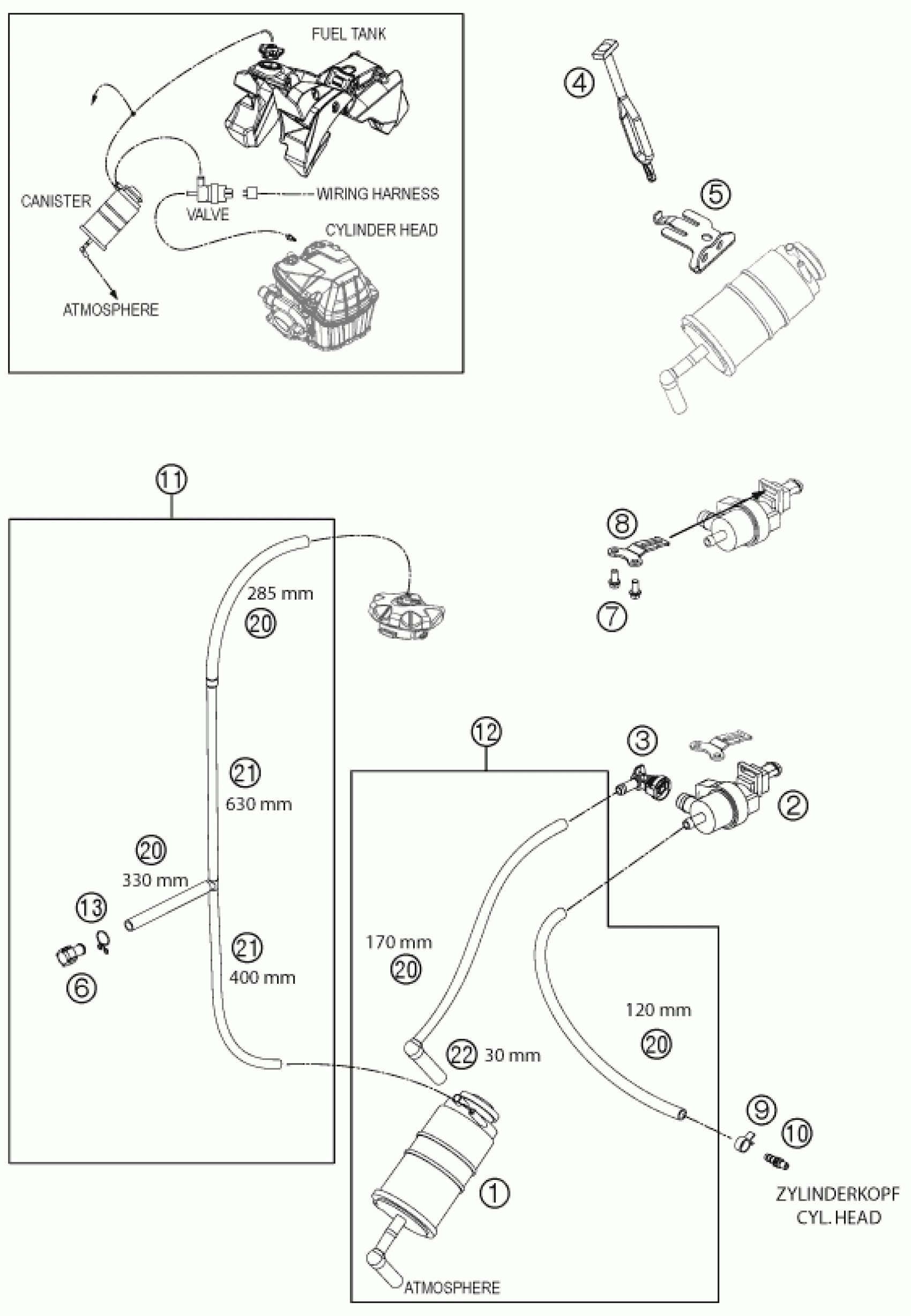

KTM 350 EXC-F 2012 EVAPORATIVE CANISTER Diagram

#

Description
Price

1

EVAPORATIVE CANISTER 08

59415001100

$32.90

2

VALVE FOR CARBON CANISTER 07

61115015000

$63.95

3

FITTING PIECE NQV2 NW7 90°

61115016000

$12.71

4

RUBBER L=145MM

50303018000

$6.44

5

BRACKET EVAP.CANISTER 250/350

77415001050

$17.66

6

PLUG D=6/10 08

78015026000

$5.23

7

HH collar screw M6x8 TX30

0025060086

$2.05

8

BRACKET AKF-VALVE

78115002000

$12.80

9

CLAMP YDNAC 10096F (9,6MM)

59007017000

$2.05

10

VACUUM CONECTION M6/0,5MM

60036023100

$28.23

11

DRAINING EVAP-CAN. CPL. 2011

81215041033

$59.86

12

EVAP CANISTER CPL. '12

78115001033

$49.17

13

HOSE CLAMP YDNAC 10119 11MM

50231005000

$2.05

20

HOSE EPA D=6/10 L=2000MM

78015019000

Unavailable

21

HOSE EPA D=4/8 L=2000MM

78015021000

Unavailable

22

HOSE 8X12 FPM 120MM

60015219120

Unavailable
