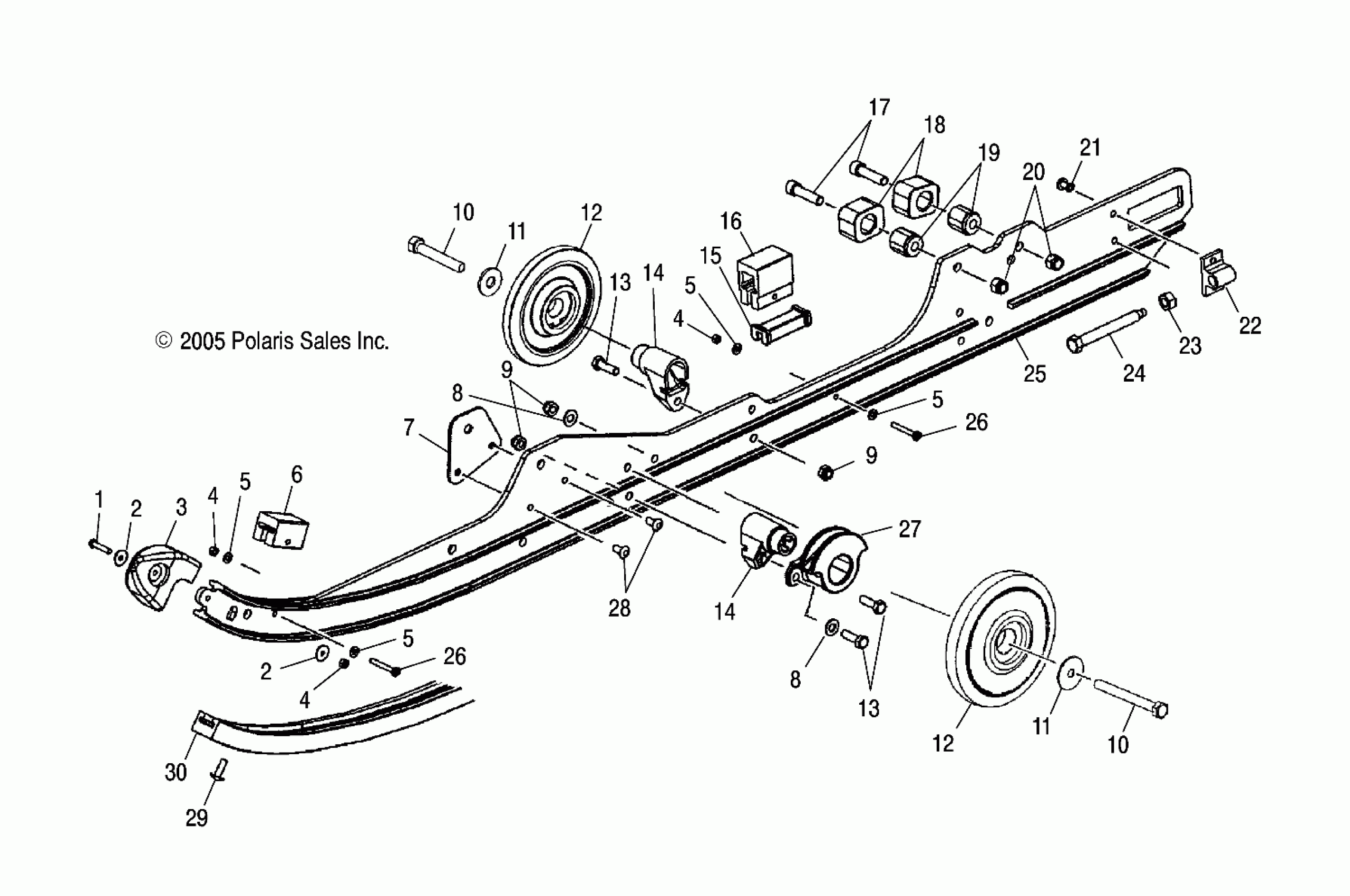

Polaris 340 EDGE TOURING - S07NT3AS/AE SUSPENSION, RAIL MOUNTING - S07NT3AS/AE (49SNOWSUSPRAIL07340TRG) Diagram

#

Description
Price

1

BOLT

7512007

$3.99

2

WASHER

7555792

$4.79

2

WASHER

7555792

$4.79

3

Cap, Rail Tip

5434355

Unavailable

4

Nut, Nylok

7541925

$1.49

4

Nut, Nylok

7541925

$1.49

4

Nut, Nylok

7541925

$1.49

5

Washer, Flat

7555783

$3.99

5

Washer, Flat

7555783

$3.99

5

Washer, Flat

7555783

$3.99

5

Washer, Flat

7555783

$3.99

6

BUMPER, JOUNCE, FRONT

5521499

$8.89

7

Bracket, Rail Reinforcement

5245678

$13.99

8

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

8

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

9

NUT-5/16-18 NYLOK-Y

7542324

$1.49

9

NUT-5/16-18 NYLOK-Y

7542324

$1.49

10

Screw

7515346

$5.59

10

Screw

7515346

$5.59

11

Washer, Spring

7556179

$7.99

11

Washer, Spring

7556179

$7.99

12

RET.RING-TRUARC [1 PER WHEEL]

7718407

$4.79

12

BEARING [1 PER WHEEL]

3514303

$11.99

12

Asm., Wheel, Bogie, Plain

1590317

$48.56

12

Asm., Wheel, Silver

1590318-244

Unavailable

12

RET.RING-TRUARC [1 PER WHEEL]

7718407

$4.79

12

BEARING [1 PER WHEEL]

3514303

$11.99

12

Asm., Wheel, Bogie, Plain

1590317

$48.56

12

Asm., Wheel, Silver

1590318-244

Unavailable

13

BOLT

7515317

$4.79

13

BOLT

7515317

$4.79

14

Block, Mount, Wheel

5631065

$28.32

14

Block, Mount, Wheel

5631065

$28.32

15

LINER-BUMPER

5432946

$9.70

16

BUMPER, JOUNCE, REAR

5521498

$8.89

17

BOLT

7515537

$10.99

18

BUMPER, PIVOT ARM

5410925

$12.94

19

MOUNT, BUMPER

5131113

$28.32

20

Nut, Nylok

7542439

$1.49

21

RIVET

7621501

$2.39

22

Block, Idler Bolt Adjusting

5132444

$28.32

23

Nut

7547156

$9.59

24

Screw

7517773

$28.56

25

Asm., Rail, LH [Incl. 3,6,16,22]

1541684

Unavailable

25

Asm., Rail, RH [Incl. 3,6,16,22]

1541685

$319.99

26

Screw

7510504

$6.76

26

Screw

7510504

$6.76

27

Guide, Spring

5434277

Unavailable

28

RIVET

7661845

$1.49

29

Screw

7515199

$1.49

30

SLIDER

5521633

$40.46
