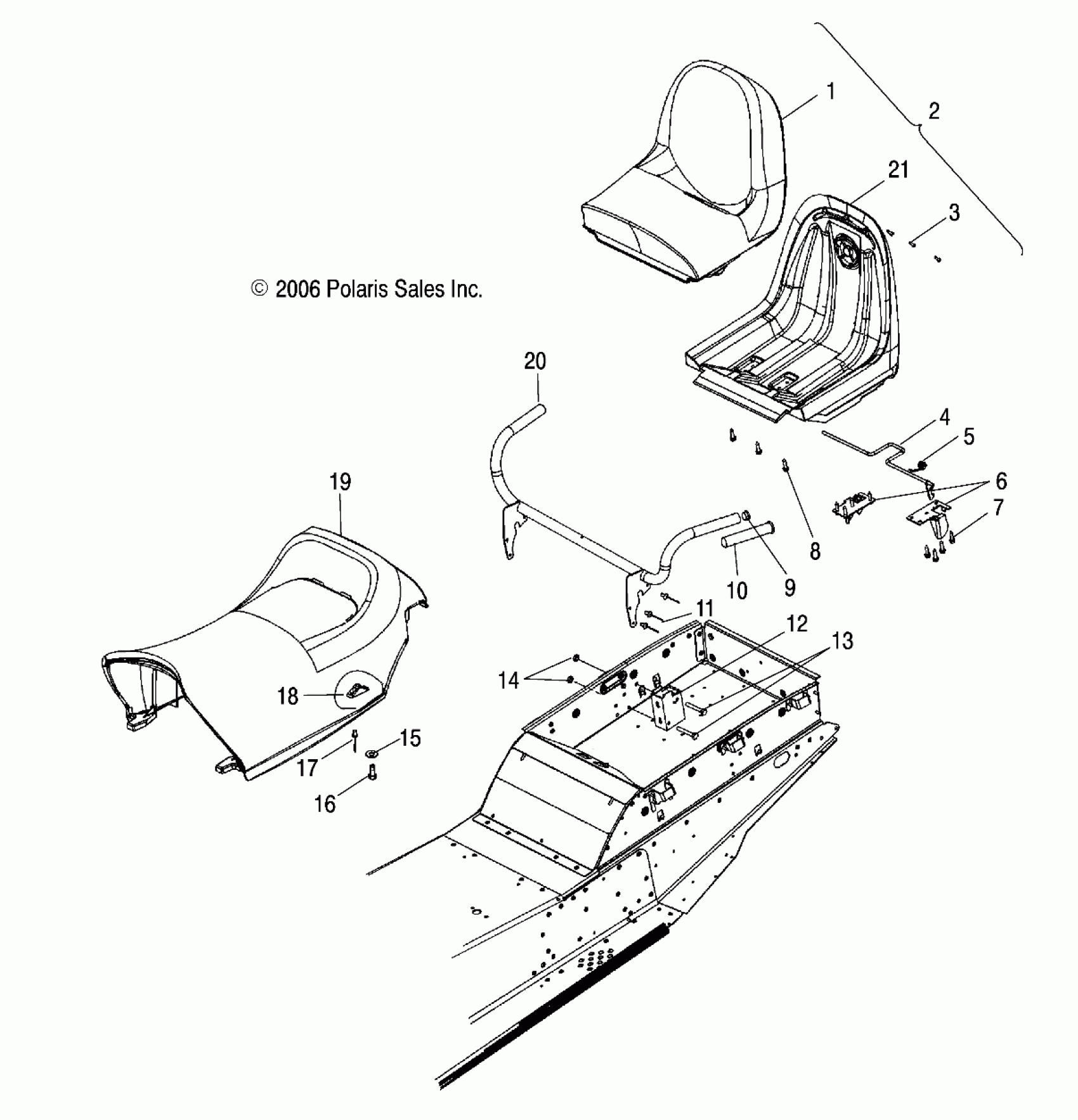

Polaris 340 EDGE TOURING - S07NT3AS/AE SEAT - S07NT3AS/AE (49SNOWSEAT340TOUR) Diagram

#

Description
Price

1

Asm., Base, Seat, Passenger Secondary

2683502

$206.39

1

Asm., Seat Cover, Passenger

2683503

$190.79

2

Asm., Seat, Passenger [Incl. 1-8,21]

2683501

Unavailable

3

SCREW

7512026

$1.49

4

LATCH, SEAT

1015005

$31.99

5

SPRING, SEAT LATCH, TORSION

7042246

$8.79

6

PLATE, LATCH, MOUNT, RH

5249089

Unavailable

6

PLATE, LATCH, MOUNT, LH

5249088

Unavailable

7

RIVET

7621485

$1.49

8

Screw

7512098

$1.59

9

Plug

5431096

$2.02

10

Grip, Handlebar

5432634

$24.27

11

RIVET-3/16-.090-.290

7661637

$1.49

12

TUBE, STRIKER

5246855

Unavailable

13

Bolt

7512130

$3.99

14

Nut, Nylok

7542122

$1.49

15

Washer, Flat

7558301

$1.49

16

SCREW

7517219

$4.79

17

RIVET

7621319

$1.49

18

NUT, SEAT

5631194

$4.99

19

Asm., Seat

2683882

$579.99

19

Asm., Seat Cover

2683883

Unavailable

20

Handle, Grab, Black

1015628-067

$74.39

21

Asm., Base, Seat, Passenger, Primary [Incl. 2-8]

2683071

$115.99
