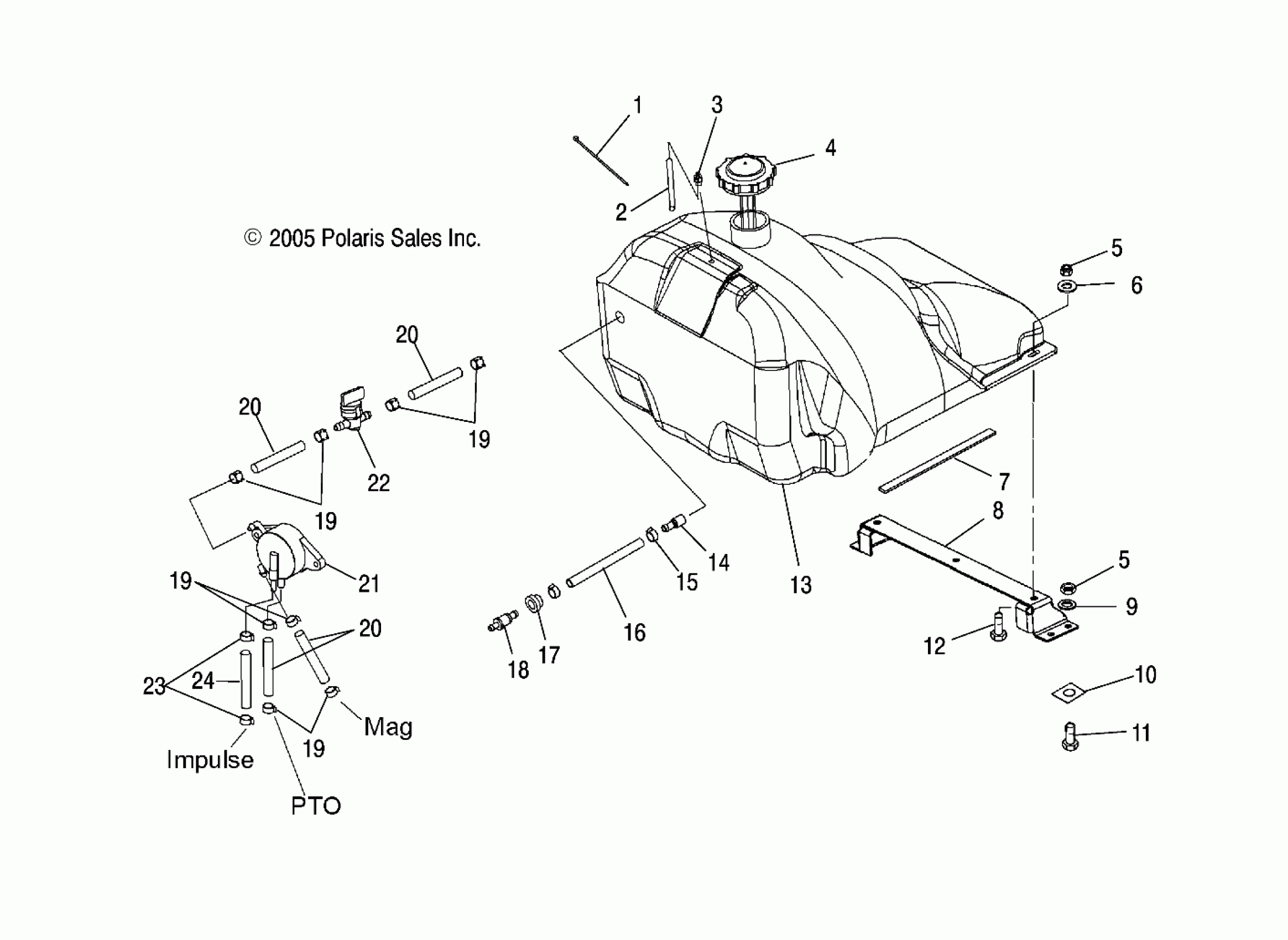

Polaris 340 EDGE TOURING - S07NT3AS/AE FUEL SYSTEM - S07NT3AS/AE (4997299729A07) Diagram

#

Description
Price

1

CABLE TIE, RELEASABLE

7080804

$3.22

2

LINE, FUEL

8450061-600

Unavailable

3

Fitting, 90 Degree

7052095

$4.79

4

Cap, Fuel w/Gauge

2520323

Unavailable

4

Gasket, Fuel Cap

5810512

$9.11

5

Nut, Nylok

7542122

$1.49

5

Nut, Nylok

7542122

$1.49

6

WASHER, FLAT

7555960

$3.99

7

FOAM-SEAL,REAR COOLER

5810947

$4.03

8

Bracket, Gas Tank, Black

5246436-067

$24.79

9

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

10

Nut, Speed

7670021

$6.99

11

BOLT, CARRIAGE

7512193

$2.39

12

Bolt

7512247

$2.39

13

Asm., Fuel Tank [Incl. 3,14-18]

2520466

Unavailable

14

Pickup Fuel, w/Filter

7052301

$12.94

15

RING, COMPRESSION

7080402

$1.60

16

Line, Fuel

8350019-160

Unavailable

17

Grommet

5435941

$7.60

18

Fitting

7052375

Unavailable

19

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

19

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

19

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

19

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

20

Line, Fuel

8350018-600

Unavailable

20

Line, Fuel

8350018-600

Unavailable

20

Line, Fuel

8350018-600

Unavailable

21

Asm., Fuel Pump

3089751

Unavailable

22

VALVE, FUEL

7052248

$24.27

23

HOSE CLAMP, RED

7080003

$1.49

24

Line, Fuel

8450040-600

Unavailable
