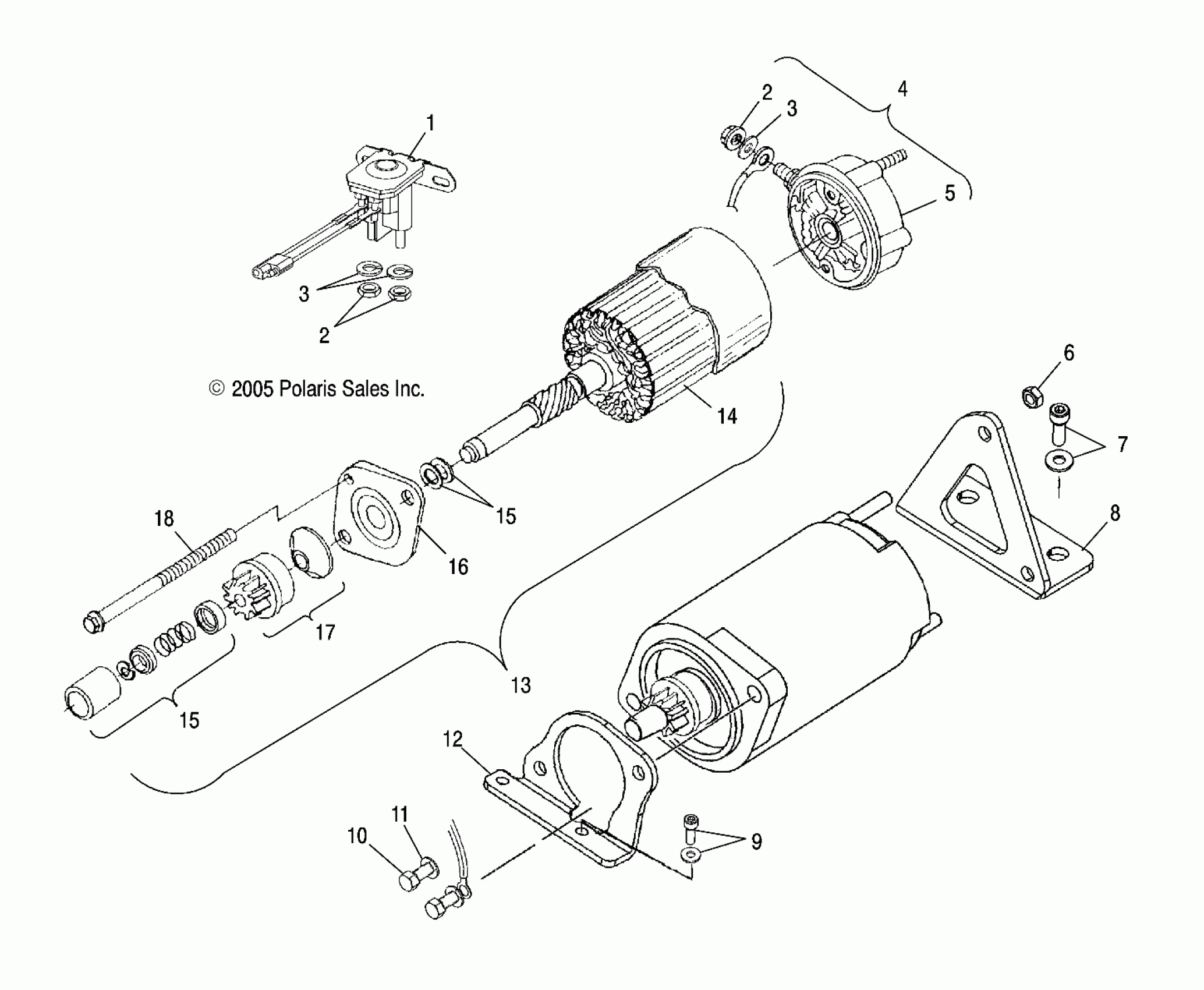

Polaris 340 EDGE TOURING - S07NT3AS/AE ENGINE, STARTING MOTOR - S07NT3AS/AE (4997299729C13) Diagram

#

Description
Price

1

Switch, Magnetic [Incl. 2,3]

4011335

$60.70

2

Nut, Hex

7542105

$3.99

2

Nut, Hex

7542105

$3.99

3

WASHER, SPRING LOCK

7552801

$1.59

3

WASHER, SPRING LOCK

7552801

$1.59

4

Kit, Asm., Commutator Cap [Incl. 5]

2200758

$82.39

5

Kit, Brush and Spring

2200759

$59.99

5

ASM., BRUSH

-------

Unavailable

5

ASM., BRUSH AND SCREW

-------

Unavailable

5

WASHER, INSULATION

-------

Unavailable

5

Nut

-------

Unavailable

5

BUSHING, INSULATION

-------

Unavailable

6

NUT, NYLOK, FLANGED

7542153

$1.59

7

SCREW

7516815

$6.39

8

Bracket, Starter, Rear

5241786

Unavailable

9

Asm., Screw and Washer

7516730

$6.39

10

Screw

7512492

$1.49

11

Washer, Spring Lock

7552603

$1.49

12

Bracket, Starter, Front

5241316

Unavailable

13

Motor, Starter, Domestic

2410748

Unavailable

14

Kit, Asm., Armature

2200756

$169.99

15

Kit, Drive Hardware

2200755

Unavailable

15

SPACER

-------

Unavailable

15

COVER, DUST

-------

Unavailable

15

WASHER, CURVED SPRING

-------

Unavailable

15

Washer, Thrust

-------

Unavailable

15

PINION, STOP

-------

Unavailable

15

RING, LOCK

-------

Unavailable

15

SPRING, ANTIDRIFT

-------

Unavailable

15

Kit, Drive Hardware

2200755

Unavailable

15

SPACER

-------

Unavailable

15

COVER, DUST

-------

Unavailable

15

WASHER, CURVED SPRING

-------

Unavailable

15

Washer, Thrust

-------

Unavailable

15

PINION, STOP

-------

Unavailable

15

RING, LOCK

-------

Unavailable

15

SPRING, ANTIDRIFT

-------

Unavailable

16

Kit, Asm., Drive Cap

2200757

$59.99

17

Kit, Asm., Drive

2200754

Unavailable

17

PLATE, DRIVE

-------

Unavailable

17

PINION

-------

Unavailable

18

Kit, Screw

2200753

$29.99

18

BOLT, THRU

-------

Unavailable
