Partiron

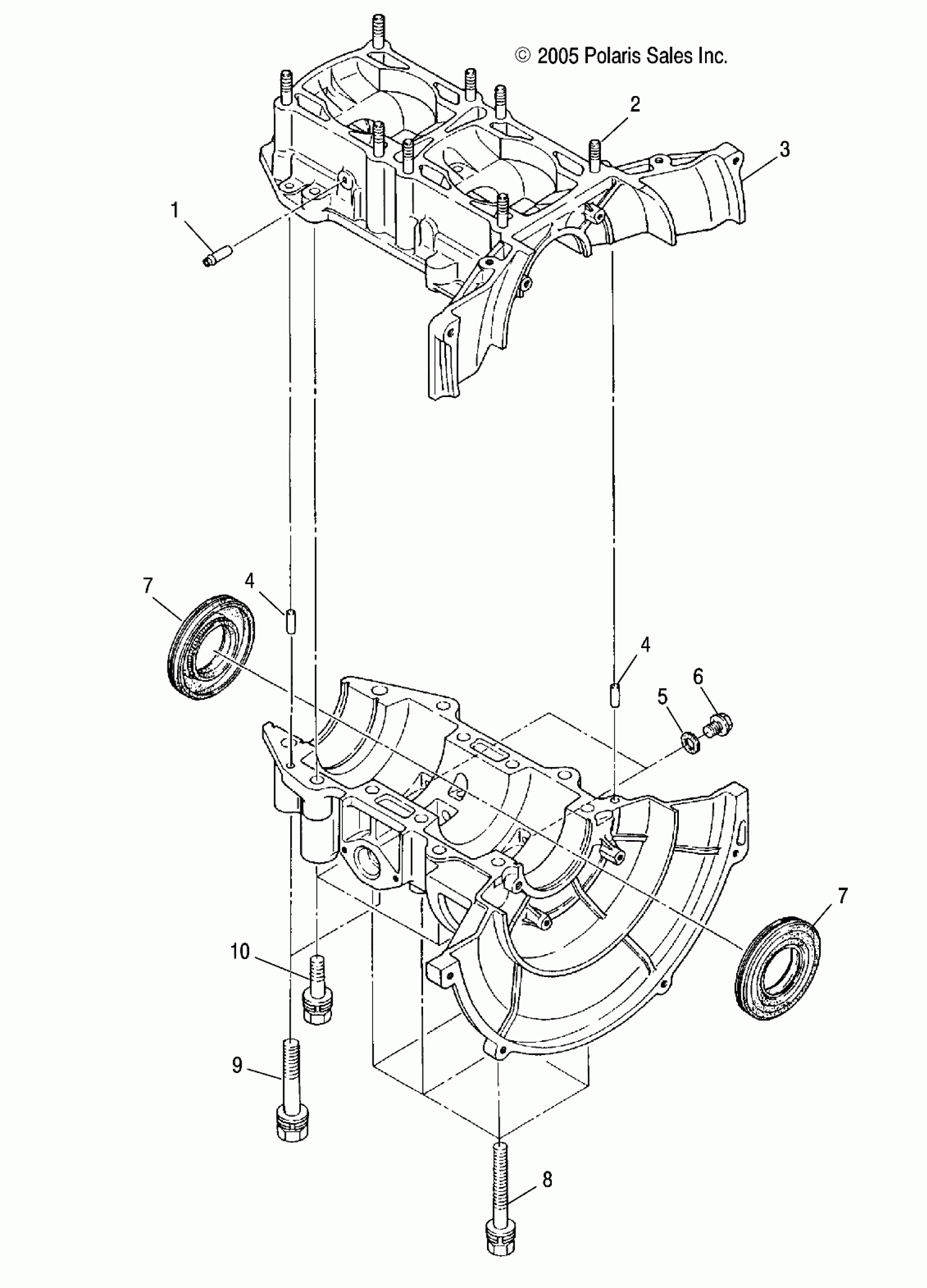

Polaris 340 EDGE TOURING - S07NT3AS/AE ENGINE, CRANKCASE - S07NT3AS/AE (4997299729C05) Diagram

#

Description
Price

1

PIPE, PULSE

3083798

$9.52

2

Stud

3083564

$11.90

3

Asm., Crankcase [Incl. 1-4,8-10]

3089463

$629.99

4

PIN, DOWEL

3086838

$7.19

4

PIN, DOWEL

3086838

$7.19

5

Washer Flat

7555998

$1.49

6

Bolt, Flange

3087256

$3.99

7

Seal, Oil

3083045

$36.41

7

Seal, Oil

3083045

$36.41

8

Asm., Bolt and Washer

3080739

$6.39

9

Asm., Bolt and Washer

3083565

$3.98

10

Asm., Bolt and Washer

3083566

$1.54
