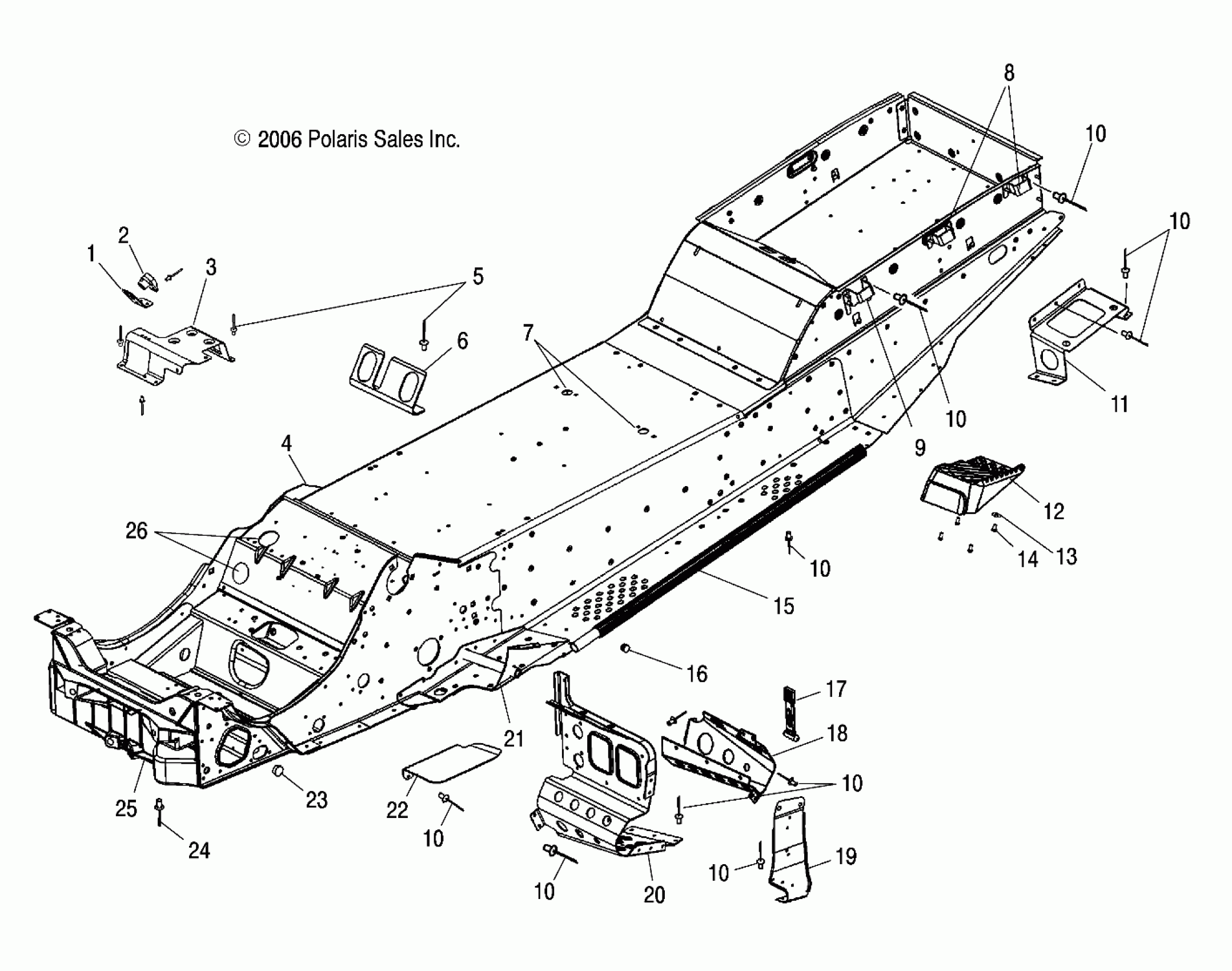

Polaris 340 EDGE TOURING - S07NT3AS/AE CHASSIS - S07NT3AS/AE (49SNOWCHASSIS340TOUR) Diagram

#

Description
Price

1

Bracket, Rope Guide, Black

5222687-067

$59.99

2

GUIDE, RECOIL

5431385

$10.51

3

Bracket, Oil Tank/Hose Support

5246330

$13.19

4

Asm., Chassis, Natural

1014471-309

$1,146.59

5

Rivet

7621432

$1.49

6

Bracket, Airbox

5246177

$18.23

7

Plug, Hole

7081076

$3.22

8

Hook, Cargo, Black

5247225-067

$3.03

9

Hook, Cargo, Front, Black

5246439-067

$3.03

10

RIVET-3/16-.090-.290

7661637

Unavailable

10

RIVET-3/16-.090-.290

7661637

Unavailable

10

RIVET-3/16-.090-.290

7661637

Unavailable

10

RIVET-3/16-.090-.290

7661637

Unavailable

10

RIVET-3/16-.090-.290

7661637

Unavailable

10

RIVET-3/16-.090-.290

7661637

Unavailable

10

RIVET-3/16-.090-.290

7661637

Unavailable

10

RIVET-3/16-.090-.290

7661637

Unavailable

11

Bracket, Lower, Acc., Attach, Black, LH

5246275-067

$21.43

11

Bracket, Lower, Acc., Attach, Black, RH

5246276-067

$20.63

12

Footrest, Passenger, LH [Incl. 14]

5436071

$41.59

12

Footrest, Passenger, RH [Incl. 14]

5436072

$41.59

13

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

14

SCREW

7512076

$1.49

15

Roll, Tunnel, LH

1240166

$29.99

15

Roll, Tunnel, RH

1240167

$31.99

16

PLUG, BARBED

7081085

$7.27

17

STRAP-AIRBOX TOP

5433150

$24.27

18

Mount, Console, Toe Clip, LH

5245457

Unavailable

18

Mount, Console, Toe Clip, RH

5245458

Unavailable

19

Support, Footrest, LH

5246310

$19.83

19

Support, Footrest, RH

5246311

$32.37

20

Footrest, LH

5245288

Unavailable

20

Footrest, RH

5247205

Unavailable

21

Kit, Mount, Trailing Arm, LH

2202059

$213.00

21

Kit, Mount, Trailing Arm, RH

2202598

$124.99

22

Guard, Belt

5246066

Unavailable

23

PLUG, HOLE

7080416

$5.65

24

Rivet

7661130

$1.49

25

Bulkhead, Front

5132292

$115.99

26

Caplug

7080934

$1.83
