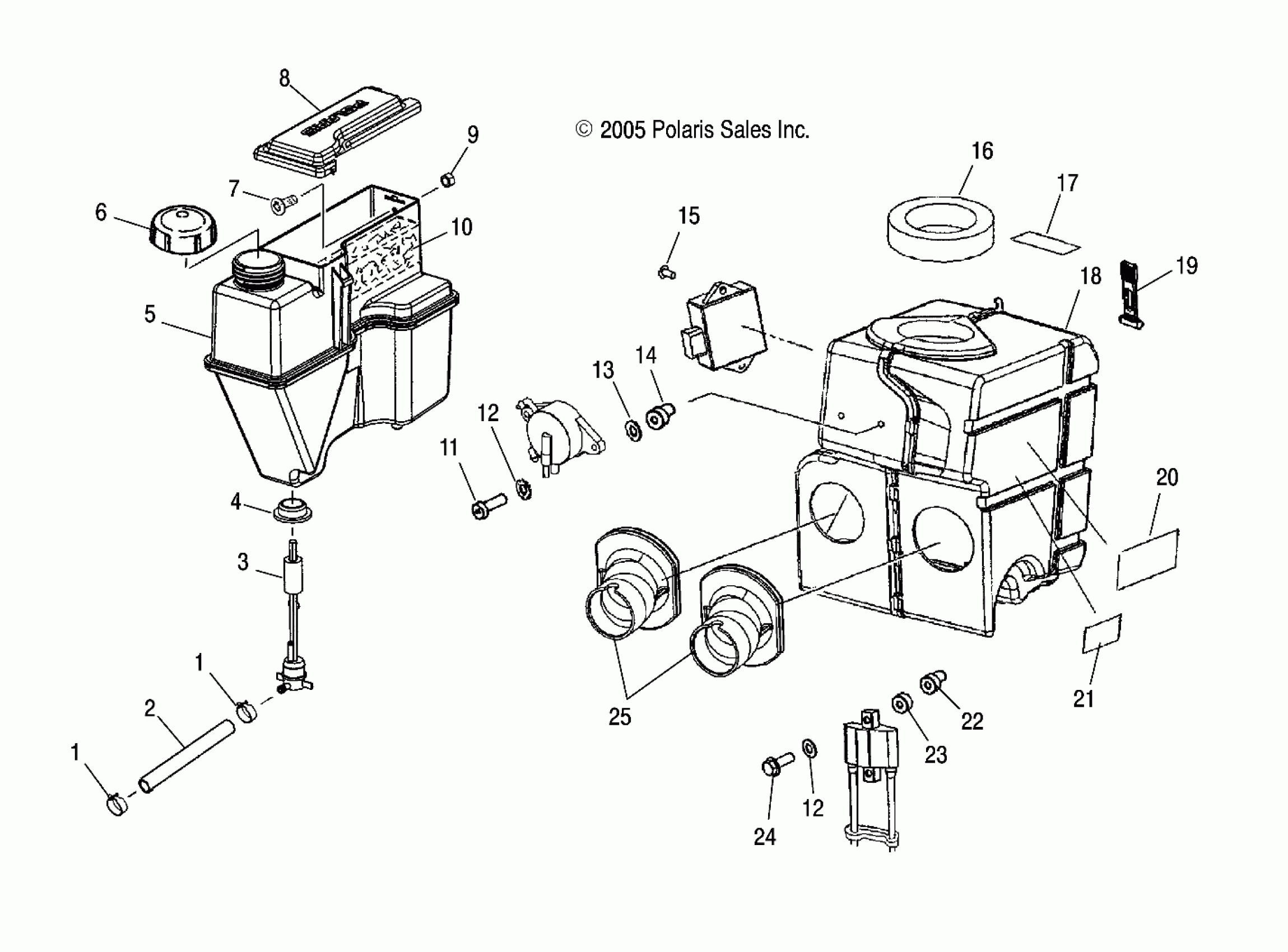

Polaris 340 EDGE LX - S07ND3AS OIL TANK/AIR BOX - S07ND3AS (4997199719C01) Diagram

#

Description
Price

1

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

1

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

2

Line, Fuel

8450003-1525

Unavailable

3

Fitting, Oil Sender

4010550

$60.70

4

Grommet, Oil Sender

7052305

$4.84

5

Asm., Tank, Oil w/Sending Unit [Incl. 3,4,8]

1253396

Unavailable

6

Cap, Oil

1240094

$36.41

7

Screw

7512297

$5.59

8

Cover, Tool Box

5434089

$27.19

9

Nut, Nylok

7542122

$1.49

10

Foam

5812209

Unavailable

11

Screw

7512222

$2.39

12

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

12

WASHER-1/4X1/2X.025 EXT TTH-Y

7552604

$1.59

13

WSHR-FL-.312X.734X.065-Y

7555843

$1.59

14

Nut, Well

7541923

$5.59

15

Screw

7512095

$4.79

16

Foam

5811882

$20.22

17

Decal, Caution

7075351

Unavailable

18

Asm., Air Silencer [Incl. Decals]

1240235

$99.19

19

STRAP-AIRBOX TOP

5433150

$24.27

20

Decal, Belt Removal

7171037

Unavailable

21

Decal, Greasing

7073426

$7.27

22

Nut, Well

7547103

$8.79

23

Washer, Nylon

7555932

$2.39

24

Screw

7517610

$1.59

25

Boot, Carburetor

5412186

Unavailable
