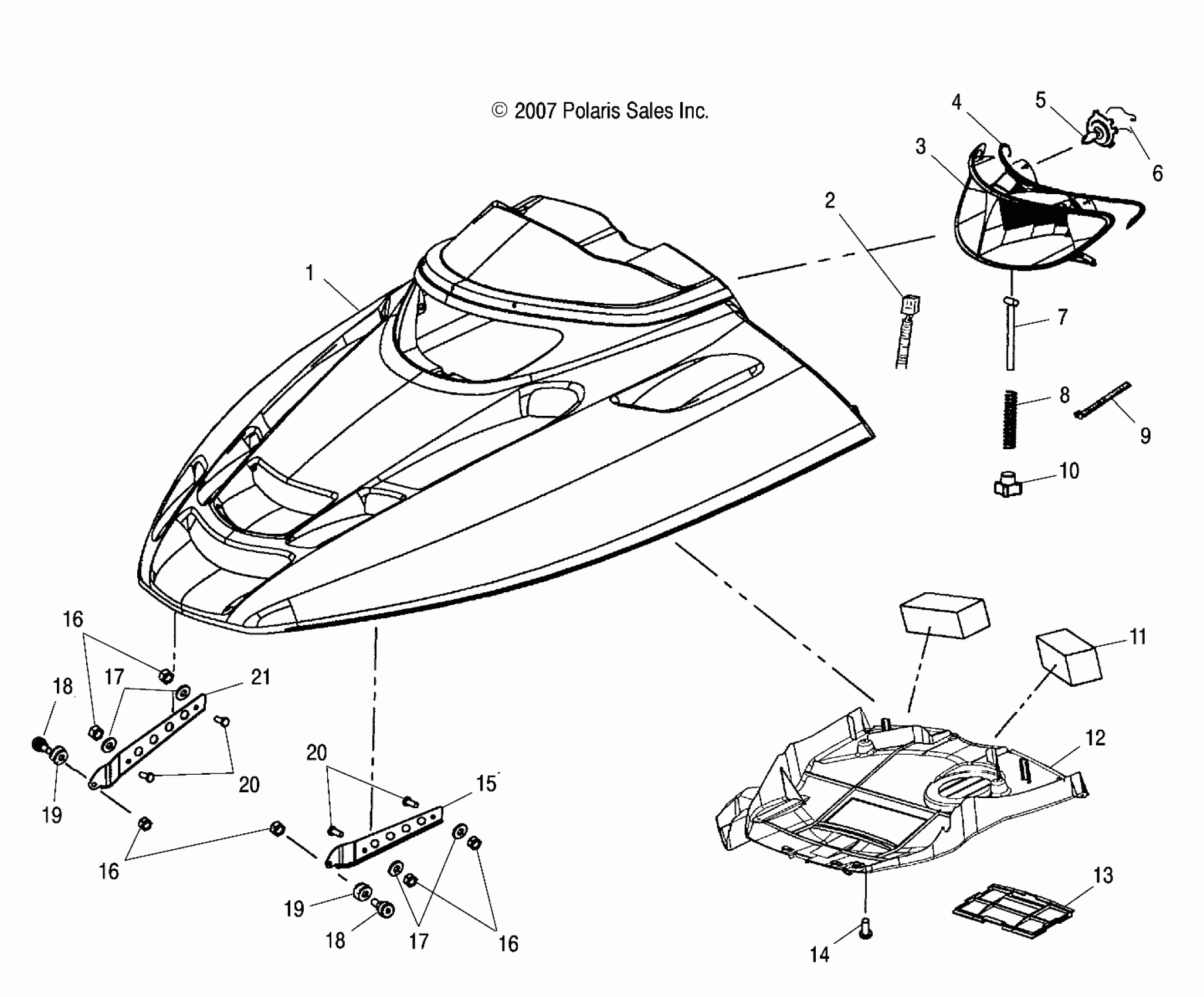

Polaris 340 EDGE LX - S07ND3AS HOOD/HEADLIGHT - S07ND3AS (49SNOWHOODHEADLIGHT340LX) Diagram

#

Description
Price

1

Asm., Hood, Super Sonic Blue [Incl. Foam and Foil]

2632727-499

$654.76

2

Harness, Headlight

2461015

$66.39

3

Asm. Headlamp [Incl. Bulbs]

2410132

Unavailable

4

Seal, Headlight

5812450

$44.99

5

BULB, HEADLIGHT

2870448

$24.99

6

Retainer, Headlamp Bulb

4032063

Unavailable

7

Bolt, Adjust Tee

7517872

Unavailable

8

Spring, Headlight Adjust

7041954

$3.22

9

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

10

KNOB-HEADLIGHT,ADJUST,LOCKINGB

7080887

$4.84

11

Foam, Prefilter

5811793

$24.27

12

Foil

5811948

Unavailable

12

Asm, Plenum w/Foil

2632491

$64.75

12

Foil

5812324

Unavailable

13

COVER, HEADLIGHT ACCESS

5433660

$24.27

14

SCREW

7512068

$2.39

15

Hinge, Upper, Black, LH

5243567-067

Unavailable

16

Nut, Nylok

7542122

$1.49

16

Nut, Nylok

7542122

$1.49

16

Nut, Nylok

7542122

$1.49

17

Washer, Flat

7558301

$1.49

17

Washer, Flat

7558301

$1.49

18

Bolt

7512113

$3.99

18

Bolt

7512113

$3.99

19

Spacer

5332403

$4.84

19

Spacer

5332403

$4.84

20

BOLT

7512240

$3.99

20

BOLT

7512240

$3.99

21

Hinge, Upper, Black, RH

5243568-067

Unavailable
