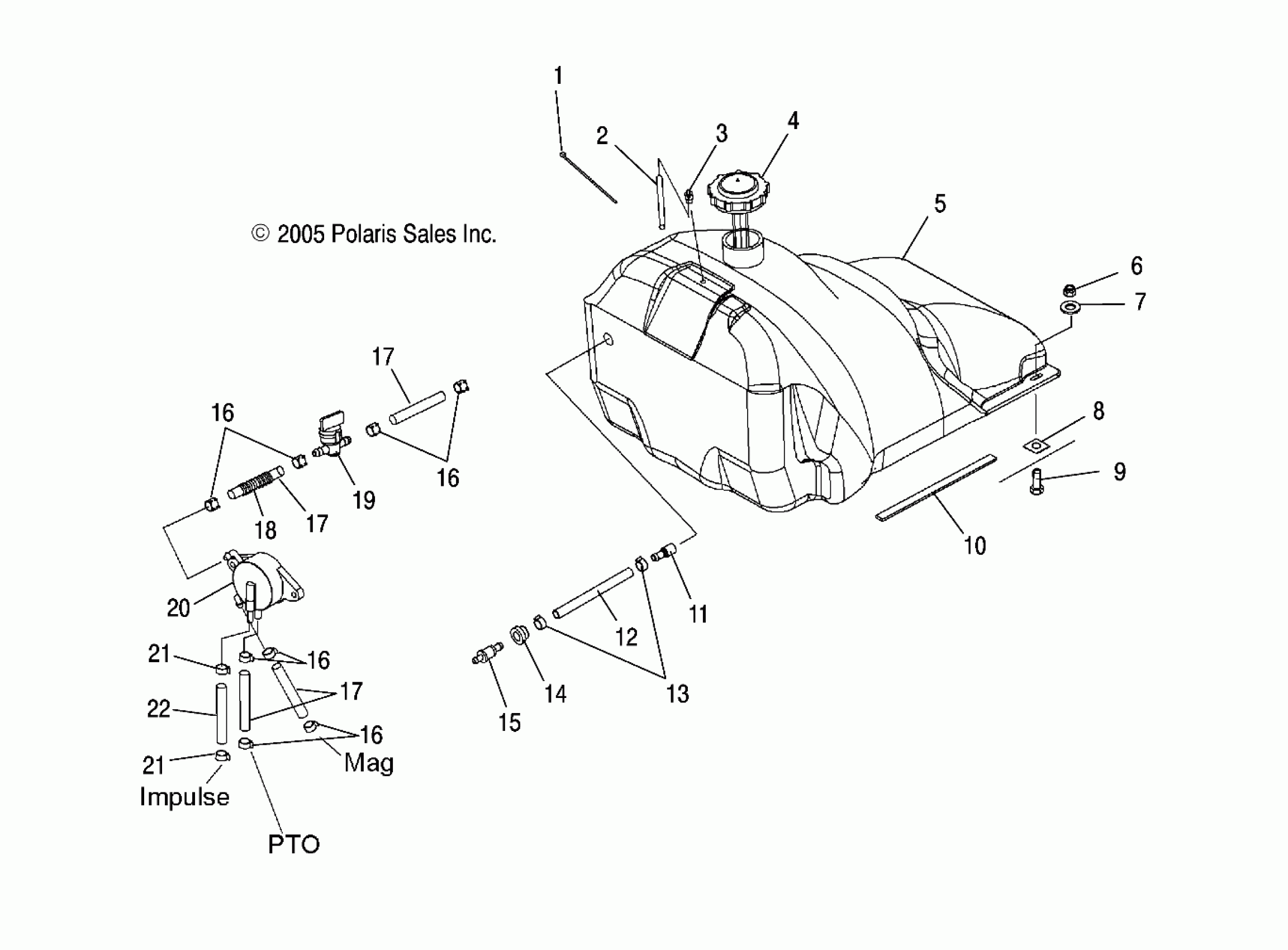

Polaris 340 EDGE LX - S07ND3AS FUEL SYSTEM - S07ND3AS (4997199719A05) Diagram

#

Description
Price

1

CABLE TIE, RELEASABLE

7080804

$3.22

2

LINE, FUEL

8450061-600

Unavailable

3

Fitting, 90 Degree

7052095

$4.79

4

Cap w/Gauge, Fuel

2520323

Unavailable

4

Gasket

5810512

$9.11

5

Asm., Fuel Tank [Incl. 3,11-15]

2520467

$234.99

6

Nut, Nylok

7542122

$1.49

7

WASHER, FLAT

7555960

$3.99

8

Nut, Speed

7670021

$6.99

9

BOLT, CARRIAGE

7512193

$2.39

10

FOAM-SEAL,REAR COOLER

5810947

$4.03

11

Pickup, Fuel, w/Filter

7052301

$12.94

12

LINE, FUEL

8350019-600

Unavailable

13

RING, COMPRESSION

7080402

$1.60

14

Grommet

5435941

$7.60

15

Fitting, Straight

7052375

Unavailable

16

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

16

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

16

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

16

CLAMP-HOSE, (LARGE GREEN)

7080307

$1.49

17

Line, Fuel

8350018-600

Unavailable

17

Line, Fuel

8350018-600

Unavailable

17

Line, Fuel

8350018-600

Unavailable

18

Conduit, Convoluted

4010051-30

Unavailable

19

VALVE, FUEL

7052248

$24.27

20

Asm., Fuel Pump

3089751

Unavailable

21

HOSE CLAMP, RED

7080003

$1.49

21

HOSE CLAMP, RED

7080003

$1.49

22

Line, Fuel

8450040-600

Unavailable
