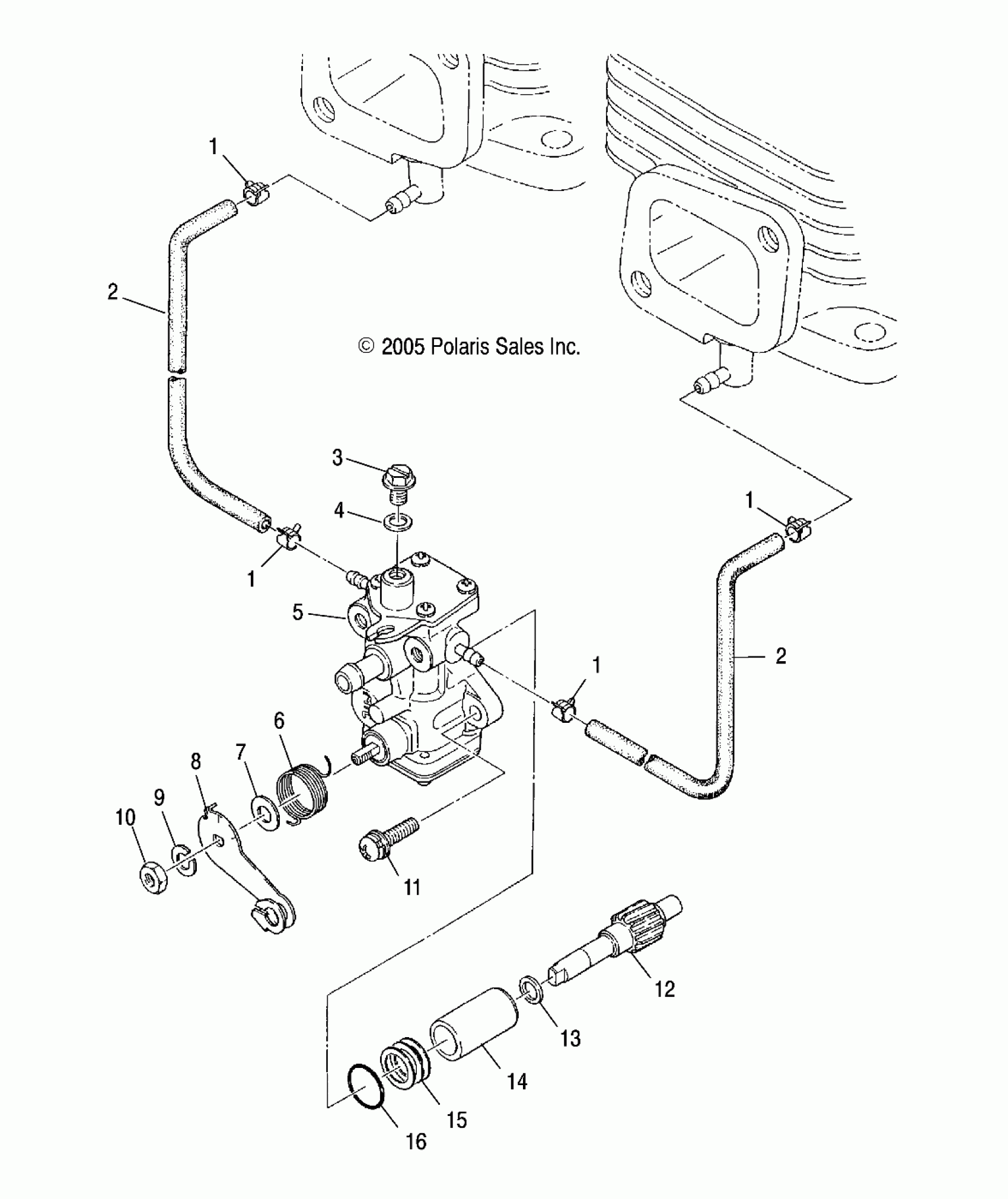

Polaris 340 EDGE LX - S07ND3AS ENGINE, OIL PUMP - S07ND3AS (4997199719C08) Diagram

#

Description
Price

1

Clamp, Hose

3083141

$1.49

1

Clamp, Hose

3083141

$1.49

1

Clamp, Hose

3083141

$1.49

1

Clamp, Hose

3083141

$1.49

2

Pipe, Vinyl

3084607

Unavailable

2

Pipe, Vinyl

3084607

Unavailable

3

Screw, Air Vent

3083125

Unavailable

4

Packing

3083126

$4.03

5

Asm., Oil Pump [Incl. 3-10,16]

3089468

$219.03

6

Set, Spring Lever

3089470

$24.79

7

COLLAR, CAM SHAFT

3083445

$2.39

8

Lever, Control

3089469

$33.65

9

Washer, Spring

3083121

$299.99

10

Nut

3083120

$3.19

11

Asm., Screw and Washer

3083783

$2.39

12

Gear, Small

3083600

Unavailable

13

SPACER

3083130

$1.59

14

Bushing

3083599

$22.39

15

SPACER 3, .6MM

3083673

Unavailable

15

SPACER 2, .3MM

3083672

Unavailable

15

SPACER 1, .15MM

3083671

Unavailable

16

O-Ring

3083127

Unavailable
