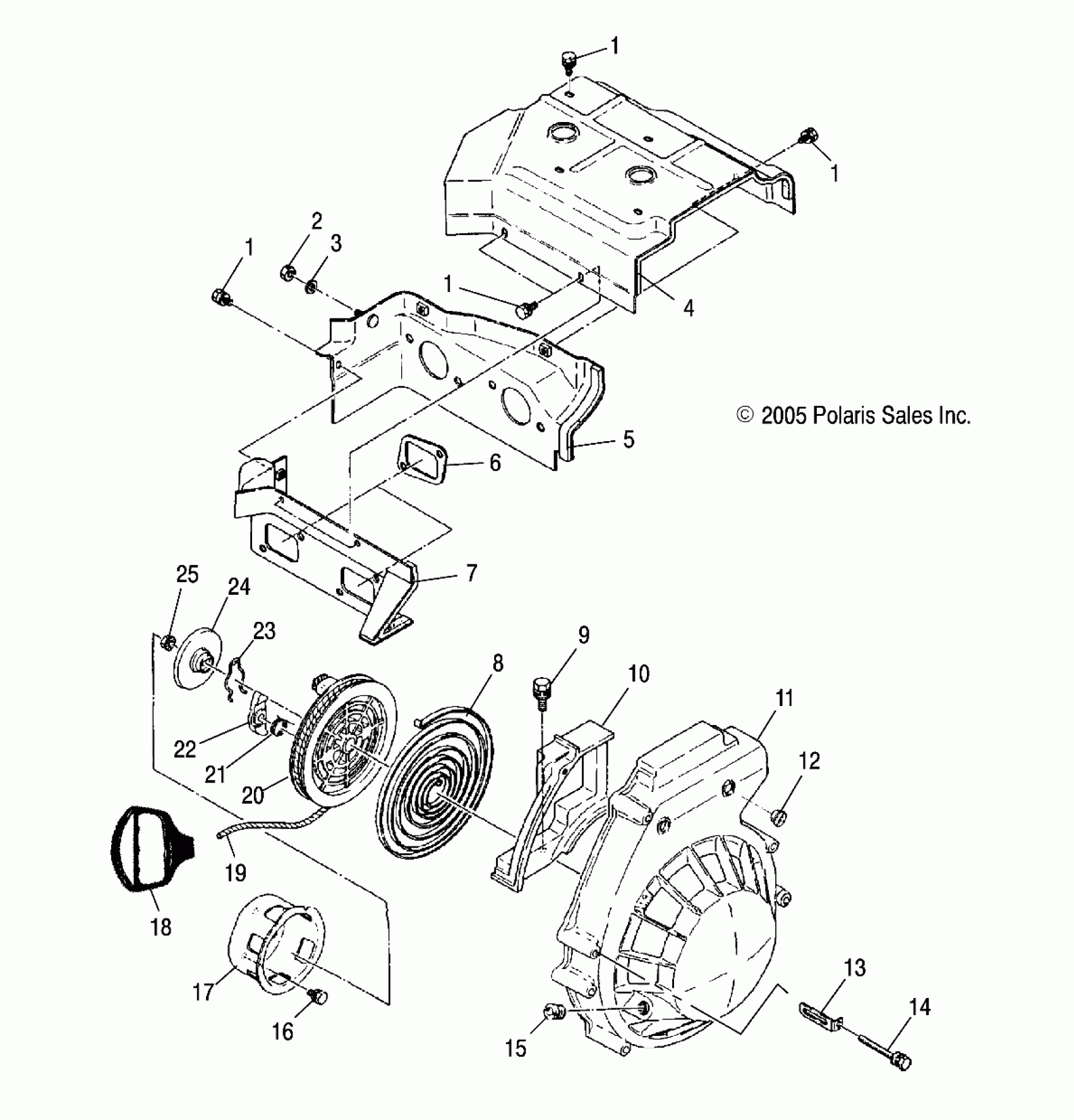

Polaris 340 EDGE LX - S07ND3AS ENGINE BLOWER HOUSING and RECOIL STARTER - S07ND3AS (4997199719C06) Diagram

#

Description
Price

1

Bolt, Flange

3085359

$2.39

1

Bolt, Flange

3085359

$2.39

1

Bolt, Flange

3085359

$2.39

1

Bolt, Flange

3085359

$2.39

2

Nut

3084375

$2.99

3

Washer, Spring

3080077

$2.39

4

Asm., Cylinder Baffle No. 1

3084420

Unavailable

5

Asm., Cylinder Baffle No. 2

3089504

$79.03

6

Gasket, Intake

3085846

Unavailable

7

Asm., Cylinder Baffle No. 3 [Incl. 6]

3085847

$81.17

8

Spring, Spiral

3083376

$179.11

9

Asm., Bolt and Washer

3081663

$1.49

10

Blower Housing 2

3083591

$17.43

11

Asm., Starter Case

3083589

$148.79

11

Asm., Recoil Starter [Incl. 8,15,19-25]

3089467

Unavailable

12

Plug, Rubber

3086792

$24.27

13

Clamp

3083590

$3.99

14

Asm., Bolt and Washer

3083729

$3.49

15

Guide, Rope

3083107

Unavailable

16

Asm., Bolt and Washer

3081665

$3.19

17

Pulley, Starting

3083108

$29.52

18

Handle, Recoil, Black

5431499-070

$15.48

19

Rope, Starter [Bulk, Cut to Fit]

2870621

$34.99

20

Asm., Reel

3083377

$56.65

21

Spring, Return

3083463

$4.03

22

Ratchet

3087207

$11.99

23

Spring, Friction

3083379

$24.27

24

Plate, Friction

3083464

$28.32

25

Nut, Flange

3083381

$2.99
