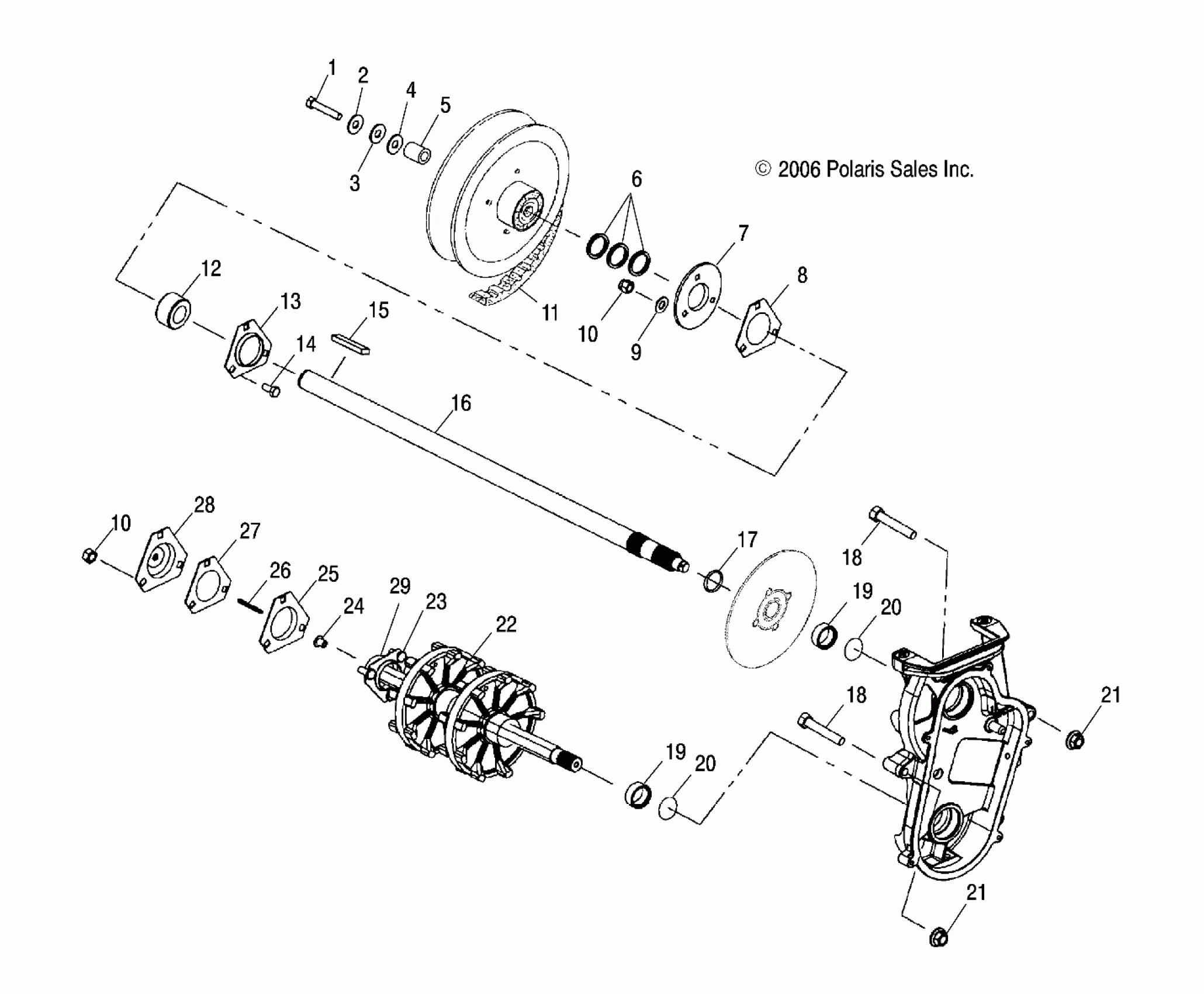

Polaris 340 EDGE LX - S07ND3AS DRIVE TRAIN - S07ND3AS (49SNOWDRIVETRAIN340LX) Diagram

#

Description
Price

1

Bolt

7517581

$1.59

2

WASHER, FLAT

7555701

$3.99

3

Washer, Flat

7555734

Unavailable

4

WASHER, FLAT

7555957

Unavailable

5

Spacer

5135620

Unavailable

6

Bushing

7556509

Unavailable

6

WASHER

7555917

$2.39

6

WASHER

7555864

Unavailable

7

Fitting, Lubrication

7080561

$4.79

7

Flange w/Zerk

5241359

$32.37

8

Gasket, Jackshaft

5811095

$2.41

9

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

10

NUT-5/16-18 NYLOK-Y

7542324

$1.49

10

NUT-5/16-18 NYLOK-Y

7542324

$1.49

11

Belt, Drive

3211078

$109.99

12

BEARING

3514448

Unavailable

13

FLANGETTE

5222751

$16.44

14

Bolt, Carriage

7512377

$4.79

15

Key

7721128

$10.39

16

Asm., Jackshaft [Incl. 12,17]

1332457

$162.84

17

RING, RETAINING

7710422

$3.99

18

Bolt, Carriage

7515428

$4.79

18

Bolt, Carriage

7515428

$4.79

19

SLEEVE, SEAL

5020588

$23.99

19

SLEEVE, SEAL

5020588

$23.99

20

O-RING

5410613

$1.99

20

O-RING

5410613

$1.99

21

Nut, Flange

7542423

$3.99

21

Nut, Flange

7542423

$3.99

22

Asm., Drive Shaft [Incl. 12,23,24]

1590340

$343.71

23

ASM., FLANGETTE W/SCREWS

1012945

$114.99

24

Bushing, Speedometer, Metal

3280019

$11.99

25

FLANGETTE, OFFSET W/HOLE

5243529

$13.75

26

Key, Speedometer, Square

3280017

$13.75

27

Gasket, Drive Adaptor

5830012

$2.41

28

Adaptor, Drive w/Zerk

3280116

$101.17

29

BEARING

3514525

$31.99
