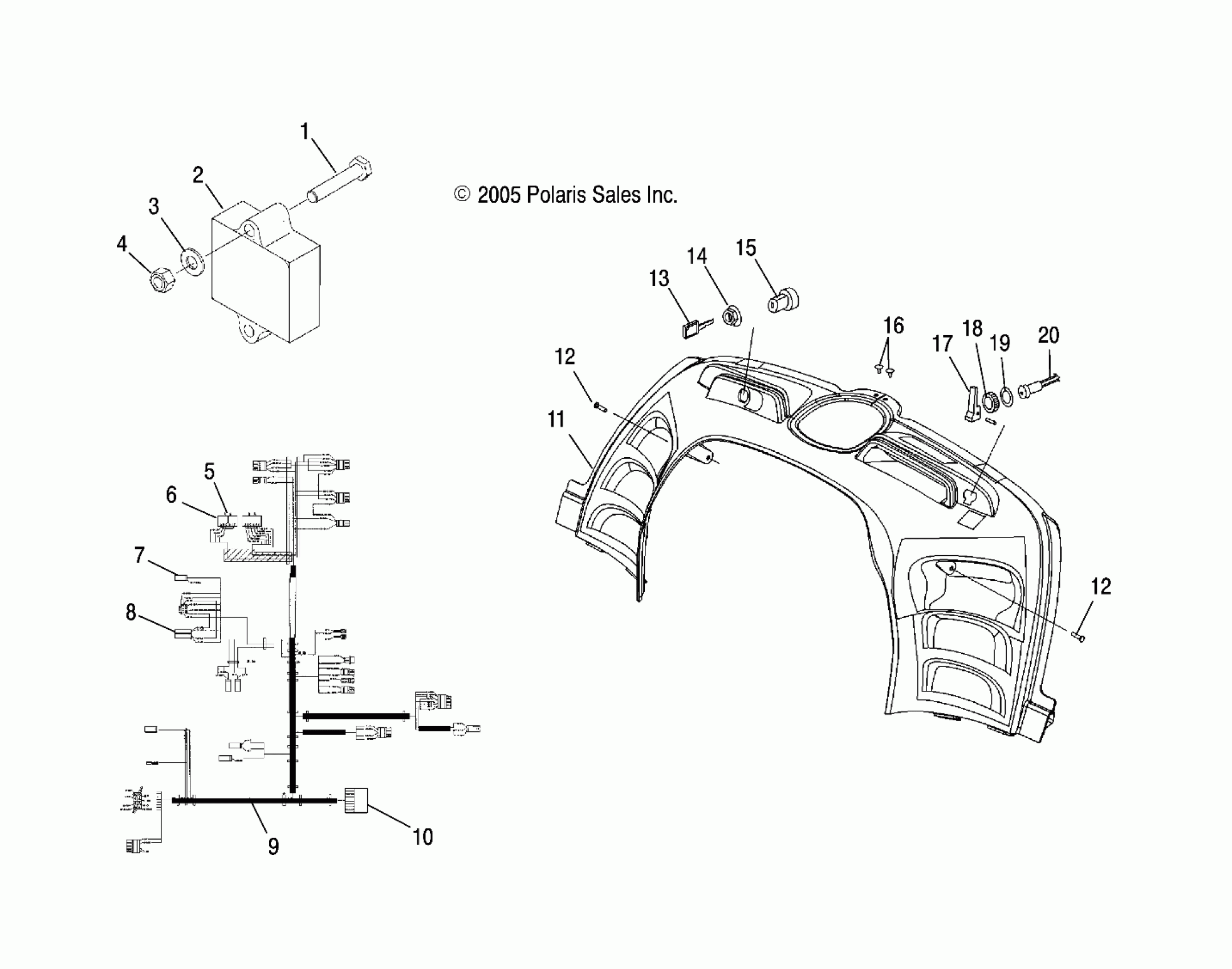

Polaris 340 EDGE LX - S07ND3AS CONSOLE - S07ND3AS (4997199719A12) Diagram

#

Description
Price

1

Screw

7517263

Unavailable

2

Regulator, AC/DC 14.3V

4010794

$116.17

3

WSHR-.194X.475X.049 ZTB

7555746

Unavailable

4

Nut, Nylok

7541925

$1.49

5

Housing, Connector

4010193

$8.79

6

Socket

4010192

Unavailable

7

Terminal, Ring

4020092

Unavailable

8

Housing, Pack

4020063

$3.19

9

Harness, Main

2461148

$257.99

10

Housing

4020057

$3.51

11

Console, Black

5434134

Unavailable

12

Screw

7515199

$1.49

12

Screw

7515199

$1.49

13

Cap w/Key NOTE: When ordering ignition key PN 5410611 be sure to specify if for an A,B,C,D, or E switch. Letter code will be labeled on underside of switch body behind console. Key dot code found o

5410611

Unavailable

14

Nut, Ignition

7547035

$8.79

15

Kit, Ignition Switch [Incl. 14]

2200358

$76.89

16

CLIP-PLASTIC DART, NYLON

7670088

$1.59

17

Kit, Choke Control [Incl. Pin]

2200188

$24.27

18

Nut

7080229

$19.99

19

Washer, Lock

7571610

$3.99

20

Cable, Choke [Incl. 18]

7081092

Unavailable
