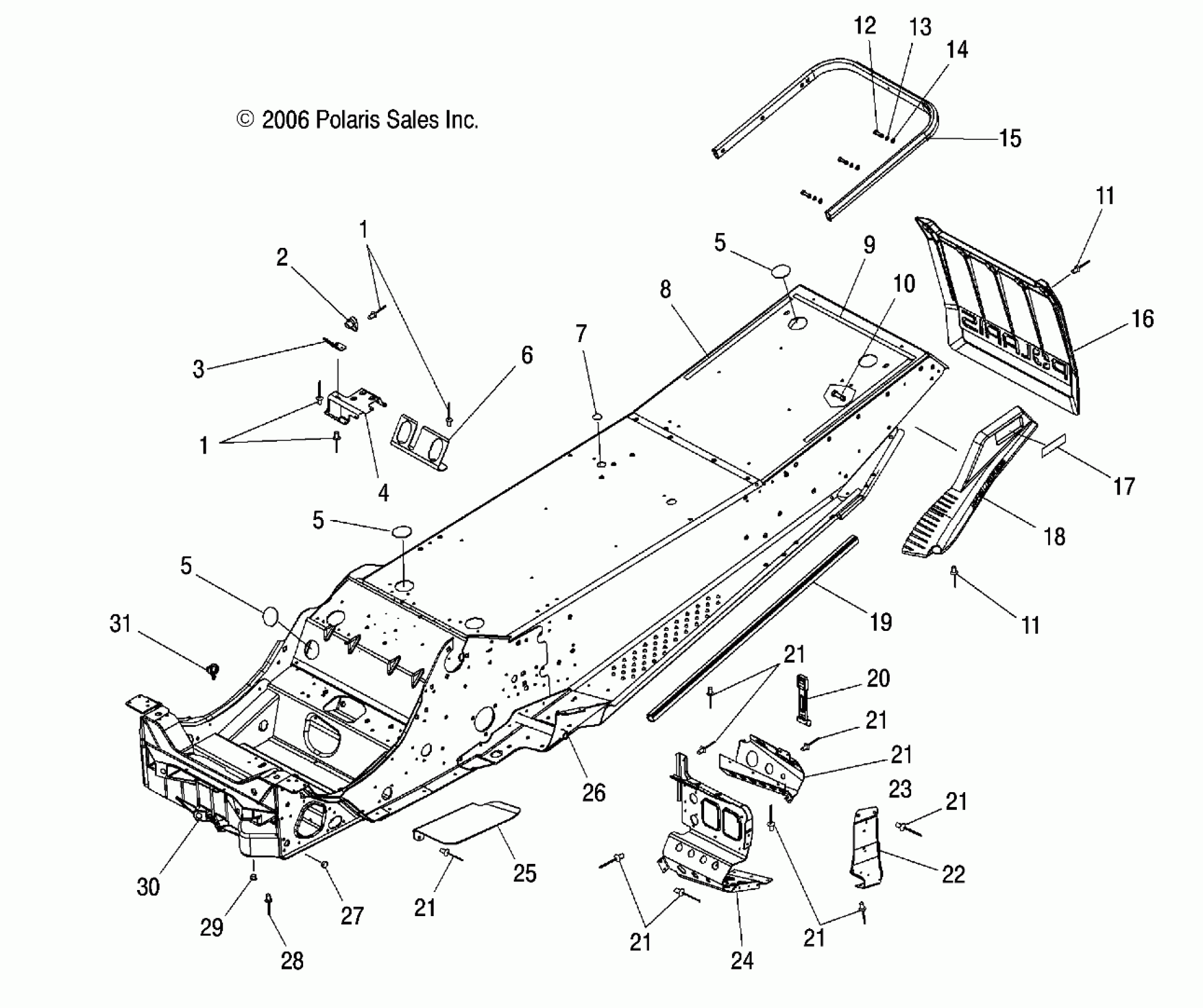

Polaris 340 EDGE LX - S07ND3AS CHASSIS - S07ND3AS (49SNOWCHASSIS340LX) Diagram

#

Description
Price

-

Asm., Chassis, Natural [Incl. 26,30]

1014086-309

$1,192.99

1

Rivet

7621432

$1.49

1

Rivet

7621432

$1.49

2

Guide, Rope

5431385

$10.51

3

Bracket, Rope Guide, Black

5222687-067

$59.99

4

Bracket, Oil Tank/Hose Support

5246330

$13.19

5

Caplug

7080934

$1.83

5

Caplug

7080934

$1.83

5

Caplug

7080934

$1.83

6

Bracket, Airbox

5246177

$18.23

7

Caplug

7080592

Unavailable

8

Gasket, Seat Base

5812290

$1.49

9

Gasket, Seat Base

5812360

$1.83

10

Screw

7517441

$2.39

11

RIVET

7621472

$1.49

11

RIVET

7621472

$1.49

12

Bolt

7512232

$1.49

13

WASHER, SPRING LOCK

7552801

$1.59

14

Washer, Flat

7558301

$1.49

15

Asm., Bumper, Rear

2632165-309

Unavailable

16

Flap, Short, Edge, Black

5433961-070

$123.99

17

ASM., REFLECTOR, RED

2670133

$5.75

18

Asm., Snow Skirt/Reflector, Black, LH

2632443-070

$64.75

18

Asm., Snow Skirt/Reflector, Black, RH

2632444-070

$55.99

19

Brace, Tunnel Roll

5245118

$23.81

20

STRAP-AIRBOX TOP

5433150

$24.27

21

RIVET-3/16-.090-.290

7661637

$1.49

21

RIVET-3/16-.090-.290

7661637

$1.49

21

RIVET-3/16-.090-.290

7661637

$1.49

21

RIVET-3/16-.090-.290

7661637

$1.49

21

RIVET-3/16-.090-.290

7661637

$1.49

21

RIVET-3/16-.090-.290

7661637

$1.49

21

RIVET-3/16-.090-.290

7661637

$1.49

22

Support, Footrest, LH

5246310

$19.83

22

Support, Footrest, RH

5246311

$32.37

23

Mount, Console, Toe Clip, LH

5245457

Unavailable

23

Mount, Console, Toe Clip, RH

5245458

Unavailable

24

Footrest, LH

5245288

Unavailable

24

Footrest, RH

5247205

Unavailable

25

Guard, Belt

5246066

Unavailable

26

Kit, Trailing Arm Mount, LH

2202059

$213.00

26

Kit, Trailing Arm Mount, RH

2202598

$124.99

27

PLUG, HOLE

7080416

$5.65

28

Rivet

7661130

$1.49

29

Plug, Hole

7081076

$3.22

30

Bulkhead, Front

5132292

$115.99

31

CLIP, ROSEBUD

4020139

$4.79
