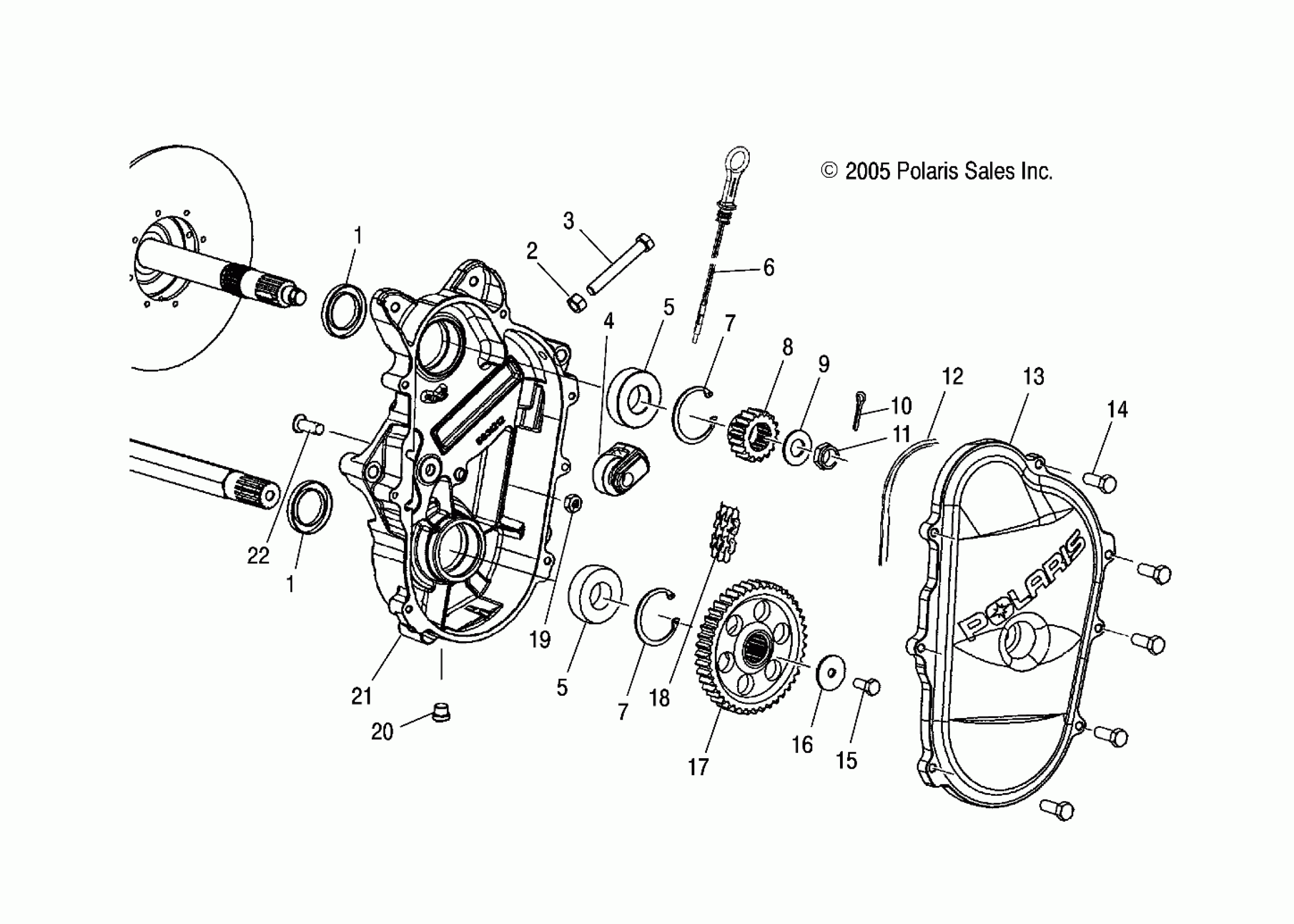

Polaris 340 EDGE LX - S07ND3AS CHAINCASE - S07ND3AS (4997239723C04) Diagram

#

Description
Price

1

SEAL-OIL

3610030

$20.22

1

SEAL-OIL

3610030

$20.22

2

NUT

7542404

$1.59

3

SCREW

7515459

$5.59

4

Asm., Chain Tightener

1341437

$71.41

5

BEARING, BALL

3514309

$15.87

5

BEARING, BALL

3514309

$15.87

6

O-RING

5410675

$1.60

6

Asm., Dipstick [Incl. O-Ring]

1332143

$54.99

7

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

7

RET.RING-TRUARC(N5000-206)-P

7718406

$6.39

8

Sprocket, 16T, 3/4W

3221107

$60.70

9

Washer, Spring

7571620

$7.19

10

Pin, Cotter

7661203

$1.49

11

Nut

7547202

$5.59

12

GASKET, CHAINCASE COVER

5812574

$29.99

13

COVER, CHAINCASE

5631354

$114.99

14

SCREW

7512242

$2.39

15

Screw

7518358

Unavailable

16

Washer, Spring

7571618

$6.39

17

SPROCKET, 41T

3222101

$40.46

18

CHAIN, 72P, 3/4W

3221110

$164.99

19

NUT-HEX-3/8-16 A ZTB NYL

7542451

$1.49

20

PLUG

7052115

$5.65

21

Chaincase

5134085

$113.32

22

Screw, Carriage

7515477

$34.99
