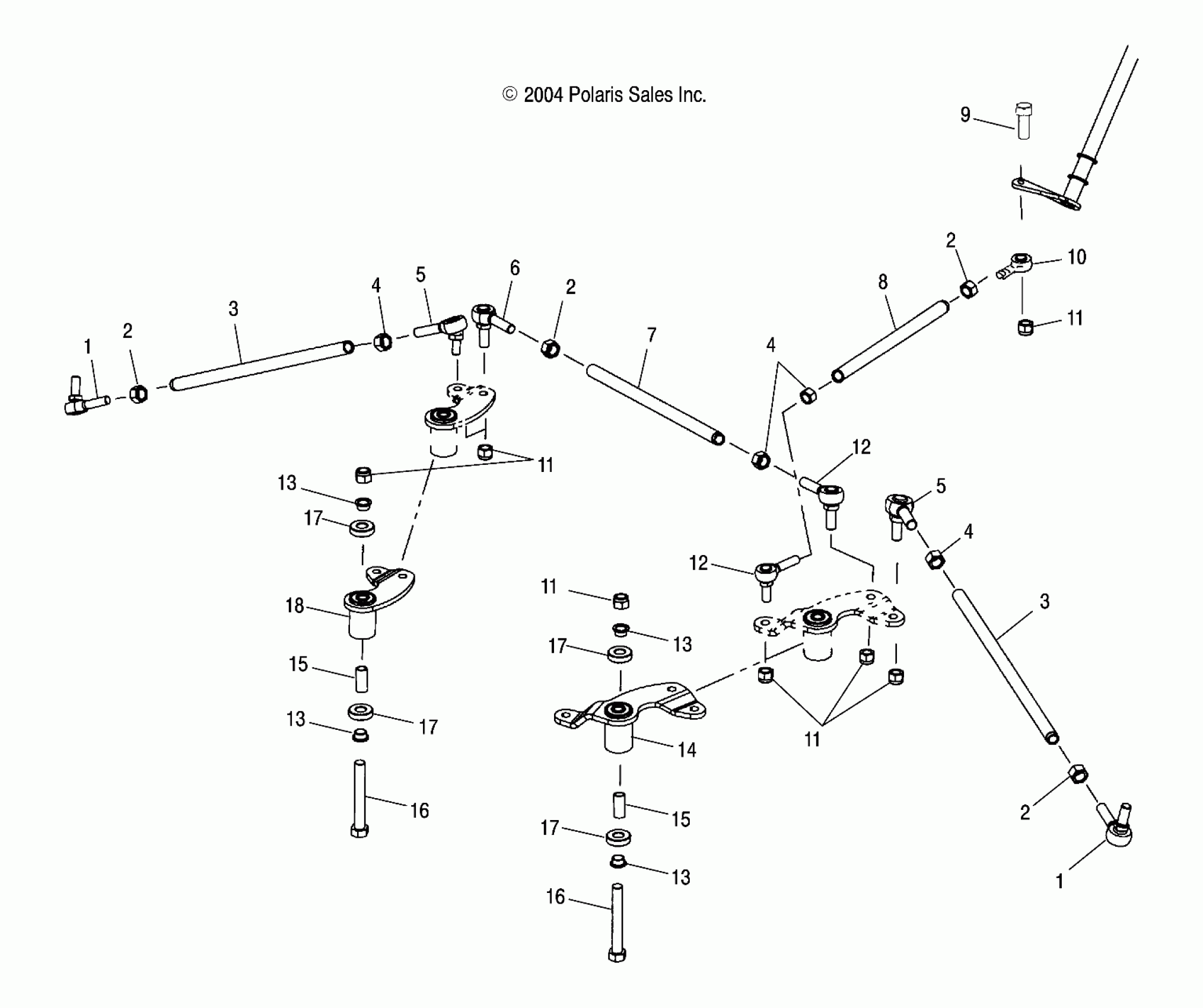

Polaris 340 CLASSIC - S05ND3AS STEERING - S05ND3AS (4992629262B02) Diagram

#

Description
Price

1

Rod End, RH

7061057

$48.56

1

Rod End, RH

7061057

$48.56

2

NUT

7542401

$2.39

2

NUT

7542401

$2.39

2

NUT

7542401

$2.39

2

NUT

7542401

$2.39

3

Tie Rod

5333949

$36.41

3

Tie Rod

5333949

$36.41

4

NUT, LH

7542424

$1.49

4

NUT, LH

7542424

$1.49

4

NUT, LH

7542424

$1.49

5

Rod End, LH

7061055

$48.56

5

Rod End, LH

7061055

$48.56

6

Rod End, RH

7061076

$48.56

7

Rod, Steering Rack

5333772

$36.41

8

Rod, Draglink

5333773

$38.71

9

Bolt

7515528

$8.79

10

ROD END, RH

7060167

$48.56

11

Nut, Nylok

7542439

$1.49

11

Nut, Nylok

7542439

$1.49

11

Nut, Nylok

7542439

$1.49

11

Nut, Nylok

7542439

$1.49

12

Rod End, LH

7061075

$48.56

12

Rod End, LH

7061075

$48.56

13

BUSHING, REDUCER

5132106

$7.99

13

BUSHING, REDUCER

5132106

$7.99

13

BUSHING, REDUCER

5132106

$7.99

13

BUSHING, REDUCER

5132106

$7.99

14

Asm., Pitman Arm [Incl. 13,15,17]

1820957

$155.99

15

Spacer, Tube

5133423

$29.99

15

Spacer, Tube

5133423

$29.99

16

Screw

7512435

$3.99

16

Screw

7512435

$3.99

17

Bearing, Ball

3514320

$15.99

17

Bearing, Ball

3514320

$15.99

17

Bearing, Ball

3514320

$15.99

17

Bearing, Ball

3514320

$15.99

18

Asm., Idler Arm [Incl. 13,15,17]

1820959

$184.99
