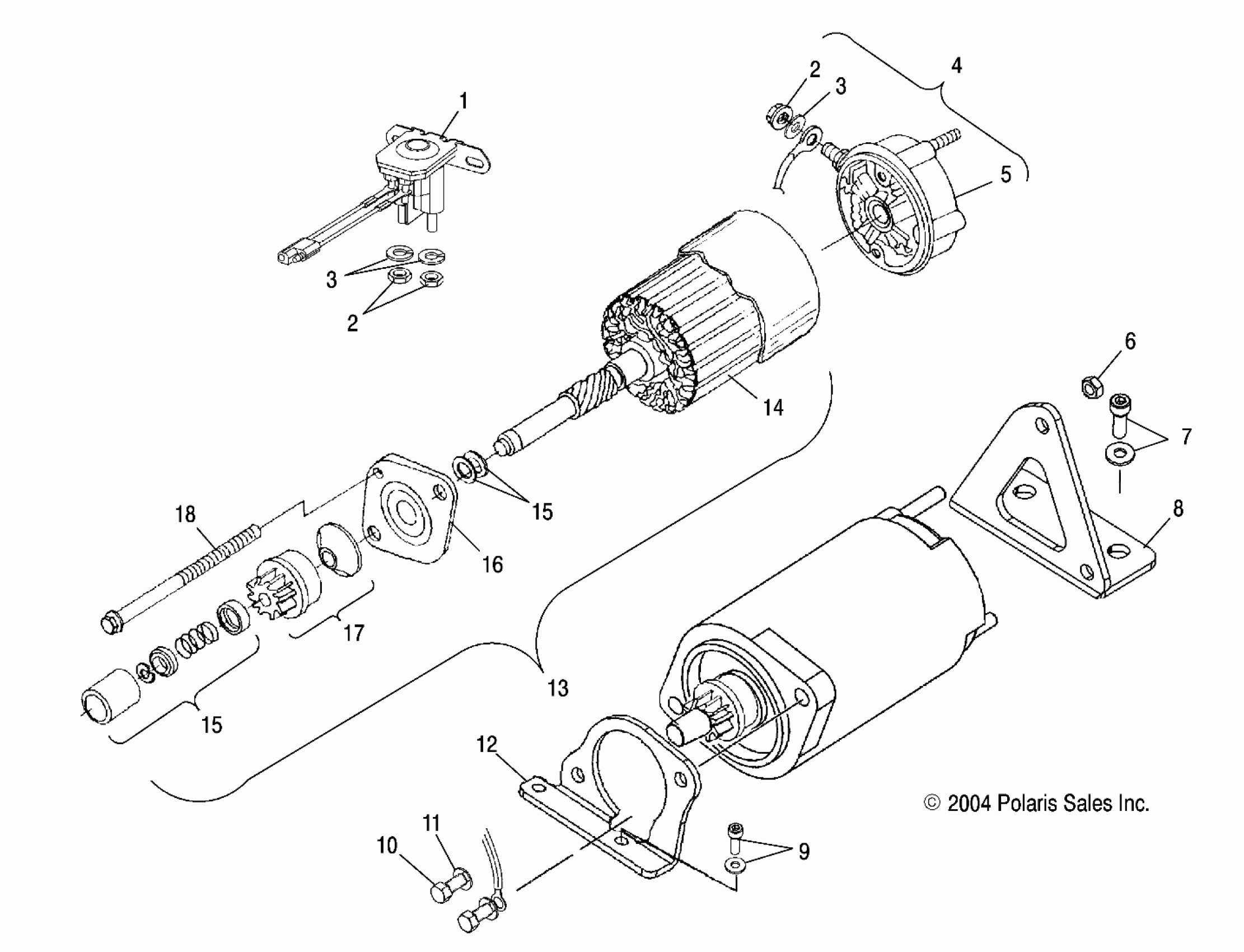

Polaris 340 CLASSIC - S05ND3AS STARTING MOTOR - S05ND3AS (4992629262C11) Diagram

#

Description
Price

1

Switch, Magnetic [Incl. 2,3]

4010930

$60.70

2

NUT

7542105

$3.99

2

NUT

7542105

$3.99

3

WASHER, SPRING LOCK

7552801

$1.59

3

WASHER, SPRING LOCK

7552801

$1.59

4

Kit, Commutator Cap [Incl. 5]

2200758

$82.39

5

Kit, Brush & Spring

2200759

$59.99

5

ASM., BRUSH & SCREW

-------

Unavailable

5

ASM., BRUSH

-------

Unavailable

5

BUSHING, INSULATION

-------

Unavailable

5

WASHER, INSULATION

-------

Unavailable

5

Nut

-------

Unavailable

6

Nut

7542153

$1.59

7

SCREW

7516815

$6.39

8

Bracket, Starter, Rear

5241786

Unavailable

9

Screw

7516730

$6.39

10

Screw

7512492

$1.49

11

Washer, Spring Lock

7552603

$1.49

12

Bracket, Starter, Front

5241316

Unavailable

13

Motor, Starter, Domestic

4170006

Unavailable

14

Kit, Armature

2200756

$169.99

15

Kit, Drive Hardware

2200755

Unavailable

15

WASHER, CURVED SPRING

-------

Unavailable

15

Washer, Thrust

-------

Unavailable

15

SPACER

-------

Unavailable

15

SPRING, ANTIDRIFT

-------

Unavailable

15

PINION, STOP

-------

Unavailable

15

RING, LOCK

-------

Unavailable

15

COVER, DUST

-------

Unavailable

15

Kit, Drive Hardware

2200755

Unavailable

15

WASHER, CURVED SPRING

-------

Unavailable

15

Washer, Thrust

-------

Unavailable

15

SPACER

-------

Unavailable

15

SPRING, ANTIDRIFT

-------

Unavailable

15

PINION, STOP

-------

Unavailable

15

RING, LOCK

-------

Unavailable

15

COVER, DUST

-------

Unavailable

16

Kit, Drive Cap

2200757

$59.99

17

Kit, Drive

2200754

Unavailable

17

PLATE, DRIVE

-------

Unavailable

17

PINION

-------

Unavailable

18

Kit, Screw

2200753

$29.99

18

BOLT, THRU

-------

Unavailable
