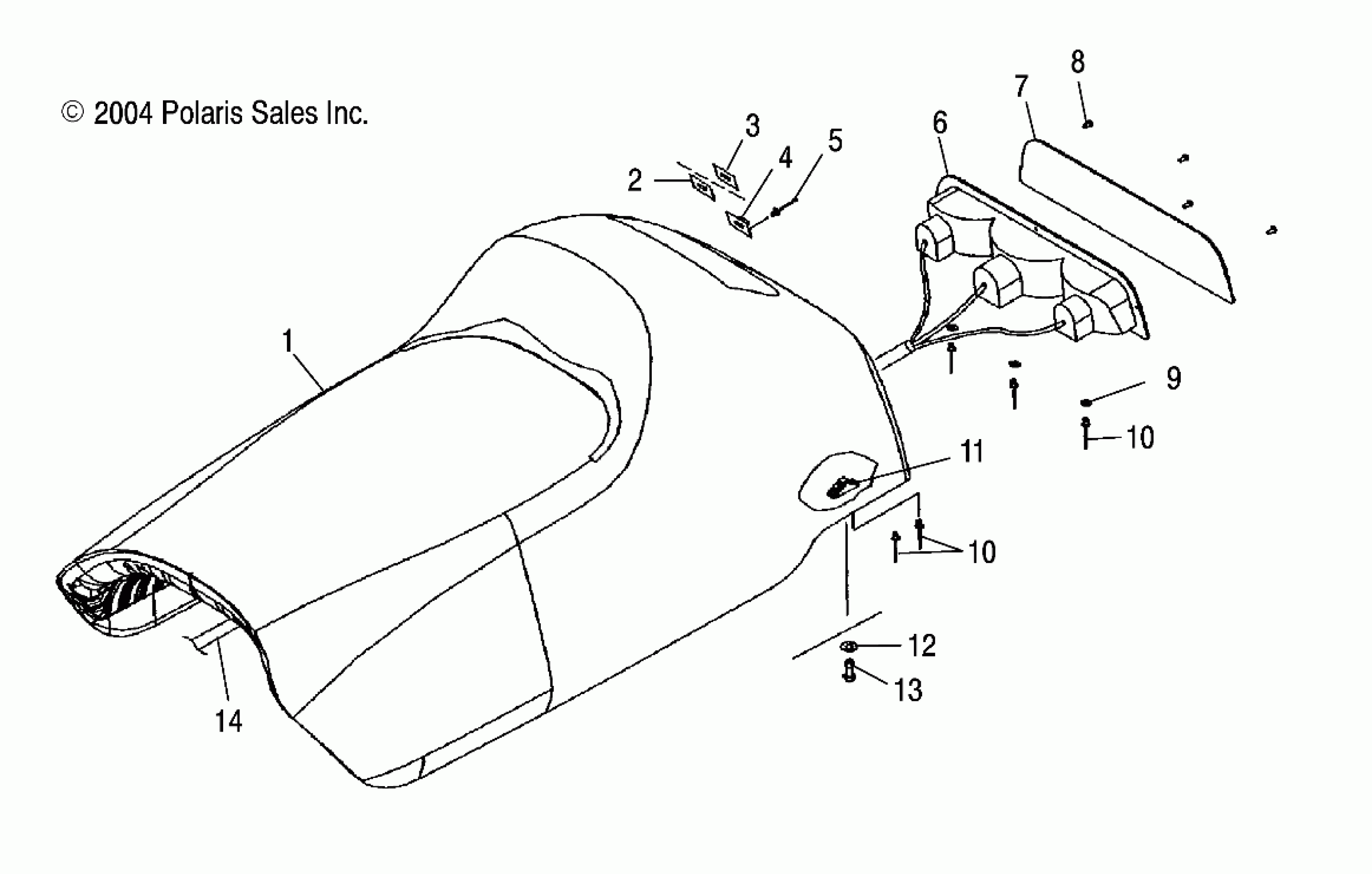

Polaris 340 CLASSIC - S05ND3AS SEAT - S05ND3AS (4992629262A04) Diagram

#

Description
Price

1

Asm., Seat [Incl. 1,6,14]

2683540

$514.99

1

Cover, Seat

2683541

Unavailable

2

Grommet, Relatch, Bottom

7080550

Unavailable

3

Grommet, Relatch, Top

7080549

Unavailable

4

Relatch w/Hole, Twist Lock

7080548

Unavailable

5

Rivet

7621337

$1.49

6

Bulb, Brakelight

4030045

Unavailable

6

Bulb, Taillight

4030024

$4.84

6

Housing, Taillight

5433341

Unavailable

7

Lens

5430423

Unavailable

8

Screw

7511840

Unavailable

9

WASHER

7555727

$1.49

10

RIVET

7621319

$1.49

10

RIVET

7621319

$1.49

11

NUT, SEAT

5631194

$4.99

12

Washer, Flat

7558301

$1.49

13

SCREW

7517219

$4.79

14

Harness, Taillight

2460399

Unavailable
