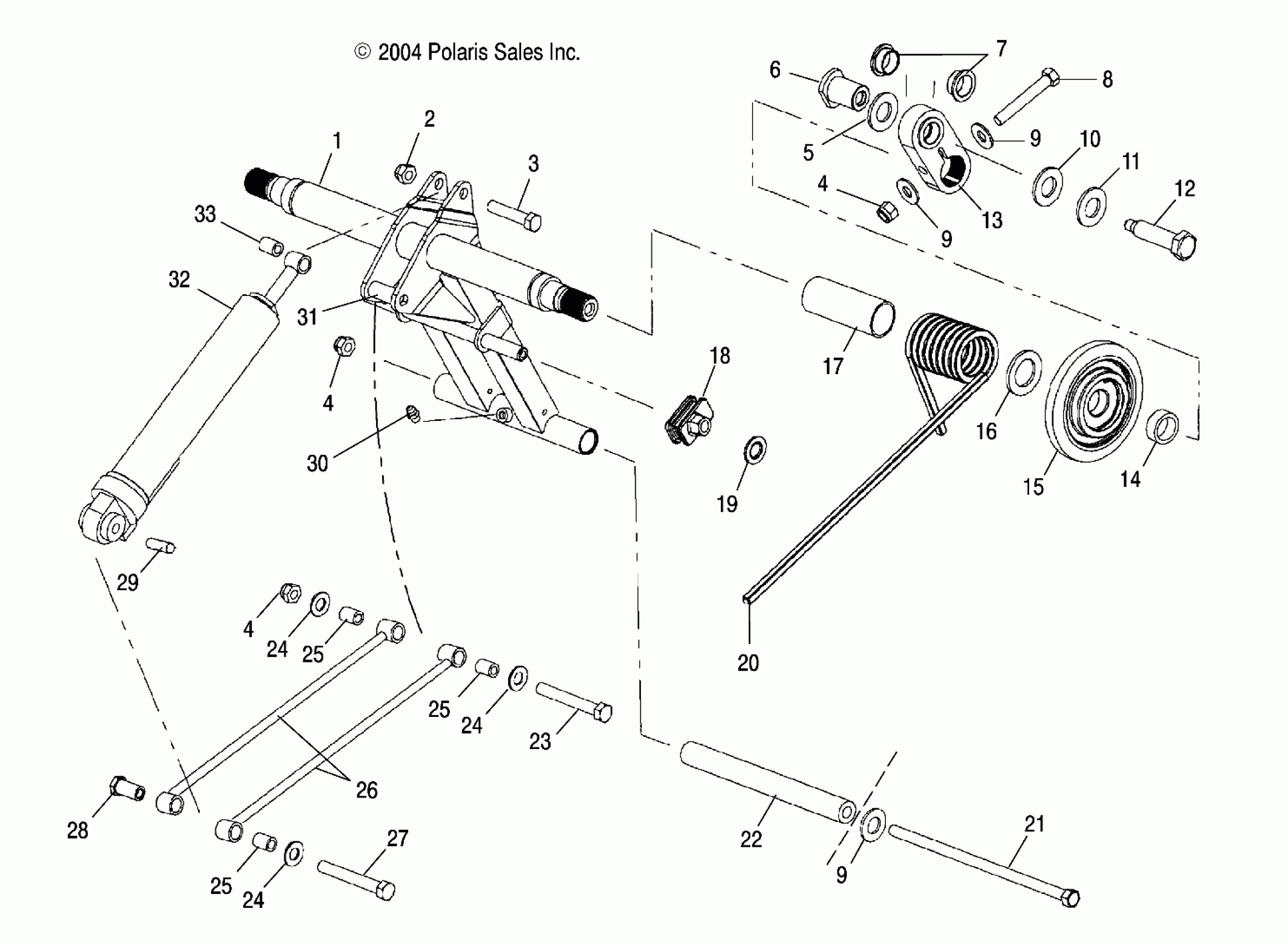

Polaris 340 CLASSIC - S05ND3AS REAR TORQUE ARM - S05ND3AS (4992629262B10) Diagram

#

Description
Price

1

Arm, Torque, Rear, Black

1541969-067

$254.99

2

Nut, FLEXLOC

7542411

$3.19

3

SCREW

7512410

Unavailable

4

Nut, Nylok

7542439

$1.49

4

Nut, Nylok

7542439

$1.49

4

Nut, Nylok

7542439

$1.49

5

Washer

7555945

$7.99

6

Shaft, Arm

5333758

Unavailable

7

BUSHING

3514331

$19.99

8

Screw

7515415

$1.49

9

Washer, Flat

7555806

$1.49

9

Washer, Flat

7555806

$1.49

9

Washer, Flat

7555806

$1.49

10

Washer, Flat

7555893

$1.49

11

Washer, Spring Lock

7552603

$1.49

12

Screw

7517435

$14.99

13

Asm., Arm [Incl. 7]

1541967

$114.99

14

Spacer

5132388

Unavailable

15

ASM., CARRIER WHEEL

1590343

$72.84

16

WASHER, THRUST

7555787

Unavailable

17

Sleeve, Torsion Spring

5431923

$6.39

18

ROLLER-SPRING,ADJ,SQUARE,X10

5432983

$9.70

19

CLIP-PUSH ON

7080394

$2.39

20

Spring, Torsion, .359/77, LH [Std]

7041629-067

Unavailable

20

Spring, Torsion, .359/77, RH [Std]

7041630-067

Unavailable

20

Spring, Torsion, .375/77, LH [Opt]

7041942-067

Unavailable

20

Spring, Torsion, .375/77, RH [Opt]

7041943-067

Unavailable

21

Screw

7517232

$19.99

22

Shaft

5333873

$11.11

23

Bolt

7515514

$7.19

24

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

24

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

24

WASHER-.390X.750X.020-WAVE-Y

7555795

$1.49

25

Bushing

5132391

$7.99

25

Bushing

5132391

$7.99

25

Bushing

5132391

$7.99

26

Rod, Shock

1541479-067

$44.51

27

Screw

7517851

$6.39

28

Bushing, Nut

5132390

$23.99

29

Sleeve

5333907

$15.99

30

FITTING-LUBRICATION 1/4-28

7080424

$4.79

31

Spacer

5333904

Unavailable

32

Shock

7041920

$214.99

33

BUSHING

5010422

$11.99
