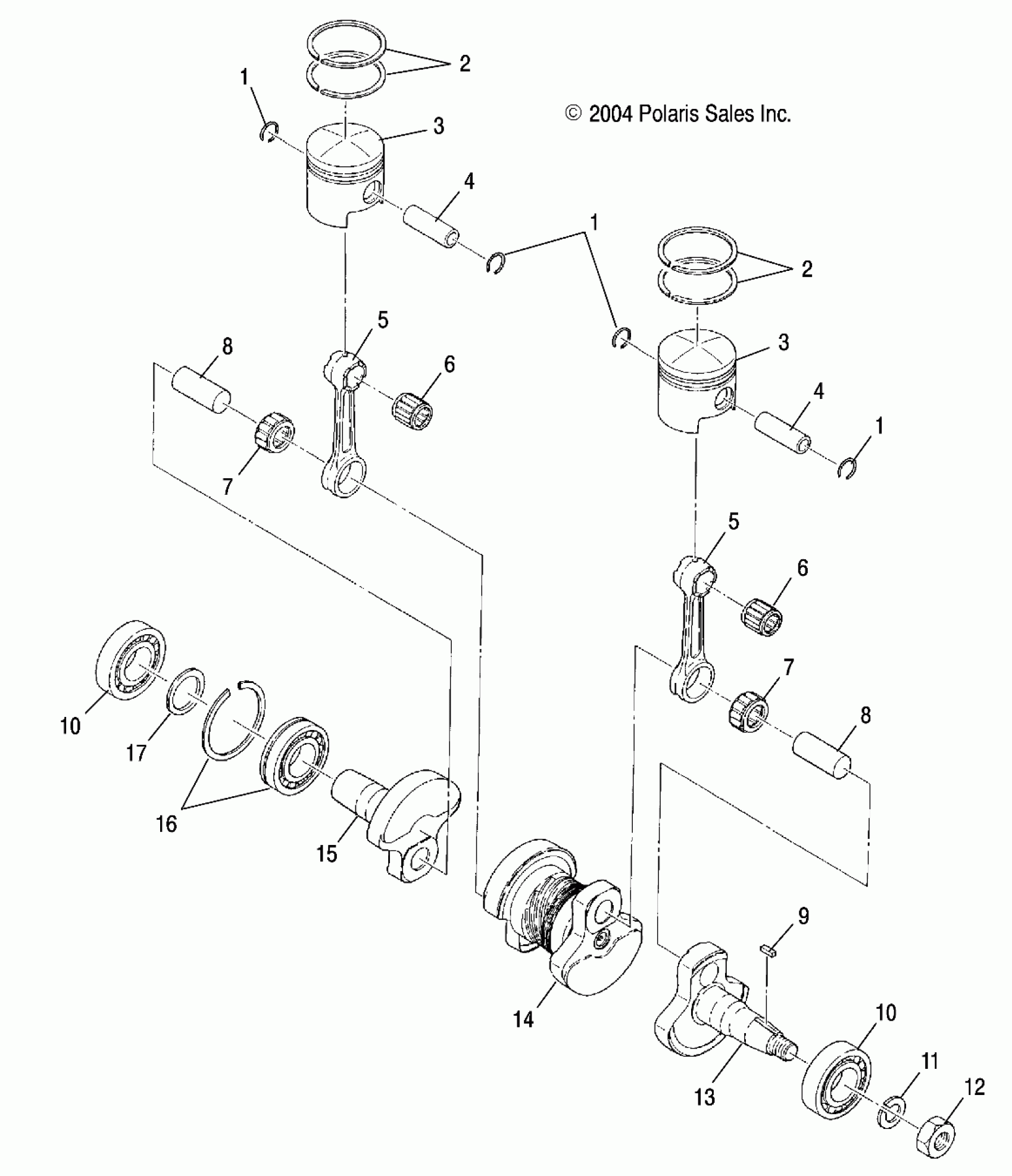

Polaris 340 CLASSIC - S05ND3AS PISTON and CRANKSHAFT - S05ND3AS (4992629262C05) Diagram

#

Description
Price

1

Clip, Piston Pin

3084456

Unavailable

1

Clip, Piston Pin

3084456

Unavailable

1

Clip, Piston Pin

3084456

Unavailable

2

Ring, Piston, Standard

3083587

Unavailable

2

Ring, Piston, .25mm OS

3084319

$33.32

2

Ring, Piston, .50mm OS

3083719

$31.41

2

Ring, Piston, Standard

3083587

Unavailable

2

Ring, Piston, .25mm OS

3084319

$33.32

2

Ring, Piston, .50mm OS

3083719

$31.41

3

Asm., Piston, Standard [Incl. 1,3]

3085840

Unavailable

3

Asm., Piston, .25mm OS [Incl. 1,3]

3085841

$152.37

3

Asm., Piston, .50mm OS [Incl. 1,3]

3085842

Unavailable

3

Asm., Piston, Standard [Incl. 1,3]

3085840

Unavailable

3

Asm., Piston, .25mm OS [Incl. 1,3]

3085841

$152.37

3

Asm., Piston, .50mm OS [Incl. 1,3]

3085842

Unavailable

4

Pin, Piston

3085021

Unavailable

4

Pin, Piston

3085021

Unavailable

5

Rod, Connecting

3083581

Unavailable

5

Rod, Connecting

3083581

Unavailable

6

Bearing, Small End

3080998

Unavailable

6

Bearing, Small End

3080998

Unavailable

7

Bearing, Large End

3083583

$23.19

7

Bearing, Large End

3083583

$23.19

8

Pin, Crank

3083582

$16.47

8

Pin, Crank

3083582

$16.47

9

KEY, WOODRUFF

3081543

$12.94

10

Bearing, Ball

3084580

$31.99

10

Bearing, Ball

3084580

$31.99

11

WASHER, SPRING

3083094

$3.17

12

NUT

3083093

$19.99

13

Asm., Crankshaft [Incl. 5,7,8,10,15-17]

3089464

$1,124.99

13

Crankshaft 1

3089465

$329.99

14

Asm., Crankshaft 2 [Incl. 8]

3083579

$400.79

15

Crankshaft 3

3089466

$156.79

16

Bearing, Ball

3084602

Unavailable

17

Spacer

3083399

$1.49
